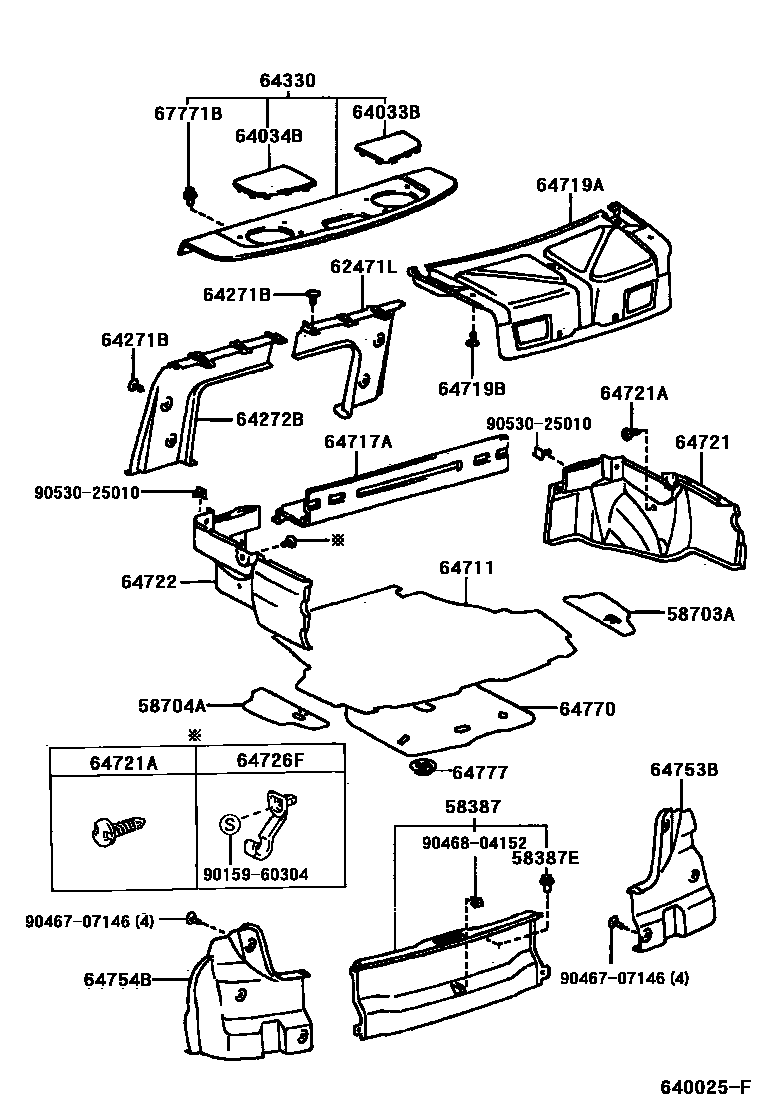

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-33030iMCV20,SXV20..JPP199608-199908

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main67771-32150iMCV20,SXV20..JPP199608-199908

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-33020iMCV20,SXV20..JPP199608-199908

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-33020iMCV20,SXV20..JPP199608-199908

62471LBOARD, ROOM PARTITION, RH

main64271-33030iMCV20,SXV20..JPP199608

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-33050-B0iMCV20,SXV20..JPP..(CE,LE)199608

BLUISH GRAY,TRIM1#

main64033-33050-E0iMCV20,SXV20..JPP..(CE,LE)199608

OAK,TRIM4#

main64033-33050-G0iMCV20,SXV20..JPP..(CE,LE)199608

DK.SAGE,TRIM6#

main64033-33060-B0iMCV20,SXV20..JPP..LE199608-199908

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main64033-33060-B0iMCV20..JPP..XLE..CND199708-199908

BLUISH GRAY,TRIM1#

main64033-33060-E0iMCV20..JPP..XLE..CND199708-199908

OAK,TRIM4#

main64033-33060-E0iMCV20..JPP..USA;SXV20..JPP..(LE,XLE)199608-199908

W(LEATHER SEAT),OAK,TRIM4#

main64033-33060-G0iMCV20,SXV20..JPP..XLE199608-199908

DK.SAGE,TRIM6#

main64033-AA030-B0iMCV20,SXV20..JPP..(LE,XLE)199908

MARK = JBL,BLUISH GRAY,TRIM1#

main64033-AA030-E0iMCV20,SXV20..JPP..(LE,XLE)199908

MARK = JBL,OAK,TRIM4#

main64033-AA030-G0iMCV20,SXV20..JPP..(LE,XLE)199908

MARK = JBL,DK.SAGE,TRIM6#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-33030-B0iMCV20,SXV20..JPP..(CE,LE)199608

BLUISH GRAY,TRIM1#

main64034-33030-E0iMCV20,SXV20..JPP..(CE,LE)199608

OAK,TRIM4#

main64034-33030-G0iMCV20,SXV20..JPP..(CE,LE)199608

DK.SAGE,TRIM6#

main64034-33050-B0iMCV20..JPP..USA;SXV20..JPP..(LE,XLE)199608-199908

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main64034-33050-B0iMCV20..JPP..XLE..CND199708-199908

BLUISH GRAY,TRIM1#

main64034-33050-E0iMCV20..JPP..XLE..CND199708-199908

OAK,TRIM4#

main64034-33050-E0iMCV20..JPP..USA;SXV20..JPP..(LE,XLE)199608-199908

W(LEATHER SEAT),OAK,TRIM4#

main64034-33050-G0iMCV20,SXV20..JPP..XLE199608-199908

DK.SAGE,TRIM6#

main64034-AA030-B0iMCV20,SXV20..JPP..(LE,XLE)199908

MARK = JBL,BLUISH GRAY,TRIM1#

main64034-AA030-E0iMCV20,SXV20..JPP..(LE,XLE)199908

MARK = JBL,OAK,TRIM4#

main64034-AA030-G0iMCV20,SXV20..JPP..(LE,XLE)199908

MARK = JBL,DK.SAGE,TRIM6#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-07146iMCV20,SXV20..JPP199608-200003

main90467-08186iMCV20,SXV20..JPP200003

64272BBOARD, ROOM PARTITION, LH

main64272-33010iMCV20,SXV20..JPP199608

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-33160-B0iMCV20,SXV20..JPP..LE199608-199908

BLUISH GRAY,TRIM1#

main64330-33160-E0iMCV20,SXV20..JPP..LE199608-199908

OAK,TRIM4#

main64330-33160-G0iMCV20,SXV20..JPP..LE199608-199908

DARK SAGE,TRIM6#

main64330-33170-B0iSXV20..JPP;MCV20..JPP..USA199608-199908

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main64330-33170-B0iMCV20..JPP..CND199708-199802

BLUISH GRAY,TRIM1#

main64330-33170-E0iSXV20..JPP;MCV20..JPP..USA199608-199908

W(LEATHER SEAT),OAK,TRIM4#

main64330-33170-E0iMCV20..JPP..CND199708-199802

OAK,TRIM4#

main64330-33170-G0iMCV20..JPP..CND199708-199802

DARK SAGE,TRIM6#

main64330-33170-G0iMCV20,SXV20..JPP..XLE..USA199608-199908

W(LEATHER SEAT),DARK SAGE,TRIM6#

main64330-33240-B0iMCV20,SXV20..JPP..(CE,LE)..CND199802-199908

BLUISH GRAY,TRIM1#

main64330-33240-E0iMCV20,SXV20..JPP..(CE,LE)..CND199802-199908

OAK,TRIM4#

main64330-33240-G0iMCV20,SXV20..JPP..(CE,LE)..CND199802-199908

DARK SAGE,TRIM6#

main64330-33250-B0iMCV20,SXV20..JPP..(LE,XLE)..CND199802-199908

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main64330-33250-E0iMCV20,SXV20..JPP..(LE,XLE)..CND199802-199908

W(LEATHER SEAT),OAK,TRIM4#

main64330-33250-G0iMCV20..JPP..XLE..CND199802-199908

W(LEATHER SEAT),DARK SAGE,TRIM6#

main64330-33260-E0iSXV23..JPP199908-200008

OAK,TRIM4#

main64330-33261-E0iSXV23..JPP200008

OAK,TRIM4#

main64330-33290-B0iMCV20,SXV20..JPP..(LE,XLE)199908

MARK = JBL,BLUISH GRAY,TRIM1#

main64330-33290-E0iMCV20,SXV20..JPP..(LE,XLE)199908

MARK = JBL,OAK,TRIM4#

main64330-33290-G0iMCV20,SXV20..JPP..(LE,XLE)199908

MARK = JBL,DARK SAGE,TRIM6#

main64330-33300-B0iMCV20,SXV20..JPP..(CE,LE)199908

BLUISH GRAY,TRIM1#

main64330-33300-E0iMCV20,SXV20..JPP..(CE,LE)199908

OAK,TRIM4#

main64330-33300-G0iMCV20,SXV20..JPP..(CE,LE)199908

DARK SAGE,TRIM6#

main64330-33310-B0iMCV20,SXV20..JPP..LE199908

W(LEATHER SEAT),BLUISH GRAY,TRIM1#

main64330-33310-E0iMCV20,SXV20..JPP..LE199908

W(LEATHER SEAT),OAK,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-33100-C0iMCV20,SXV20..JPP199608-199908

BLACK,TRIM1#,4#,6#

main64711-33100-C0iMCV20,SXV20..JPP199908

BLACK,TRIM1#,4#,6#,(J)

main64711-AA010-C0iMCV20,SXV20..JPP199908

BLACK,TRIM1#,4#,6#,(L)

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-33030-C0iMCV20,SXV20..JPP199608

BLACK,TRIM1#,4#,6#

main64717-33040-C0iSXV23..JPP199908

BLACK,TRIM4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-33010-C0iMCV20,SXV20..JPP199608-200008

BLACK,TRIM1#,4#,6#

main64719-33010-C0iSXV23..JPP199908-200008

BLACK,TRIM4#

main64719-33020-C0iSXV23..JPP200008

BLACK,TRIM1#,4#,6#

main64719-33020-C0iSXV23..JPP200008

BLACK,TRIM4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-06175iMCV20,SXV20..JPP199608-200008

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-33040-C0iMCV20,SXV20..JPP199608-199908

BLACK,TRIM1#,4#,6#

main64721-33060-C0iSXV23..JPP199908

BLACK,TRIM4#

main64721-33070-C0iMCV20,SXV20..JPP199908

BLACK,TRIM1#,4#,6#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186iMCV20,SXV20..JPP199608-199907

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-33050-C0iMCV20,SXV20..JPP199608-199908

BLACK,TRIM1#,4#,6#

main64722-33070-C0iSXV23..JPP199908

BLACK,TRIM4#

main64722-33080-C0iMCV20,SXV20..JPP199908

BLACK,TRIM1#,4#,6#

64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2

main64726-33040iMCV20,SXV20..JPP199907-199908

main64726-33041iMCV20,SXV20..JPP199908

64753BPLATE, REAR FLOOR FINISH SIDE, RH

main64753-33010iMCV20,SXV20..JPP199608-199908

64754BPLATE, REAR FLOOR FINISH SIDE, LH

main64754-33010iMCV20,SXV20..JPP199608-199908

64770COVER ASSY, SPARE WHEEL

main64770-33040iMCV20,SXV20..JPP199608

main64770-33050-C0iSXV23..JPP199908

BLACK,TRIM4#

64777CLAMP, SPARE WHEEL COVER

main64777-32030iMCV20,SXV20..JPP199608

67771BRETAINER, PACKAGE TRAY TRIM

main67771-16080iMCV20,SXV20..JPP199608

9015960304

main90159-60304

9046707146

main90467-07146

9046804152

main90468-04152

9053025010

main90530-25010

27 parts on this diagram · 2 diagrams in section
