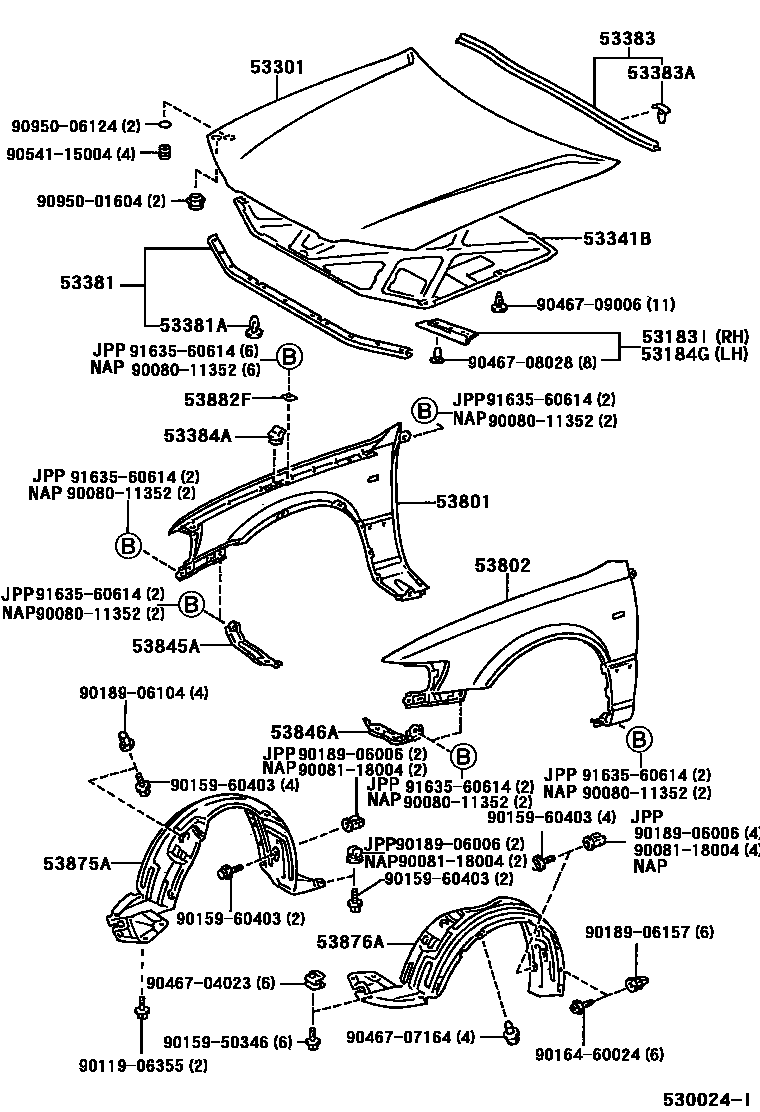

HOOD & FRONT FENDER
53183ISEAL, HEADLAMP COVER, RH
53184GSEAL, HEADLAMP COVER, LH
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
53384ABUMPER, FENDER TO HOOD
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882FSEAL, FRONT FENDER
9008011352
main90080-11352
9008118004
main90081-18004
9011906355
main90119-06355
9015950346
main90159-50346
9015960403
main90159-60403
9016460024
main90164-60024
9018906006
main90189-06006
9018906104
main90189-06104
9018906157
main90189-06157
9046704023
main90467-04023
9046707164
main90467-07164
9046708028
main90467-08028
9046709006
main90467-09006
9054115004
main90541-15004
9095001604
main90950-01604
9095006124
main90950-06124
9163560614
main91635-60614
33 parts on this diagram · 1 diagram in section
