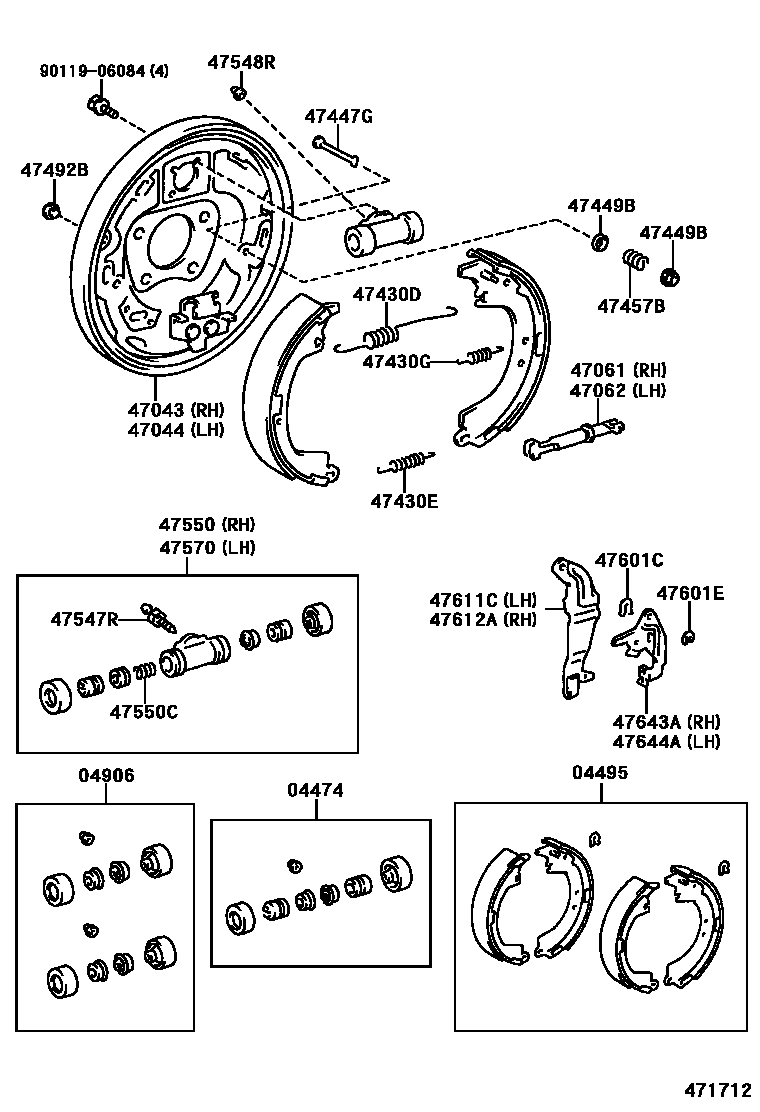

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
04495SHOE KIT, REAR BRAKE
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47061STRUT SET, PARKING BRAKE SHOE, RH
47062STRUT SET, PARKING BRAKE SHOE, LH
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
RH
LH
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)
47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601CWASHER, C(FOR REAR BRAKE)
T=1.2
47601ERING, E(FOR REAR BRAKE)
47611CLEVER, PARKING BRAKE SHOE, RH
47612ALEVER, PARKING BRAKE SHOE, LH
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9011906084
main90119-06084
26 parts on this diagram · 1 diagram in section
