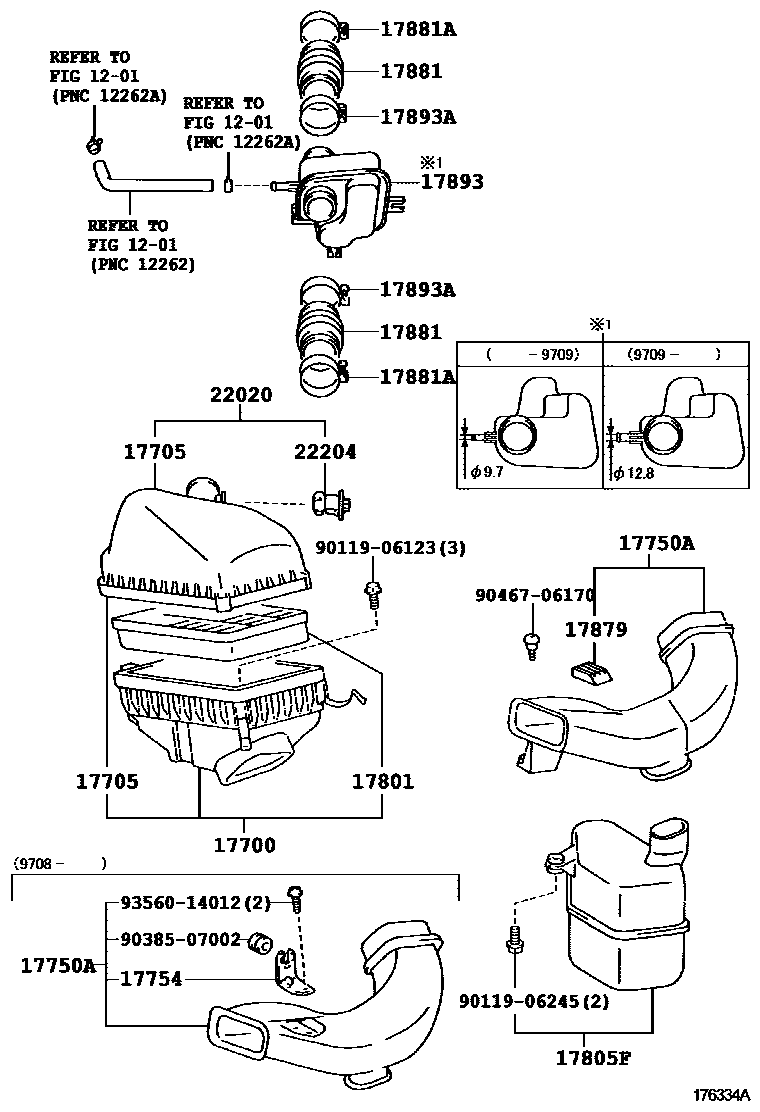

AIR CLEANER
17750AINLET ASSY, AIR CLEANER
sub17750-20030
sub17750-74050
TYPE B:REFER TO ILLUSTRATION
sub17750-74051
TYPE A:REFER TO ILLUSTRATION
17754STAY, AIR CLEANER INLET
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17805FRESONATOR SUB-ASSY, INTAKE AIR
TYPE B:REFER TO ILLUSTRATION,NO.2
NO.2
TYPE A:REFER TO ILLUSTRATION,NO.2
NO.1
W(CRUISE CONTROL),NO.1
NO.1
W(CRUISE CONTROL),NO.1
NO.1
17879PAD, AIR CLEANER INLET
17881HOSE, AIR CLEANER, NO.1
(L)
(J)
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17893RESONATOR, INTAKE AIR
NO.1,(L)
W(CRUISE CONTROL),NO.1,(L)
NO.1,(J)
W(CRUISE CONTROL),NO.1,(J)
NO.2
NO.1
17893ACLAMP, HOSE
22204METER SUB-ASSY, INTAKE AIR FLOW
9011906123
main90119-06123
9011906245
main90119-06245
9038507002
main90385-07002
9046706170
main90467-06170
9356014012
main93560-14012
18 parts on this diagram · 4 diagrams in section
