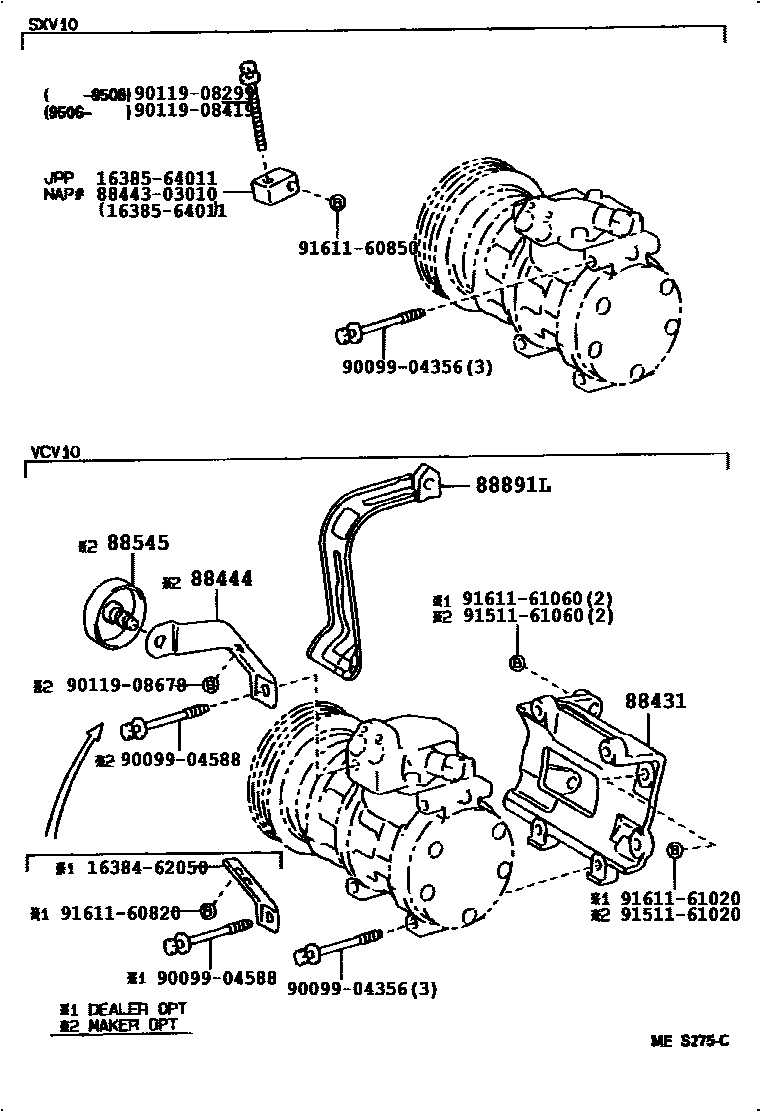

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-33010iVCV10..JPP199106-199308

main88431-33020iMCV10..JPP199308-199608

88444BRACKET, IDLE PULLEY

main88444-33010iVCV10..JPP199106-199109

main88444-33011iVCV10..JPP199109-199208

sub88444-33012

main88444-33012iVCV10..JPP199208-199308

88545PULLEY ASSY, IDLE

main88440-33010iVCV10..JPP199106-199308

88891LCOVER, COOLER, NO.1

main88891-33040iVCV10..JPP199109-199208

sub88891-33041

main88891-33041iVCV10..JPP199208-199308

1638462050BRACKET, FAN BELT ADJUSTING BAR

main16384-62050

1638564011SLIDER, FAN BELT ADJUSTING

main16385-64011

8844303010COLLAR, IDLE PULLEY

main88443-03010

9009904356

main90099-04356

9009904588

main90099-04588

9011908299

main90119-08299

9011908419

main90119-08419

9011908678

main90119-08678

9151161020

main91511-61020

9151161060

main91511-61060

9161160820

main91611-60820

9161160850

main91611-60850

9161161020

main91611-61020

9161161060

main91611-61060

18 parts on this diagram · 4 diagrams in section
