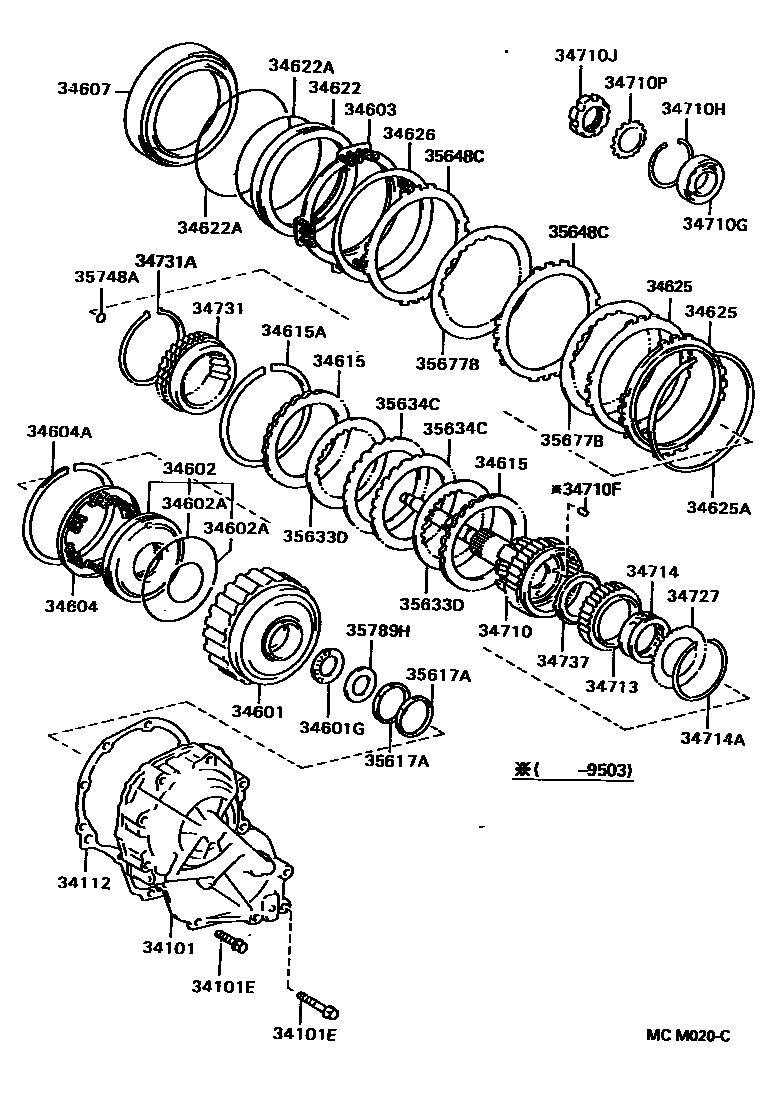

OVERDRIVE GEAR (ATM)
34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)
*8-1.25PX28-28
*8-1.25PX40-40
*8-1.25PX29-24
*8-1.25PX59-35
*8-1.25PX23-23
*8-1.25PX38-38
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
INNER
OUTER
34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34604ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH RETURN SPRING)
34607DRUM SUB-ASSY, OVERDRIVE BRAKE
34615FLANGE, OVERDRIVE CLUTCH
T=3.0
T=3.0
T=3.6
T=1.8
34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)
34622PISTON, OVERDRIVE BRAKE
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
OUTER
INNER
INNER
34625FLANGE, OVERDRIVE BRAKE, NO.1
T=3.35
T=3.8
T=3.8
34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)
34626PLATE, OVERDRIVE BRAKE CUSHION
34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)
34710HRING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING)
34710JNUT(FOR OVERDRIVE PLANETARY GEAR)
34710PWASHER(FOR OVERDRIVE PLANETARY GEAR)
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34714CLUTCH, 1 WAY(FOR OVERDRIVE)
34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)
34727PLATE, RETAINING (FOR OVERDRIVE)
34731GEAR, OVERDRIVE PLANETARY RING
34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
T=3.0
35648CPLATE, CLUTCH (FOR OVERDRIVE BRAKE)
35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)
35748ARING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE)
35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)
38 parts on this diagram · 3 diagrams in section
