TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

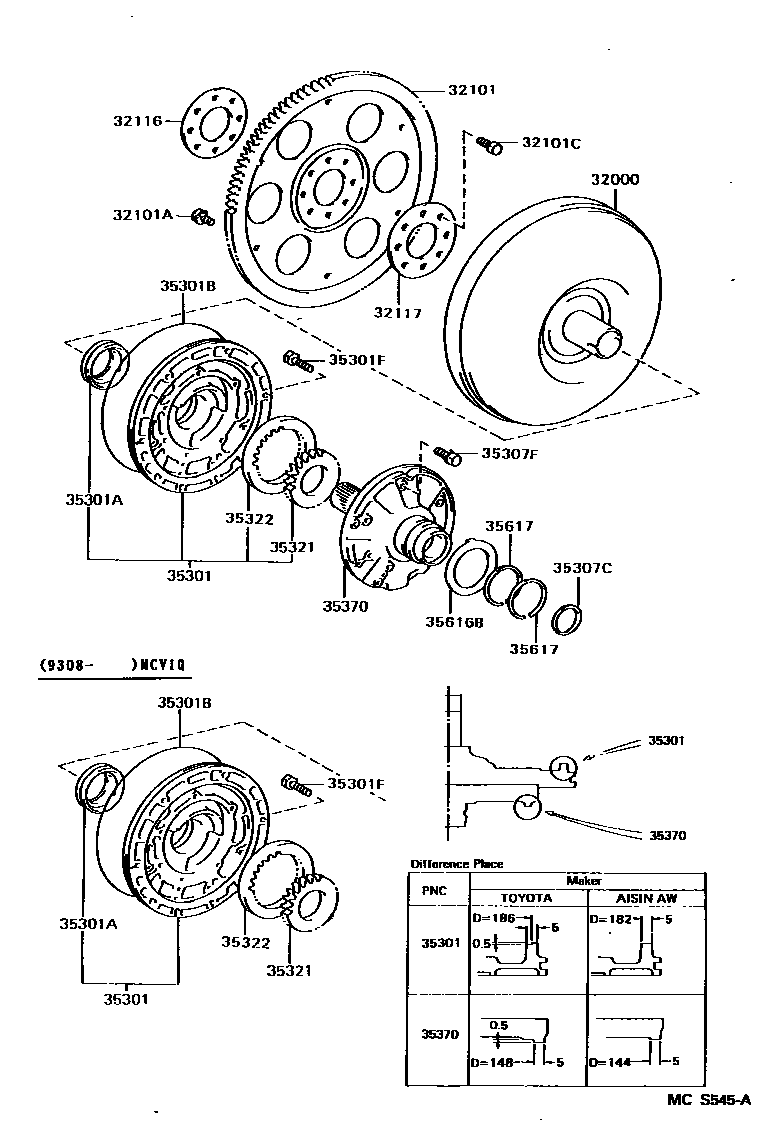

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-20190i199106-199608
main32000-33010i199106-199308
main32000-33020i199308-199501
sub32000-33021
main32000-33021i199501-199608
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-32050i199106-199406
sub32101-32051
main32101-32051i199406-199608
main32101-32080i199106-199308
main32101-33010i199308-199608
sub32101-48010
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08113i199106-199608
*8-1.25PX12-8.4,YELLOW
main90119-08498i199106-199608
*8-1.25PX12-8,OLIVE GREEN
main90119-09018i199106-199608
*9-1.25PX12.4-8.4,YELLOW
sub90119-09025
main90119-09019i199106-199608
*9-1.25PX12.4-8.3,OLIVE GREEN
sub90109-09001
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i199106-199608
*10-1.25PX18-13
main90109-10054i199106-199608
*10-1.25PX22-16
32116SPACER, DRIVE PLATE, FRONT
main32116-32011i199106-199608
main32116-32020i199106-199608
32117SPACER, DRIVE PLATE, REAR
main32117-32010i199106-199608
main32117-32020i199106-199608
35301BODY SUB-ASSY, FRONT OIL PUMP
main35035-32010i199106-199608
AISIN AW
main35035-32020i199106-199608
TOYOTA
sub35035-32H00
main35035-32030i199106-199308
main35301-33010i199308-199608
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i199106-199608
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99024i199106-199608
main90301-99079i199308-199608
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i199106-199608
*8-1.25PX28-28
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
main35789-32020i199106-199608
T=0.8
main35789-32030i199106-199608
T=1.4
35307FBOLT (FOR STATOR SHAFT)
main90119-06180i199106-199512
main90119-06808i199512-199608
sub90119-06559
35321GEAR, FRONT OIL PUMP DRIVE
main35321-12020i199106-199308
T=10.690-10.699
main35321-12030i199106-199308
T=10.700-10.709
main35321-12040i199106-199308
T=10.710-10.720
main35321-12050i199106-199308
T=10.721-10.730
main35321-12060i199106-199308
T=10.731-10.740
main35321-12070i199106-199608
T=9.440-9.449
main35321-12080i199108-199608
T=9.450-9.459
main35321-12090i199106-199608
T=9.460-9.470
main35321-12100i199408-199608
T=9.471-9.480
main35321-12110i199106-199608
T=9.481-9.490
main35321-32040i199106-199108
T=9.440-9.456
sub35321-12070
main35321-32050i199106-199108
T=9.456-9.474
sub35321-12090
main35321-32060i199106-199108
T=9.474-9.490
sub35321-12110
main35321-33010i199308-199608
T=10.690-10.699
main35321-33030i199308-199608
T=10.710-10.720
main35321-33050i199308-199608
T=10.731-10.740
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-12010i199106-199308
T=10.690-10.699
main35322-12020i199106-199308
T=10.700-10.709
main35322-12030i199106-199308
T=10.710-10.720
main35322-12040i199106-199308
T=10.721-10.730
main35322-12050i199106-199308
T=10.731-10.740
main35322-12060i199106-199608
T=9.440-9.449
main35322-12070i199108-199608
T=9.450-9.459
main35322-12080i199106-199608
T=9.460-9.470
main35322-12090i199408-199608
T=9.471-9.480
main35322-12100i199106-199608
T=9.481-9.490
main35322-32040i199106-199108
T=9.440-9.456
sub35322-12060
main35322-32050i199106-199108
T=9.456-9.474
sub35322-12080
main35322-32060i199106-199108
T=9.474-9.490
sub35322-12100
main35322-33010i199308-199608
T=10.690-10.699
main35322-33030i199308-199608
T=10.710-10.720
main35322-33050i199308-199608
T=10.731-10.740
35370SHAFT ASSY, STATOR
main35370-12040i199106-199608
AISIN AW
main35370-32050i199106-199608
TOYOTA
sub35035-32H00
main35370-33010i199106-199308
main35370-33020i199308-199608
35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
main35616-32010i199106-199608
35617RING, CLUTCH DRUM OIL SEAL
main35617-32011i199106-199608

17 parts on this diagram · 1 diagram in section
