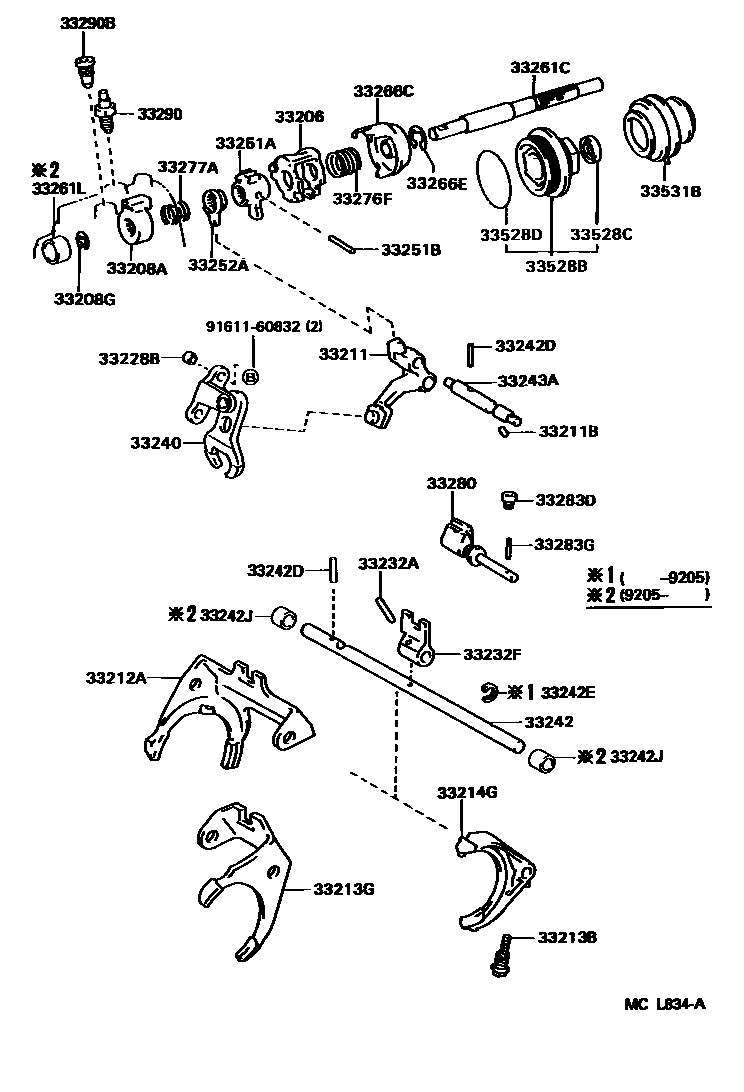

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33206PLATE SUB-ASSY, SHIFT INTERLOCK
33208APIN SUB-ASSY, REVERSE RESTRICT
33208GRING, E(FOR REVERSE RESTRICT PIN)
33211BROLLER(FOR REVERSE SHIFT FORK)
33213BBOLT(FOR SHIFT FORK SET)
33214GFORK, GEAR SHIFT, NO.3
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33242JBUSH (FOR SHIFT FORK SHAFT)
L=12.0
L=10.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=32
L=47.0
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
33266ERING, E (FOR SHIFT INTERLOCK PLATE)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BBALL ASSY, LOCK, NO.2
33528DRING, O (FOR CONTROL SHAFT COVER)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9161160832
main91611-60832
38 parts on this diagram · 4 diagrams in section
