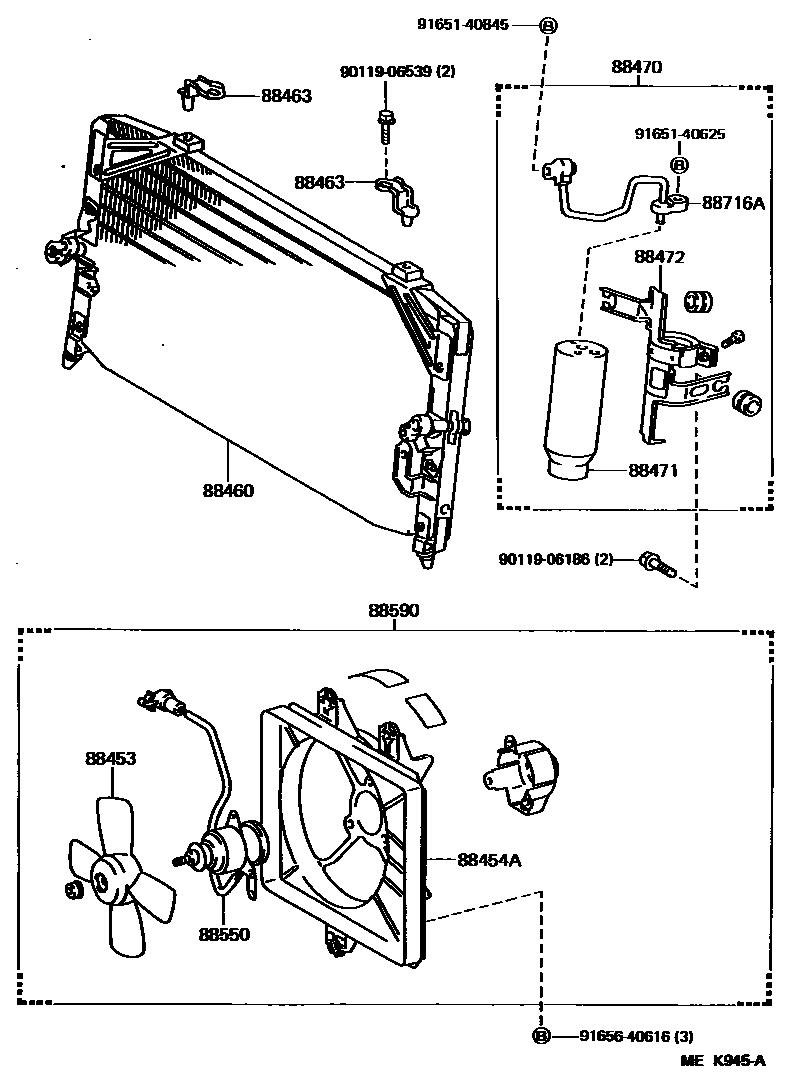

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88453FAN, COOLING (FOR CONDENSER)

main88453-32030iSV2#198808-199106

main88453-32040iVZV21..LE198808-199106

88454ASHROUD, FAN

main88454-32041iSV2#198808-199106

main88454-32050iVZV21..LE198808-199106

88460CONDENSER ASSY, COOLER

main88460-32090iVZV21..LE198808-199106

88463BRACKET, COOLER CONDENSER, NO.1

main88463-32021iSV2#,VZV21198808-199106

88470RECEIVER & DRYER ASSY, COOLER

main88470-32010iSV2#,VZV21198808-198906

main88470-32020iSV2#,VZV21198906-199106

88471TANK, RECEIVER AIR CONDITIONER

main88471-10030iSV2#,VZV21198808-199106

sub88471-12040

88472BRACKET, RECEIVER TANK, NO.1

main88473-32020iSV2#,VZV21198808-198906

main88473-32030iSV2#,VZV21198906-199106

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-32060iVZV21..LE198808-199106

main88550-32070iSV2#198808-199106

sub88550-32080

88590BLOWER ASSY, W/SHROUD

main88590-32081iSV2#198808-199106

main88590-32110iVZV21..LE198808-199106

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-32230iSV2#,VZV21198808-199106

9011906186

main90119-06186

9011906539

main90119-06539

9165140625

main91651-40625

9165140845

main91651-40845

9165640616

main91656-40616

15 parts on this diagram · 4 diagrams in section
