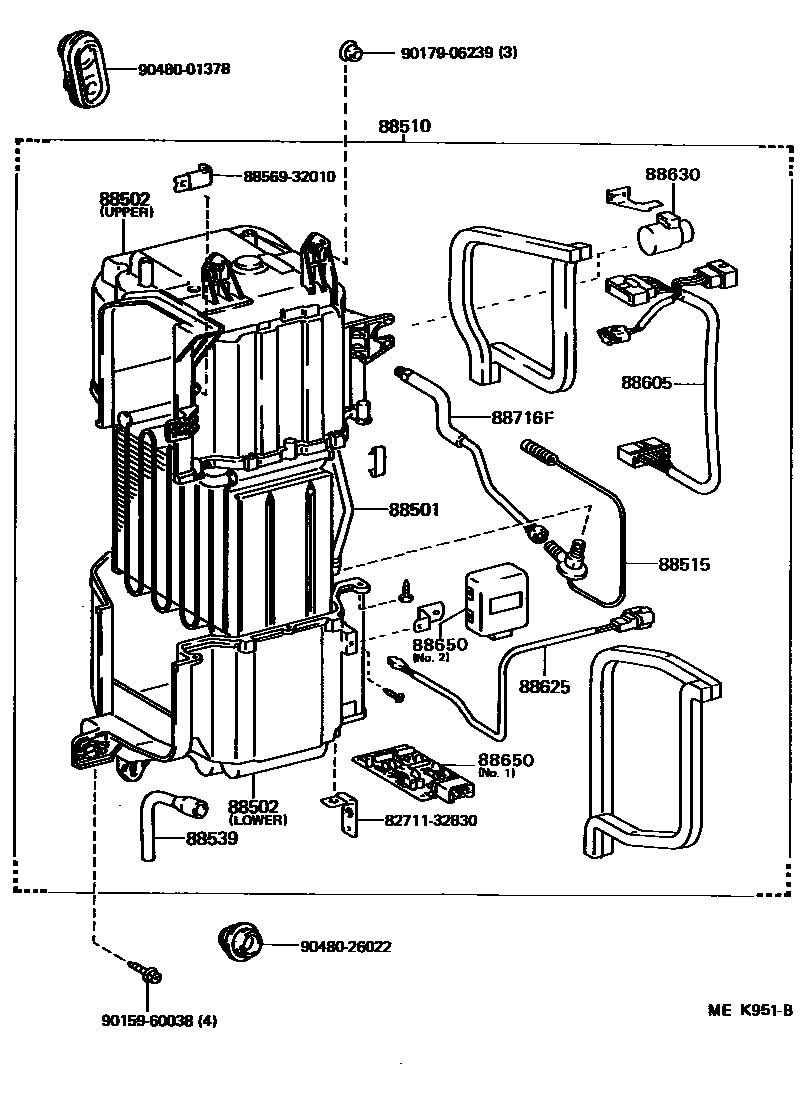

HEATING & AIR CONDITIONING - COOLER UNIT
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88502CASE SUB-ASSY, COOLING UNIT
LOWER
88510UNIT ASSY, COOLER
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
88625THERMISTOR, COOLER, NO.1
88630RELAY ASSY, COOLER
88650AMPLIFIER ASSY, COOLER STABILIZER
NO.3
NO.2
NO.1(MAIN)
NO.1(MAIN)
NO.2
88716FPIPE, COOLER REFRIGERANT LIQUID, F
8271132830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-32830
8856932010CLAMP (FOR COOLER RELAY)
main88569-32010
9015960038
main90159-60038
9017906239
main90179-06239
9048001378
main90480-01378
9048026022
main90480-26022
16 parts on this diagram · 2 diagrams in section
