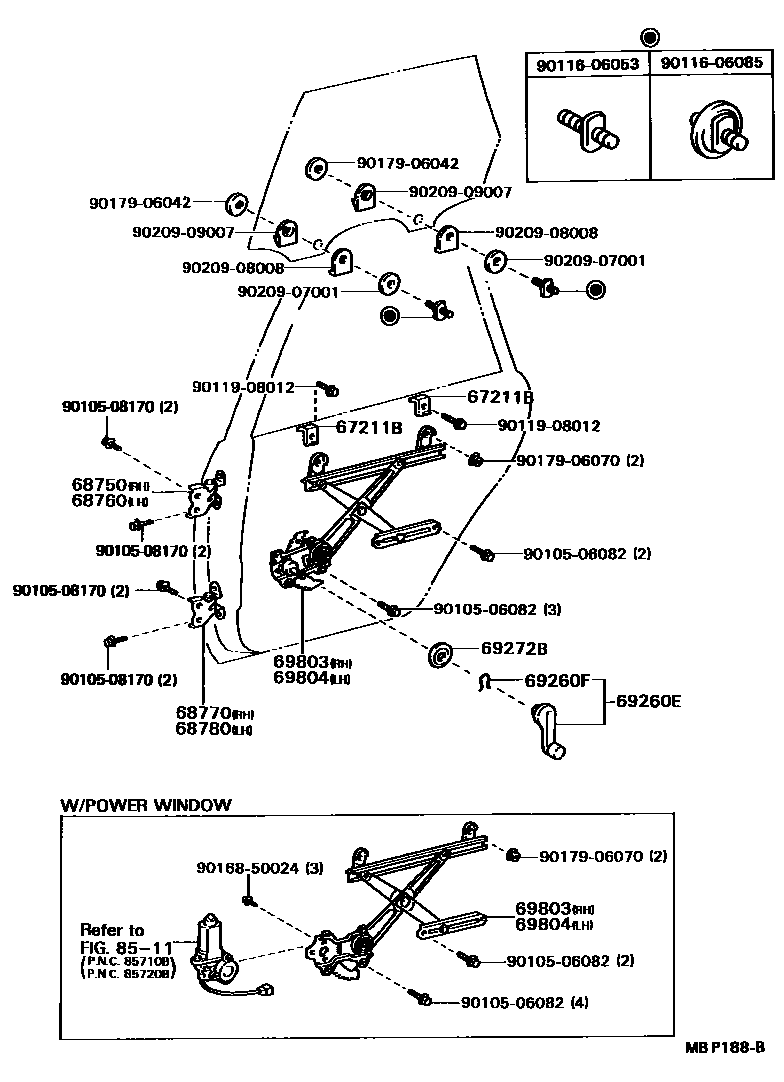

REAR DOOR WINDOW REGULATOR & HINGE

67211BSTOP, REAR DOOR WINDOW, UPPER

main67211-32010iSV2#,VZV21¥520198808-199106

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32010iSV2#,VZV21¥2,980198808-199106

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32010iSV2#,VZV21¥2,980198808-199106

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-32010iSV2#,VZV21¥2,980198808-199106

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-32010iSV2#,VZV21¥2,980198808-199106

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-14iSV2#,VZV21198808-199106

DARK BLUE,TRIM8#

sub69260-22030¥1,610

main69260-22030-22iSV2#,VZV21..USA198808-199106

MAROON,TRIM3#

sub69260-22030¥1,610

main69260-22030-23iSV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

sub69260-22030¥1,610

main69260-22030-26iSV2#,VZV21198808-199106

BROWN,TRIM4#

sub69260-22030¥1,610

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iSV2#,VZV21¥180198808-199106

sub90520-01274¥160

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iSV2#,VZV21..USA198808-199106

NATURAL WHITE,TRIM1#,3#,4#,8#

sub69285-22010¥330

main69285-22010-08iSV2#,VZV21..USA198808-199106

NATURAL WHITE,TRIM1#,4#,8#

sub69285-22010¥330

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-32020iSV2#,VZV21..DX,LE¥7,300198808-199106

W(POWER WINDOW)

main69830-32030iSV2#,VZV21¥7,300198808-199106

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-32020iSV2#,VZV21..DX,LE¥7,300198808-199106

W(POWER WINDOW)

main69840-32030iSV2#,VZV21¥7,300198808-199106

8511

9010506082

main90105-06082¥80

9010508170

main90105-08170¥120

9011606053

main90116-06053¥130

9011606085

main90116-06085¥180

9011908012

main90119-08012¥130

9016850024

main90168-50024¥120

9017906042

main90179-06042¥360

9017906070

main90179-06070¥180

9020907001

main90209-07001¥110

9020908008

main90209-08008¥120

9020909007

main90209-09007¥120

22 parts on this diagram · 1 diagram in section
