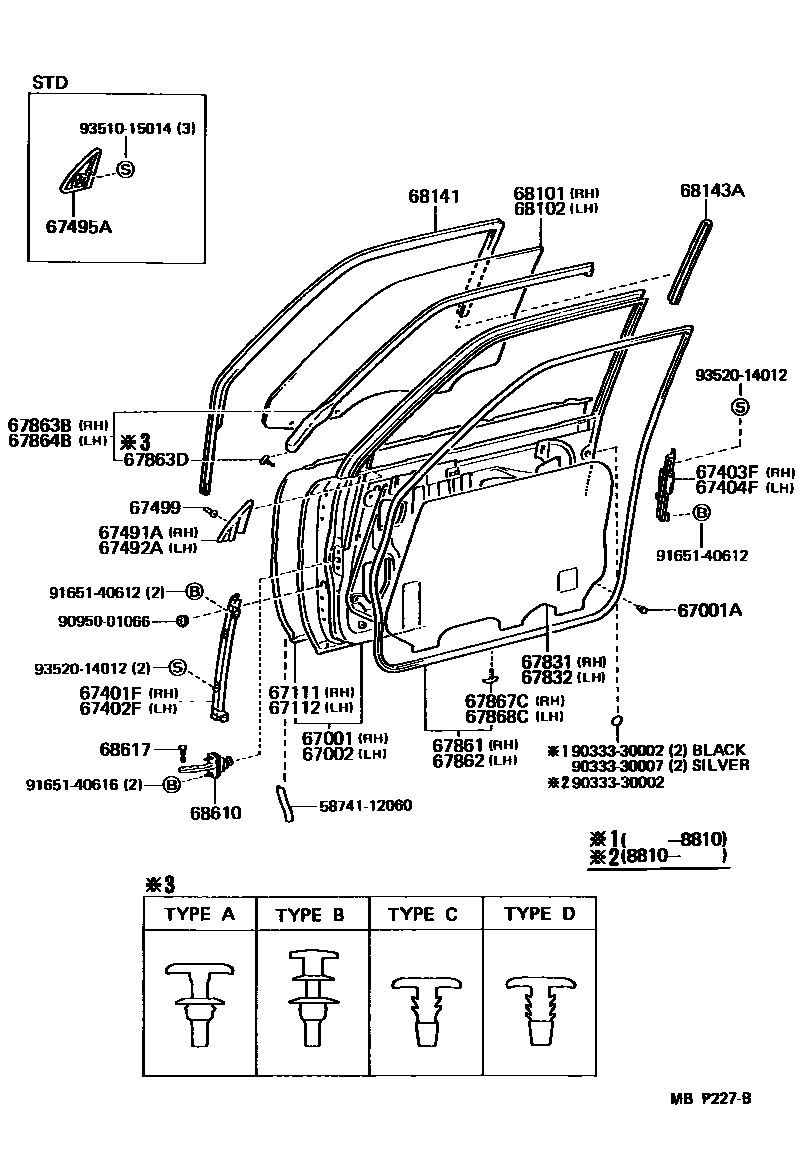

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W(REMOTE CONTROL DOOR MIRROR)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W(REMOTE CONTROL DOOR MIRROR)
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
TYPE C
TYPE A
TYPE B
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0,BLUE
*TT,T=4.0,BRONZE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0,BLUE
*TT,T=4.0,BRONZE
68141RUN, FRONT DOOR GLASS
RH
LH
68143ARUN, FRONT DOOR GLASS, NO.2
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
5874112060PROTECTOR, QUARTER PANEL, RH
main58741-12060
9033330002
main90333-30002
9033330007
main90333-30007
9095001066
main90950-01066
9165140612
main91651-40612
9165140616
main91651-40616
9351015014
main93510-15014
9352014012
main93520-14012
36 parts on this diagram · 5 diagrams in section
