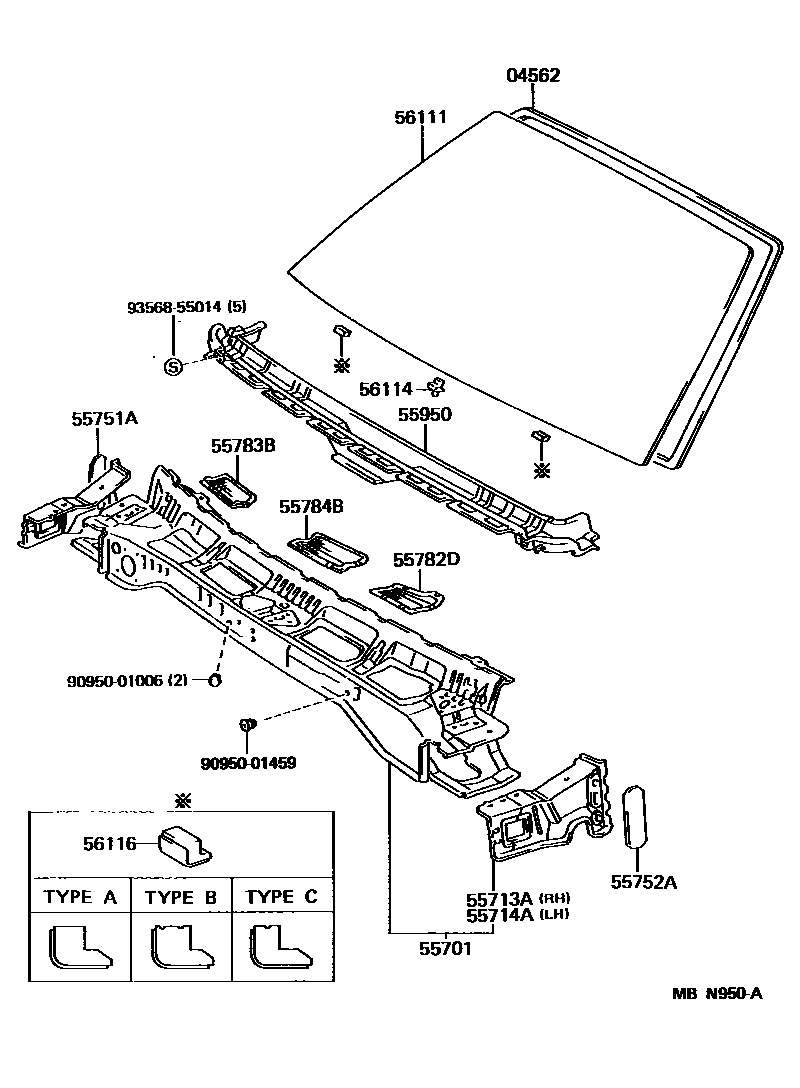

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iSV2#,VZV21198808-199106

55701PANEL SUB-ASSY, COWL

main55700-32130iSV21,VZV21198808-198810

sub55700-32131

main55700-32131iSV21,VZV21198810-198906

sub55700-32132

sub90950-01584

main55700-32132iSV21,VZV21198906-199008

sub55700-32133

main55700-32133iSV21,VZV21199008-199106

main55700-32310iSV25198808-198810

sub55700-32311

main55700-32311iSV25198810-198906

sub55700-32312

sub90950-01584

main55700-32312iSV25198906-199008

sub55700-32313

main55700-32313iSV25199008-199106

55713APANEL, COWL TOP SIDE, RH

main55713-32020iSV2#,VZV21198808-199106

55714APANEL, COWL TOP SIDE, LH

main55714-32020iSV2#,VZV21198808-199106

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-32010iSV2#,VZV21198808-199106

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55751-32010iSV2#,VZV21198808-199106

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-32030iSV2#,VZV21198808-199106

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-32030iSV2#,VZV21198808-199106

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-32030iSV2#,VZV21198808-199106

55950NOZZLE ASSY, DEFROSTER

main55950-32041iSV2#,VZV21198808-199106

56111GLASS, WINDSHIELD

main56111-32200iSV2#,VZV21..DX,STD198808-199106

*TL,T=5.3

main56111-32211iSV2#,VZV21..LE198808-199106

*TL,T=5.3

sub56111-03020

main56111-32220iSV2#,VZV21..LE198808-199106

*TL,T=5.3,BRONZE

56114RETAINER, WINDSHIELD GLASS

main56114-32010iSV2#,VZV21198808-199106

56116SPACER, WINDSHIELD GLASS

main56116-32040iSV2#,VZV21198808-199106

TYPE A

sub56116-32060

main56116-32050iSV2#,VZV21198808-199106

TYPE B

sub56116-32060

main56116-32060iSV2#,VZV21198808-199106

TYPE C

9095001006

main90950-01006

9095001459

main90950-01459

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
