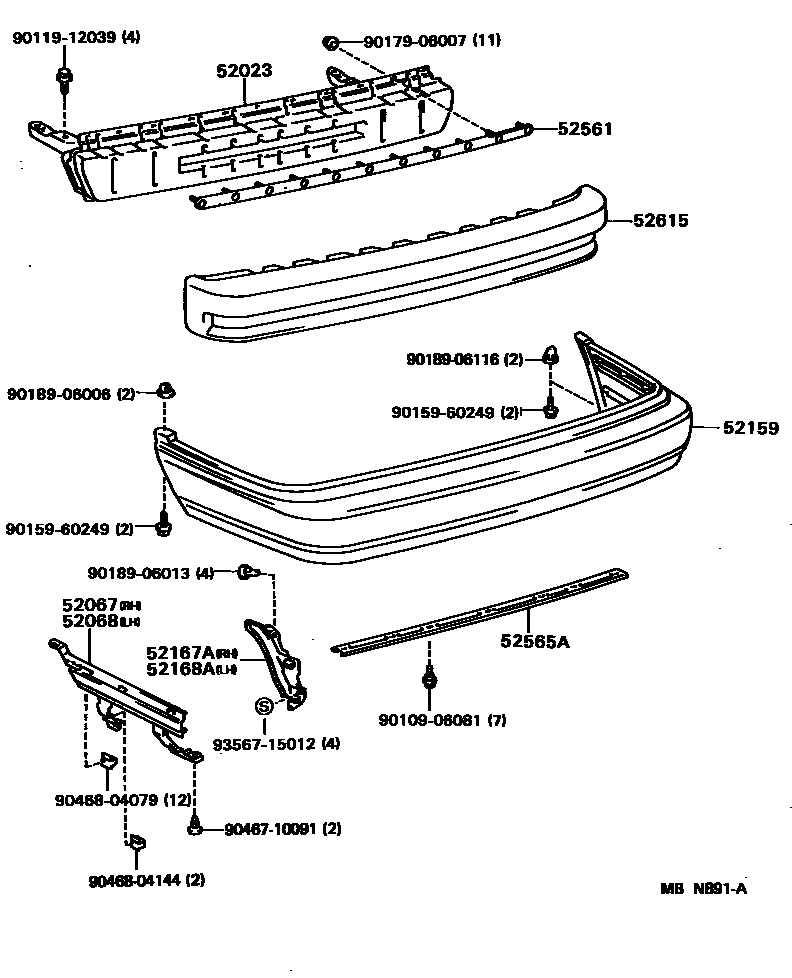

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-32060iSV21,VZV21..SED198808-199106

main52023-32090iSV21,VZV21..WG198808-199106

main52023-32120iSV25198808-199106

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52067-32020iSV21,VZV21..WG198808-199106

main52067-32040iSV2#,VZV21..SED198808-199106

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52068-32020iSV21,VZV21..WG198808-199106

main52068-32040iSV2#,VZV21..SED198808-199106

52159COVER, REAR BUMPER

main52159-32160iSV2#,VZV21..SED..(DX,STD)198808-199106

sub52159-32911

main52159-32230iSV21,VZV21..WG..DX198808-199106

sub52159-32912

main52159-32911iSV2#..SED..DX..CND198908-199106

TREATED FOR PAINTING

main52159-32911iSV2#,VZV21..SED..LE198808-199106

main52159-32912iSV21,VZV21..WG..LE198808-199106

main52159-32912iSV21..WG..DX..CND198908-199106

TREATED FOR PAINTING

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-32020iSV2#,VZV21..SED198808-199106

main52167-32040iSV21,VZV21..WG198808-199106

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52168-32020iSV2#,VZV21..SED198808-199106

main52168-32040iSV21,VZV21..WG198808-199106

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-32030iSV2#,VZV21198808-199106

52565ARETAINER, REAR BUMPER, LOWER

main52565-32030iSV2#,VZV21198808-199106

52615ABSORBER, REAR BUMPER ENERGY

main52615-32060iSV2#,VZV21198808-199106

9010906081

main90109-06081

9011912039

main90119-12039

9015960249

main90159-60249

9017906007

main90179-06007

9018906006

main90189-06006

9018906013

main90189-06013

9018906116

main90189-06116

9046710091

main90467-10091

9046804079

main90468-04079

9046804144

main90468-04144

9356715012

main93567-15012

20 parts on this diagram · 2 diagrams in section
