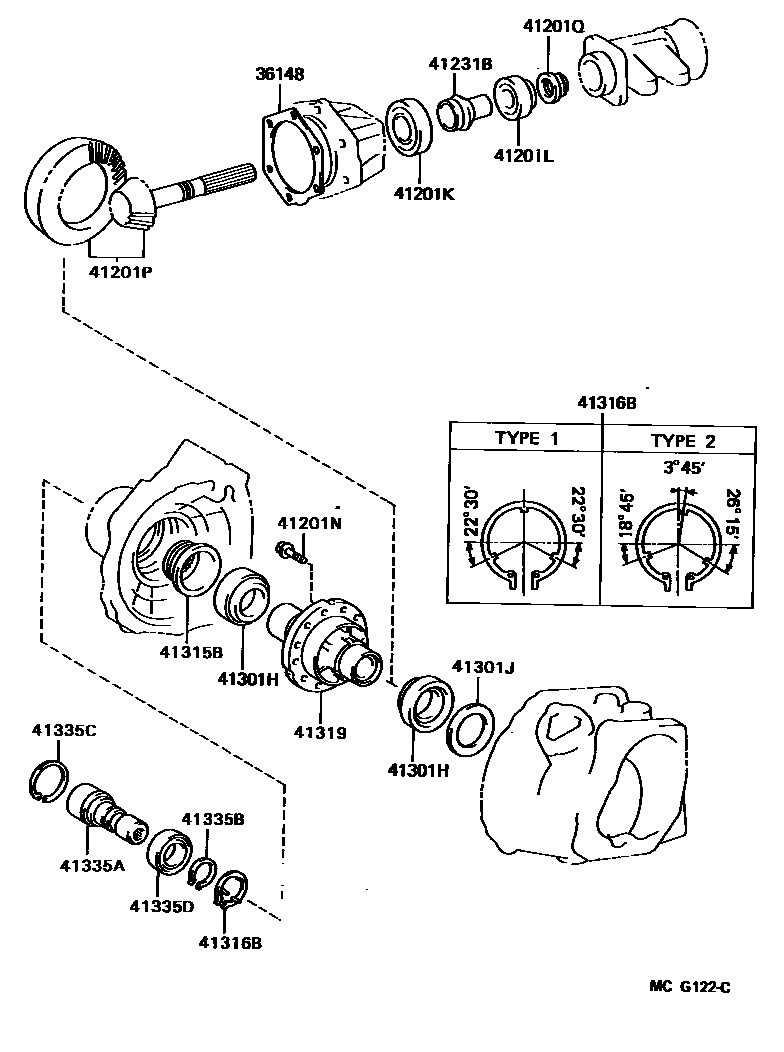

TRANSFER GEAR
36148SHIM, PINION BEARING CAGE
T=0.30,MARK A
T=0.33,MARK B
T=0.36,MARK C
T=0.39,MARK D
T=0.42,MARK E
T=0.45,MARK F
T=0.48,MARK G
T=0.51,MARK H
T=0.54,MARK J
T=0.57,MARK K
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201NBOLT (FOR TRANSFER GEAR )
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
RH
LH
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
T=2.13,MARK 01
T=2.16,MARK 02
T=2.19,MARK 03
T=2.22,MARK 04
T=2.25,MARK 05
T=2.28,MARK 06
T=2.31,MARK 07
T=2.34,MARK 08
T=2.37,MARK 09
T=2.40,MARK 10
T=2.43,MARK 11
T=2.46,MARK 12
T=2.49,MARK 13
T=2.52,MARK 14
T=2.55,MARK 15
T=2.58,MARK 16
T=2.61,MARK 17
T=2.64,MARK 18
T=2.67,MARK 19
T=2.70,MARK 20
T=2.73,MARK 21
T=2.76,MARK 22
T=2.79,MARK 23
T=2.82,MARK 24
41315BNUT, BEARING ADJUSTING
41316BPLATE, ADJUSTING NUT LOCK
TYPE 2
41319CASE, TRANSFER RING GEAR MOUNTING
41335BRING, SHAFT SNAP (FOR SIDE GEAR SHAFT HOLDER)
16 parts on this diagram · 2 diagrams in section
