TRANSFER ASSEMBLY & GASKET KIT

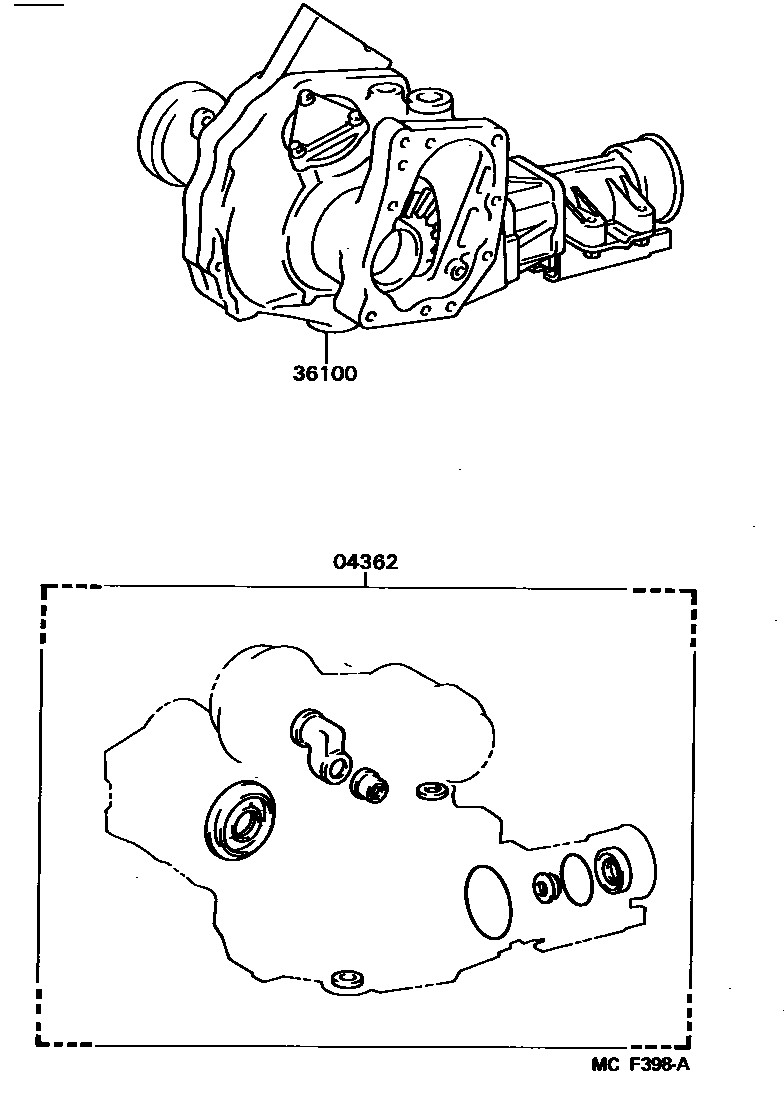

Parts diagram
04362GASKET KIT, TRANSFER OVERHAUL
main04362-32020i198808-199008
main04362-32030i198808-199106
sub04362-32031
36100TRANSFER ASSY
main36100-32010i198808-199008
main36100-32030i198808-199004
sub36100-32031
main36100-32031i199004-199106

2 parts on this diagram · 2 diagrams in section
