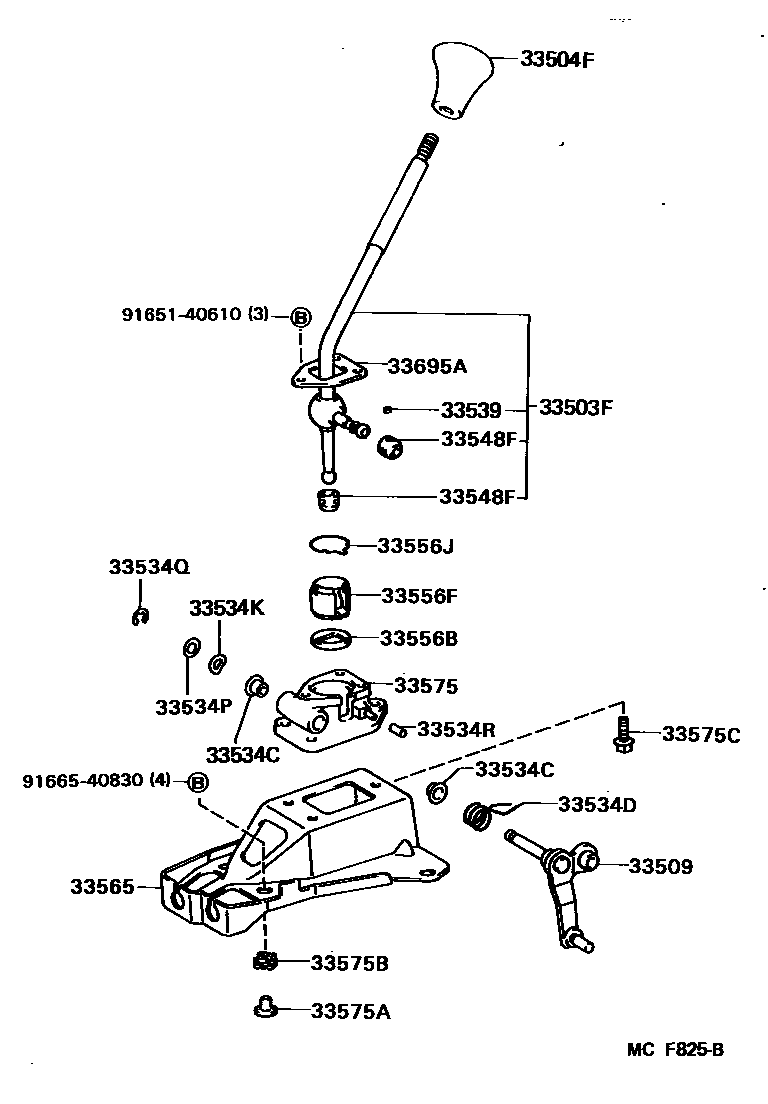

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-32030iSV21..5F198808-199106

main33055-32060iSV2#,VZV21..4FC198808-199106

main33503-32151iSV25,VZV21..5F198808-198811

sub33503-32152

main33503-32152iSV25,VZV21..5F198811-199106

sub33503-32150

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12150-04iSV21,VZV21..5F..LE198808-199106

LEATHER PACKAGE,DARK BLUE,TRIM8#

sub33504-12150

sub33504-22140

main33504-12150-13iSV21,VZV21..5F..LE198808-198904

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

sub33504-12150

sub33504-22140

main33504-12150-26iSV21,VZV21..5F..LE198808-199106

LEATHER PACKAGE,BROWN,TRIM4#

sub33504-12150

sub33504-22140

main33504-12150-33iSV21,VZV21..5F..LE198912-199106

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

sub33504-12150

sub33504-22140

main33504-24010-B0iSV2#,VZV21..5F198808-199106

MEDIUM GRAY,TRIM1#

sub33504-24010

main33504-24010-B0iSV21..5F..STD..CND;SV2#,VZV21..5F..(DX,LE)198905-198908

MEDIUM GRAY

sub33504-24010

main33504-24010-D0iSV2#,VZV21..5F..USA198808-199106

MAROON,TRIM3#

sub33504-24010

main33504-24010-E1iSV21..5F..STD..CND;SV2#,VZV21..5F..(DX,LE)198808-199106

BROWN,TRIM4#

sub33504-24010

main33504-24010-J0iSV2#,VZV21..5F..(DX,LE)198808-199106

DARK BLUE,TRIM8#

sub33504-24010

main33542-32090-B0iSV2#,VZV21..SED..4FC..(DX,LE)..USA198808-199106

MEDIAM GRAY,TRIM1#

sub33542-32090

main33542-32090-D0iSV2#,VZV21..SED..4FC..(DX,LE)..USA198808-198912

MARRON,TRIM3#

sub33542-32090

main33542-32090-E0iSV2#,VZV21..4FC198808-199106

BROWN,TRIM4#

sub33542-32090

main33542-32090-J0iSV2#,VZV21..SED..4FC..(DX,LE)..USA198808-199106

DARK BLUE,TRIM8#

sub33542-32090

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-12060iSV21..5F198808-198906

sub33509-12080

sub90206-12003

main33509-12080iSV21..5F198906-199106

main33509-32010iSV25,VZV21..5F198808-198908

main33509-32011iSV25,VZV21..5F198908-199106

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12034iSV2#,VZV21..5F198808-199106

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084iSV2#,VZV21..5F198808-199106

33534KWASHER, WAVE (FOR SELECTING BELLCRANK NO.1)

main90206-12003iSV25,VZV21..5F198811-199106

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12052iSV2#,VZV21..5F198808-199106

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iSV2#,VZV21..5F198808-199106

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-06029iSV2#,VZV21..5F198808-199106

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iSV2#,VZV21..5F198904-199106

main33539-32010iSV25,VZV21..5F198811-198904

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iSV2#,VZV21..5F198808-198906

main33548-12030iSV25,VZV21..5F198811-198904

sub33548-12040

sub33539-12010

main33548-12040iSV2#,VZV21..5F198904-199106

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-34001iSV2#,VZV21..5F198808-199106

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20020iSV2#,VZV21..5F198808-199106

33556JRING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)

main90520-36018iSV2#,VZV21..5F198808-199106

33565PLATE, CONTROL SHIFT LEVER RETAINER

main33565-12030iSV2#,VZV21..5F198808-199106

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-32041iSV25,VZV21..5F198808-198811

sub33575-32042

sub90206-12003

main33575-32042iSV25,VZV21..5F198811-198908

main33575-32043iSV25,VZV21..5F198908-199106

main33575-32050iSV21..5F198808-199106

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08031iSV2#,VZV21..5F198808-199106

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-10020iSV2#,VZV21..5F198808-199106

33575CBOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90119-08622iSV2#,VZV21..5F198808-199106

33695ACOVER, SHIFT LEVER BALL

main33695-12031iSV2#,VZV21..5F198808-199106

9165140610

main91651-40610

9166540830

main91665-40830

22 parts on this diagram · 6 diagrams in section
