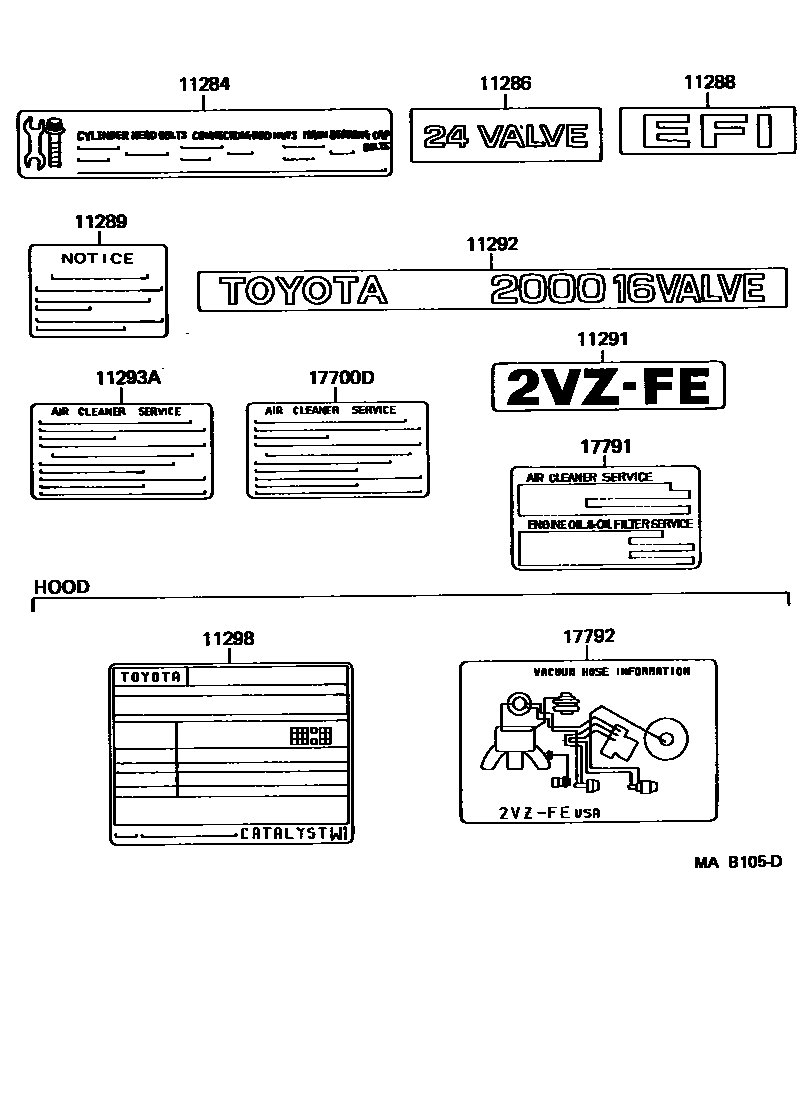

CAUTION PLATE & NAME PLATE (ENGINE)

11284PLATE, ENGINE BOLT INFORMATION

main11284-62010i2VZFE..VZV21198808-199106

main11284-74030i3SFE..SV25;3SFE..SV21..4FC..USA;3SFE..SV21..(DX,LE)..CND;3SFE..SV21..SED..5F..USA198907-199106

11286PLATE, ENGINE SPECIFICATION

main11286-62010i2VZFE..VZV21198808-199106

11288PLATE, ENGINE SYSTEM

main11288-74020i3SFE..SV2#198808-199106

11289PLATE, SPARK PLUG CAUTION

main11289-73020i2VZFE..VZV21198808-199106

11291PLATE, ENGINE NAME

main11291-62020i2VZFE..VZV21198808-199106

main11291-74040i3SFE..SV21..WG..LE..USA198808-199106

sub11291-74070

11292PLATE, ENGINE NAME, NO.2

main11292-74021i3SFE..SV25;3SFE..SV21..DX,STD;3SFE..SV21..SED..LE;3SFE..SV21..WG..LE..CND198808-199106

11293APLATE, ENGINE CAUTION

main11293-74070i2VZFE..VZV21198808-198908

11298PLATE, EMISSION CONTROL INFORMATION

main11298-62060i2VZFE..VZV21198808-198908

main11298-62070i2VZFE..VZV21..USA198808-198908

CALIFORNIA PACKAGE

main11298-62090i2VZFE..VZV21198908-199008

main11298-62100i2VZFE..VZV21..USA198908-199008

CALIFORNIA PACKAGE

main11298-62120i2VZFE..VZV21199008-199106

main11298-62130i2VZFE..VZV21..USA199008-199106

CALIFORNIA PACKAGE

main11298-74321i3SFE..SV21198808-198908

main11298-74322i3SFE..SV21198908-199008

main11298-74323i3SFE..SV21199008-199106

main11298-74331i3SFE..SV21..USA;3SFE..SV25..4FC..USA198808-198908

CALIFORNIA PACKAGE

main11298-74332i3SFE..SV21..USA;3SFE..SV25..4FC..USA198908-199008

CALIFORNIA PACKAGE

main11298-74333i3SFE..SV2#..USA199008-199106

CALIFORNIA PACKAGE

main11298-74361i3SFE..SV25198808-198908

main11298-74362i3SFE..SV25198908-199008

main11298-74363i3SFE..SV25199008-199106

main11298-74371i3SFE..SV25..5F..USA198808-198908

CALIFORNIA PACKAGE

main11298-74372i3SFE..SV25..5F..USA198908-199008

CALIFORNIA PACKAGE

17700DPLATE, ENGINE CAUTION

main11293-74070i3SFE..SV2#198808-198908

17791LABEL, MAINTENANCE INFORMATION

main17791-62010i3SFE,2VZFE..SV2#,VZV21198908-199106

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-62010i2VZFE..VZV21198808-198908

main17792-62030i2VZFE..VZV21198908-199106

main17792-62050i2VZFE..VZV21..4FC199011-199106

main17792-74120i3SFE..SV2#..5F198808-198908

main17792-74130i3SFE..SV2#..4FC198808-198908

main17792-74280i3SFE..SV2#..5F198908-199106

main17792-74290i3SFE..SV2#..4FC198908-199106

11 parts on this diagram · 1 diagram in section
