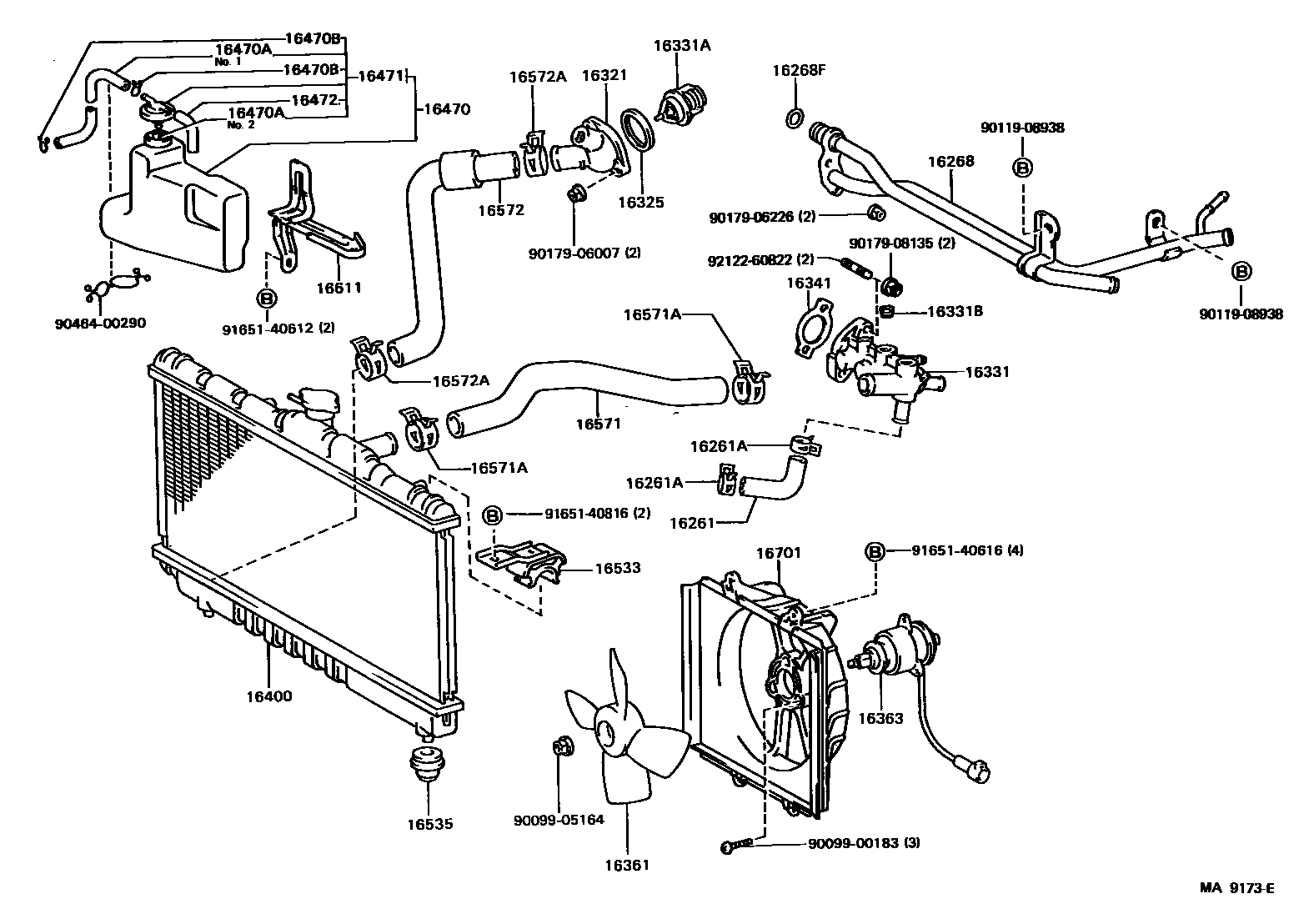

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16261HOSE, WATER BY-PASS

main16261-62010i2VZFE..VZV21198808-199106

main16261-74010i3SFE..SV2#198808-199106

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i2VZFE..VZV21198808-198905

sub96135-51300

main90467-22003i3SFE..SV2#198808-199106

sub90467-21010

main96135-41300i2VZFE..VZV21198905-199106

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-62010i2VZFE..VZV21198808-199104

sub16268-62011

main16268-62011i2VZFE..VZV21199104-199106

main16268-74010i3SFE..SV2#198808-199106

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24017i3SFE..SV2#198808-199106

16321INLET, WATER

main16321-62010i2VZFE..VZV21198808-199106

main16321-88360i3SFE..SV2#198808-199106

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i2VZFE..VZV21198808-199106

main16325-63010i3SFE..SV2#198808-199106

sub16325-63011

16331OUTLET, WATER

main16304-74030i3SFE..SV2#198808-199106

main16331-62010i2VZFE..VZV21198808-198905

sub16331-62011

main16331-62011i2VZFE..VZV21198905-199106

16331ATHERMOSTAT

main90916-03046i3SFE..SV2#198808-199106

*WAX 82-95

main90916-03075i2VZFE..VZV21198808-199106

*WAX 82-95

16331BPLUG(FOR WATER OUTLET)

main90345-53007i3SFE..SV21..DX,LE;3SFE..SV21..5F..STD198808-198909

main90345-53009i3SFE..SV21..DX,LE;3SFE..SV21..5F..STD198909-199106

16341GASKET, WATER OUTLET

main16341-62020i2VZFE..VZV21198808-199106

sub16341-62030

main16341-63010i3SFE..SV2#198808-198907

sub16341-63011

main16341-63011i3SFE..SV2#198907-199106

sub16341-74020

16361FAN

main16361-63020i3SFE..SV25..4FC198808-199106

sub16361-74070

main16361-63040i3SFE..SV21..5F198808-199106

main16361-64010i3SFE..SV25..5F;3SFE..SV21..4FC198808-199106

main16361-64030i2VZFE..VZV21198808-199106

16363MOTOR, COOLING FAN

main16363-10010i3SFE..SV21..5F198808-199106

main16363-16010i3SFE..SV25..5F;3SFE..SV21..4FC198808-199106

main16363-55010i2VZFE..VZV21..LE198808-199106

NO.1

main16363-74010i3SFE..SV25..4FC198808-199106

main88550-32060i2VZFE..VZV21..DX198808-199106

NO.2

main88550-32060i2VZFE..VZV21..DX199001-199106

16400RADIATOR ASSY

main16400-62011i2VZFE..VZV21..5F198808-199106

sub16400-62020

main16400-62030i2VZFE..VZV21..4FC198808-198911

sub16400-62040

main16400-62060i2VZFE..VZV21..4FC198911-199106

sub16400-62061

main16400-74200i3SFE..SV2#..5F198808-199106

sub16400-74450

main16400-74400i3SFE..SV25..4FC198808-199106

main16400-74450i3SFE..SV21..4FC198808-199106

16470TANK ASSY, RADIATOR RESERVE

main16470-62011i2VZFE..VZV21198808-198811

sub16470-62021

main16470-62021i2VZFE..VZV21198811-199106

main16470-74041i3SFE..SV2#198808-199106

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i3SFE..SV2#198808-199106

L=600,NO.2

main90445-12078i3SFE..SV2#198808-199106

L=600

main90445-12078i3SFE..SV2#198808-199106

L=600,NO.1

main90445-12897i2VZFE..VZV21198811-199106

NO.1

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2VZFE..VZV21198808-199106

16471CAP SUB-ASSY, RESERVE TANK

main16405-62011i2VZFE..VZV21..5F198808-199106

main16405-74031i3SFE..SV2#198808-199106

sub16405-62011

16472HOSE, BREATHER

main85338-74040i3SFE..SV2#198808-199106

16533SUPPORT, RADIATOR, UPPER

main16533-64071i2VZFE..VZV21198808-199106

main16533-74040i3SFE..SV21;3SFE..SV25..5F198808-199106

main16533-74110i3SFE..SV25..4FC198808-199106

16535SUPPORT, RADIATOR, LOWER

main16535-62010i2VZFE..VZV21..4FC198911-199106

main16535-64021i2VZFE..VZV21198808-199106

main16535-74030i3SFE..SV21;3SFE..SV25..5F198808-199106

main16535-74070i3SFE..SV25..4FC198808-199106

16571HOSE, RADIATOR, INLET

main16571-03020i3SFE..SV2#199010-199106

main16571-62010i2VZFE..VZV21198808-199106

main16571-74050i3SFE..SV2#198808-199106

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i3SFE..SV2#198808-199011

sub90467-34003

main90467-33004i3SFE..SV2#199011-199106

sub90467-33003

main90467-37001i2VZFE..VZV21198808-198903

sub90467-37003

main90467-37004i2VZFE..VZV21198904-199106

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-03020i3SFE..SV2#199010-199106

main16572-62010i2VZFE..VZV21198808-199106

main16572-74050i3SFE..SV2#198808-199106

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i3SFE..SV2#198808-199011

sub90467-34003

main90467-33002i3SFE..SV2#199011-199106

RADIATOR SIDE

sub90467-34003

main90467-33003i3SFE..SV2#199011-199106

main90467-33004i3SFE..SV2#199011-199106

ENGINE SIDE

sub90467-33003

main90467-34003i2VZFE..VZV21198808-199106

sub90467-34004

16611BRACKET, RADIATOR RESERVE TANK

main16611-74030i2VZFE..VZV21198808-199106

16701SHROUD SUB-ASSY, FAN

main16711-62020i2VZFE..VZV21198808-199106

main16711-74070i3SFE..SV21..5F198808-199106

main16711-74080i3SFE..SV25..4FC198808-199106

main16711-74110i3SFE..SV25..5F;3SFE..SV21..4FC198808-199106

9009900183

main90099-00183

9009905164

main90099-05164

9011908938

main90119-08938

9017906007

main90179-06007

9017906226

main90179-06226

9017908135

main90179-08135

9046400290

main90464-00290

9165140612

main91651-40612

9165140616

main91651-40616

9165140816

main91651-40816

9212260822

main92122-60822

37 parts on this diagram · 3 diagrams in section
