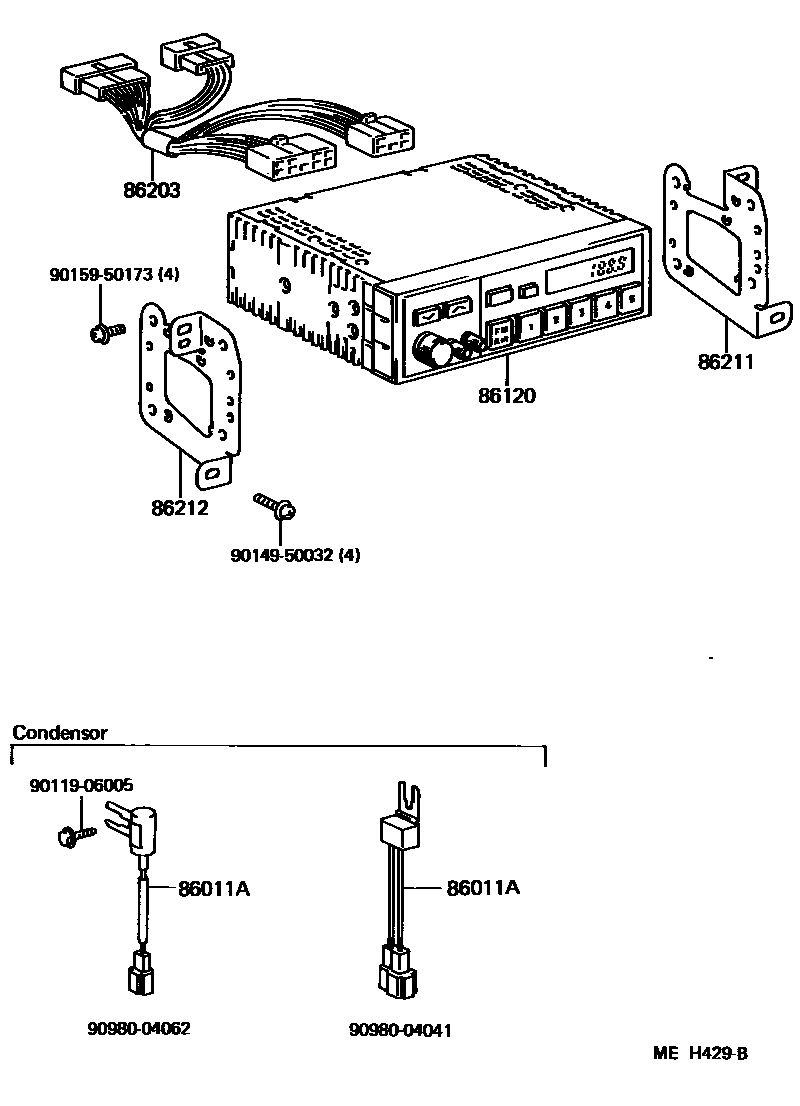

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1RADIO RECEIVER KNOB

86011ACONDENSER, RADIO SETTING

main90980-04041iVZV21198802-198808

main90980-04062iSV21198608-198808

86120RECEIVER ASSY, RADIO

main86120-20680iSV21..USA198708-198710

AM/FM MULTIPLEX

main86120-20680iVZV21;SV2#..USA198710-198808

AM/FM MPX,GEN

main86120-28030iSV21..USA198608-198708

AM/FM MULTIPLEX

main86120-32130iSV21..DX,STD198608-198710

AM/FM W/CASSET

main86120-32130iSV2#,VZV21198710-198808

AM MPX/FM MPX,CST.,USA

main86120-32210iSV21198608-198708

AM/FM MULTIPLEX

sub86120-32211

main86120-32211iSV2#,VZV21..DX,STD198710-198808

AM MPX/FM MPX USA

sub86120-32340

main86120-32211iSV21198708-198710

AM/FM MULTIPLEX

sub86120-32340

main86120-32220iSV21..SED..LE198608-198710

AM/FM W/CASSET

main86120-32220iSV2#,VZV21..SED..LE198710-198808

AM MPX/FM MPX,CST.,A.F.,USA

main86120-32230iSV21..WG..LE198710-198712

AM MPX/FM MPX,CST.,A.F.,USA

sub86120-32231

main86120-32230iSV21..WG..LE198608-198710

AM/FM W/CASSET

sub86120-32231

main86120-32231iSV21,VZV21..WG..LE198712-198808

AM MPX/FM MPX,CST.,A.F.,USA

main86120-32250iVZV21..LE;SV2#..LE..USA198710-198808

AM/FM MPX,CST.,USA

main86120-32250iSV21..LE..USA198608-198710

AM/FM

86203WIRE, RADIO

main86203-16060iSV21..USA198608-198708

86211BRACKET, RADIO, NO.1

main86211-32050iSV2#,VZV21198608-198808

sub86211-32051

86212BRACKET, RADIO, NO.2

main86212-32050iSV2#,VZV21198608-198808

sub86212-32051

9011906005

main90119-06005

9014950032

main90149-50032

9015950173

main90159-50173

9098004041

main90980-04041

9098004062

main90980-04062

10 parts on this diagram · 2 diagrams in section
