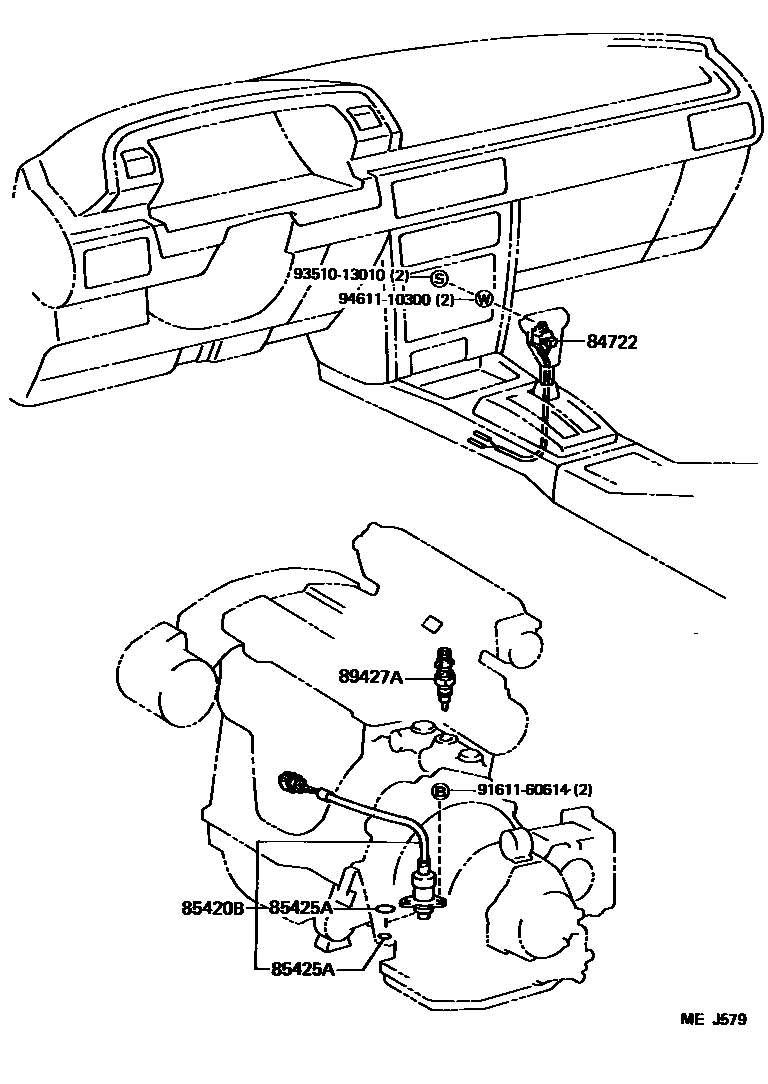

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1OVERDRIVE 0002 1ECT 0003 1ECT

84722SWITCH, TRANSMISSION CONTROL

main84722-32020-02iSV21..4FC..USA198608-198710

MAROON,MAROON,TRIM3#

sub84722-32020

sub84722-12020

main84722-32020-02iSV21,VZV21..4FC..USA198710-198807

MAROON,TRIM3#

sub84722-32020

sub84722-12020

main84722-32020-03iVZV21..4FC;SV21..WG..LE;SV21..SED..4FC;SV21..WG..4FC..DX..USA198710-198807

MEDIUM GRAY,TRIM1#

sub84722-32020

sub84722-12020

main84722-32020-03iSV21..4FC198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub84722-32020

sub84722-12020

main84722-32020-04iSV21..4FC198608-198710

BLUE,DARK BLUE,TRIM8#

sub84722-32020

sub84722-12020

main84722-32020-04iVZV21..4FC;SV21..WG..LE;SV21..SED..4FC;SV21..WG..4FC..DX..USA198710-198807

DARK BLUE,TRIM8#

sub84722-32020

sub84722-12020

main84722-32020-05iVZV21..4FC;SV21..WG..LE;SV21..SED..4FC;SV21..WG..4FC..DX..USA198710-198808

DARK BEIGE,TRIM4#

sub84722-32020

sub84722-12020

main84722-32020-05iSV21..4FC198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub84722-32020

sub84722-12020

85420SOLENOID ASSY, TRANSMISSION

main85420-32020iSV21..4FC..(DX,LE)198710-198808

AISIN

sub85420-32021

main85420-32020iSV21..4FC..(DX,LE)198608-198710

NO.1,AISIN

sub85420-32021

main85420-32030iSV21..4FC..(DX,LE)198710-198801

DENSO,NO.1

sub85420-32020

main85420-32030iSV21..4FC..(DX,LE)198608-198710

NO.1,DENSO

sub85420-32020

main85420-32040iSV21..4FC..(DX,LE)198608-198710

NO.2,AISIN

sub85420-32041

main85420-32040iSV21..4FC..(DX,LE)198710-198808

AISIN,NO.2

sub85420-32041

main85420-32050iSV21..4FC..(DX,LE)198710-198801

DENSO,NO.2

sub85420-32040

main85420-32050iSV21..4FC..(DX,LE)198608-198710

NO.2,DENSO

sub85420-32040

main85420-32071iSV21..4FC..(DX,LE)198608-198808

NO.3

sub85420-32061

main85420-32090iVZV21..4FC198802-198804

NO.1

sub85420-32103

main85420-32091iVZV21..4FC198804-198808

NO.1

sub85420-32102

main85420-32110iVZV21..4FC198802-198808

NO.2

sub85420-32120

main85420-32130iSV21..4FC..(DX,LE)198710-198801

TOYOTA,NO.1

sub85420-32020

main85420-32140iSV21..4FC..(DX,LE)198710-198801

TOYOTA, NO.2

sub85420-32041

85420BSOLENOID ASSY, TRANSMISSION

main85420-32081iSV21..4FC..STD198708-198808

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iSV21..4FC..STD198708-198808

ID=7

main96721-19017iSV21..4FC..STD198708-198808

ID=17

89427ASWITCH, TEMPERATURE

main89427-12070iSV21..4FC..STD198708

9161160614

main91611-60614

9351013010

main93510-13010

9461110300

main94611-10300

8 parts on this diagram · 3 diagrams in section
