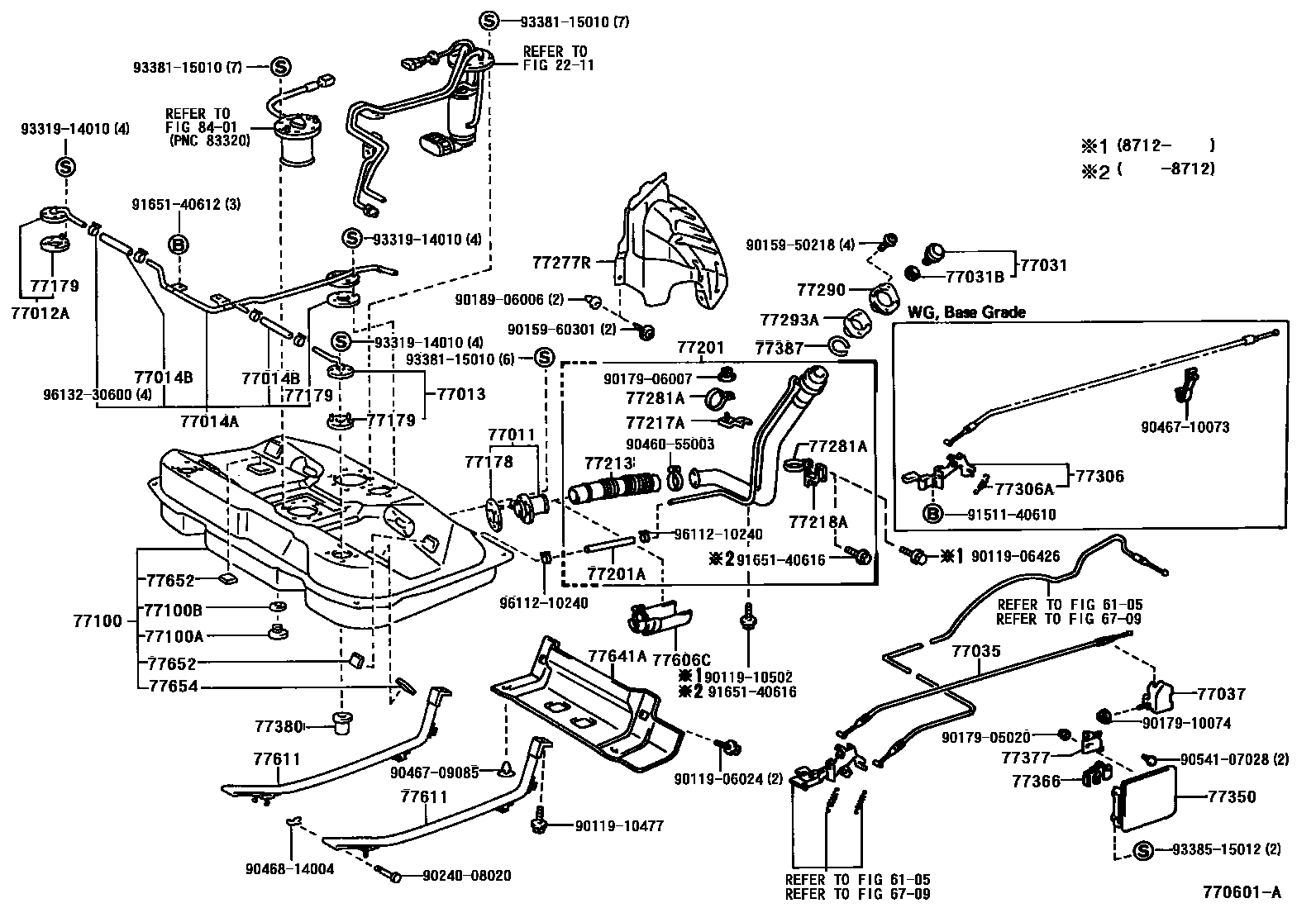

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

2211

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20010iSV21198608-198708

sub77011-20020

main77011-20020iSV21198708-198808

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-32020iSV21198608-198808

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77012-32020iSV21198608-198808

77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3

main77014-32020iSV21198608-198808

77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)

main95332-06010iSV21198608-198702

L=100

sub95333-06010

main95333-06010iSV21198702-198808

L=100

77031CAP ASSY, FUEL TANK

main77310-16010iSV21198608-198706

sub77310-16011

main77310-16011iSV21198706-198710

sub77310-12140

77031BGASKET (FOR FUEL TANK CAP)

main77316-16010iSV21198608-198710

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-32070iSV21198608-198808

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12040iSV21198608-198808

sub77037-38010

77100TANK ASSY, FUEL

main77001-39215iSV21198608-198808

sub23206-74341

sub23206-74371

sub23206-74460

sub23206-74480

sub77001-39285

sub77001-39295

sub77017-20101

sub77017-20111

sub77017-32041

sub77017-32061

main77001-39275iSV25198710-198808

77100APLUG(FOR FUEL TANK)

main90341-20004iSV21198608-198710

77100BGASKET(FOR FUEL TANK)

main90430-20007iSV21198608-198710

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iSV21198608-198808

77179RETAINER, FUEL TANK MOUNTING, FRONT

main77179-16010iSV21198608-198808

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-32040iSV21198608-198708

main77201-32080iSV21198708-198808

main77201-32100iSV25198710-198808

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22002iSV21198608-198808

L=200

77213HOSE, FUEL TANK SUB INLET

main77213-32020iSV21198608-198808

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-32020iSV21198608-198708

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-32020iSV21198608-198708

77277TUBE, FUEL RETURN, NO.1

main77255-32080iSV21198608-198808

main77255-32110iSV25198710-198808

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-32020iSV21198608-198808

main77277-32030iSV25198710-198808

77281ACLAMP, FUEL FILLER PIPE

main77281-32010iSV21198608-198708

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-32020iSV21198608-198708

main77290-32021iSV21198708-198808

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20010iSV21198608-198808

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-14040iSV21..SED..DX198612-198708

BASE GRADE

main77306-14040iSV21..WG198608-198808

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iSV21..SED..DX198612-198708

BASE GRADE

main90506-09004iSV21..WG198608-198808

77350LID ASSY, FUEL FILLER OPENING

main77350-32030iSV21198608-198808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iSV21198608-198808

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iSV21198608-198808

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iSV25198608-198808

77387RING, FUEL INLET BOX

main77391-16011iSV21198608-198808

77606CPROTECTOR, FUEL TANK, NO.2

main77606-32020iSV21,VZV21198608-198808

77611BAND, FUEL TANK

main77601-32040iSV21198608-198808

RH

main77601-32060iSV25198710-198808

RH

main77602-32030iSV21,VZV21198608-198808

LH

main77602-32050iSV25198710-198808

LH

77641APROTECTOR, FUEL TANK, NO.1

main77641-32030iSV21198608-198808

main77641-32040iSV25198710-198808

77652CUSHION, FUEL TANK, NO.1

main77651-32050iSV21198608-198808

main77651-32060iSV25198710-198808

77654CUSHION, FUEL TANK, NO.2

main77652-32030iSV21198608-198808

8401

9011906024

main90119-06024

9011906426

main90119-06426

9011910477

main90119-10477

9011910502

main90119-10502

9015950218

main90159-50218

9015960301

main90159-60301

9017905020

main90179-05020

9017906007

main90179-06007

9017910074

main90179-10074

9018906006

main90189-06006

9024008020

main90240-08020

9046055003

main90460-55003

9046709085

main90467-09085

9046710073

main90467-10073

9046814004

main90468-14004

9054107028

main90541-07028

9151140610

main91511-40610

9165140612

main91651-40612

9165140616

main91651-40616

9331914010

main93319-14010

9338115010

main93381-15010

9338515012

main93385-15012

9611210240

main96112-10240

9613230600

main96132-30600
