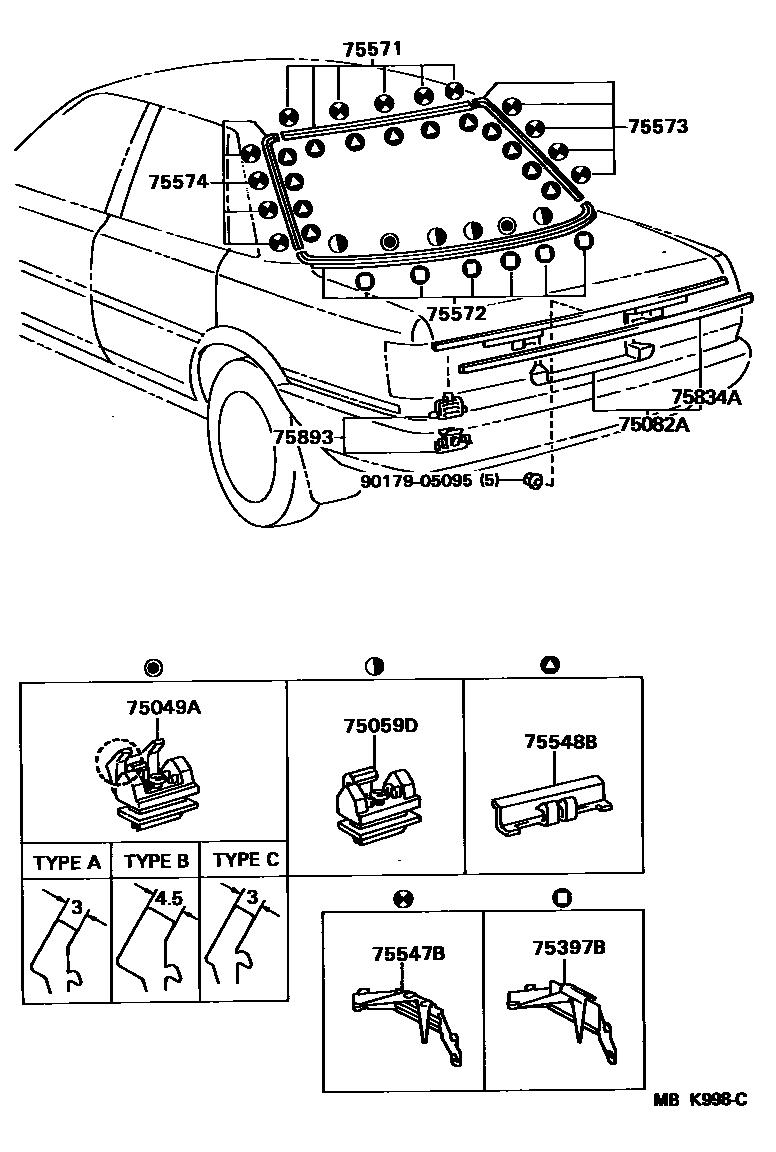

REAR MOULDING

0001 1 0002 1

75049ACLIP SUB-ASSY, OUTSIDE MOULDING, NO.2

main75049-32010×2iSV21..SED198608-198710

TYPE A

main75049-32050×2iSV2#..SED;VZV21..DX;VZV21..SED..LE198710-198808

TYPE B

main75049-32060×2iSV21..SED198608-198710

TYPE C

75059DCLIP SUB-ASSY, OUTSIDE MOULDING, NO.3

main75059-32010×4iSV21..SED198608-198710

75082APANEL SUB-ASSY, LUGGAGE DOOR FINISH

main75082-32100iSV21..SED198608-198710

75397BCLIP, BACK WINDOW MOULDING, NO.3

main75397-32010×6iSV21198608-198710

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-32010×13iSV21198708-198710

75548BFASTENER, BACK WINDOW OUTSIDE MOULDING

main75548-20060×13iSV21..SED198608-198710

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-32030iSV21..SED198608-198710

main75573-32040iSV21,VZV21..WG198710-198808

75572MOULDING, BACK WINDOW, LOWER

main75507-32010iSV21..SED198608-198710

main75575-32040iSV21..WG198608-198710

75573MOULDING, BACK WINDOW SIDE, RH

main75501-32010iSV2#..SED;VZV21..DX;VZV21..SED..LE198710-198808

75574MOULDING, BACK WINDOW SIDE, LH

main75502-32010iSV21..SED198608-198710

75834AMOULDING, LOWER BACK FINISH PANEL

main75834-32020iSV21..SED198708-198710

75893RETAINER, LUGGAGE DOOR MOULDING

main75893-32010×4iSV2#,VZV21..SED198710-198808

9017905095

main90179-05095

13 parts on this diagram · 2 diagrams in section
