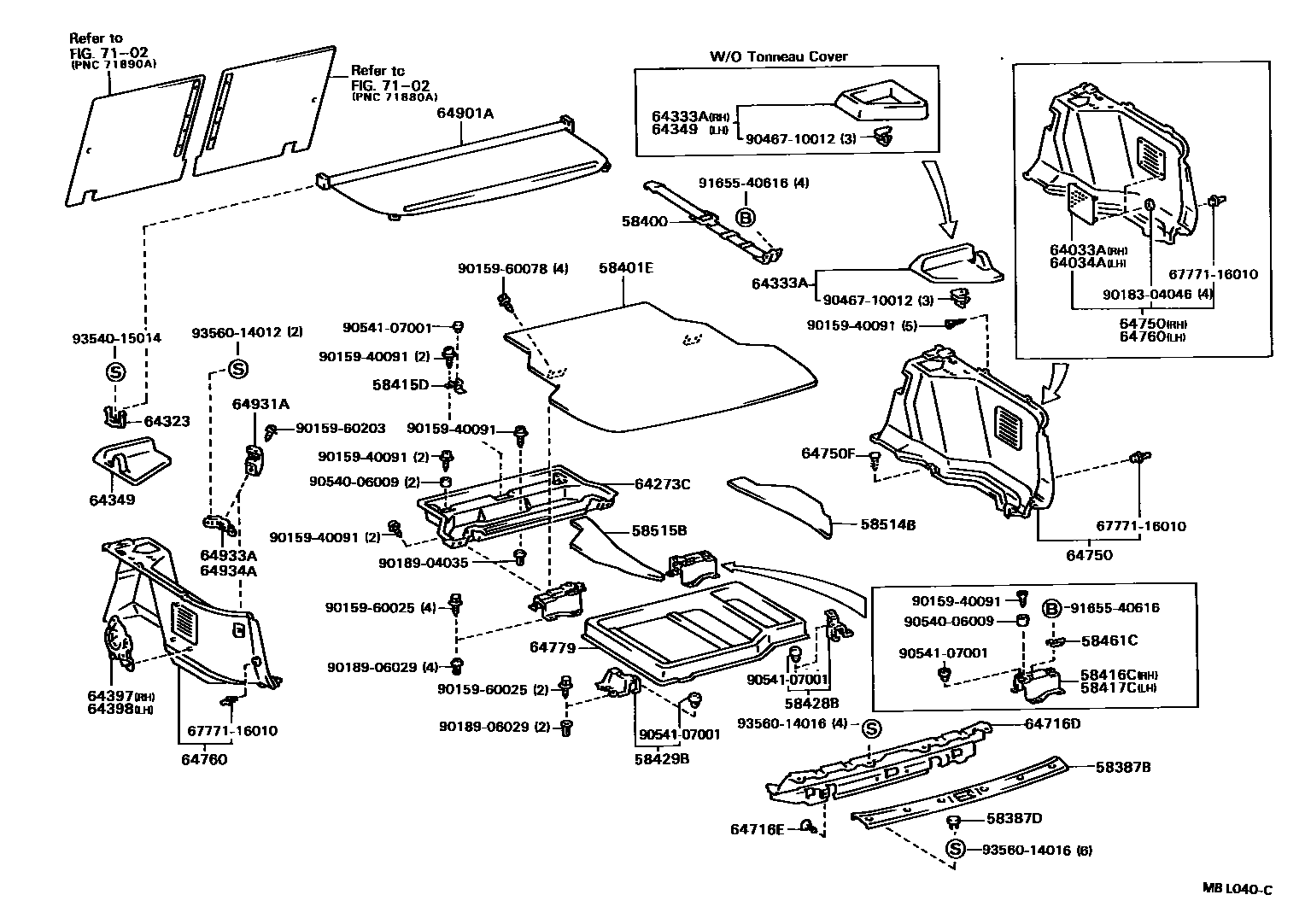

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58387DPLUG, HOLE(FOR REAR FLOOR FINISH PLATE)
58400BELT ASSY, LUGGAGE HOLD, NO.1
MAROON,MAROON,TRIM3#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
58401EBOARD SUB-ASSY, DECK
MAROON,MAROON,TRIM3#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
58415DBRACKET, DECK BOARD SUPPORT
58416CBRACKET, DECK BOARD, NO.1 RH
58417CBRACKET, DECK BOARD, NO.1 LH
58428BBRACKET, DECK BOARD, NO.5 RH
58429BBRACKET, DECK BOARD, NO.5 LH
58461CSTRIKER, LUGGAGE HOLD BELT
58514BMAT, FLOOR, REAR RH
BLACK,BLACK
BLACK,TRIM1#,3#,4#,8#
58515BMAT, FLOOR, REAR LH
BLACK,BLACK
BLACK,TRIM1#,3#,4#,8#
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
64273CPOCKET, BACK PANEL TRIM
BLACK,TRIM1#,3#,4#,8#
BLACK,BLACK
64323CLAMP, PACKAGE TRAY TRIM, NO.1
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
64333ACOVER, TONNEAU SIDE, RH
W(REAR CARGO DECK COVER),MAROON,TRIM3#
sub64333-32030
W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1#
sub64333-32030
W(REAR CARGO DECK COVER),DARK BLUE,TRIM8#
sub64333-32030
W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4#
sub64333-32030
64349COVER, TONNEAU SIDE, LH
W(REAR CARGO DECK COVER),MAROON,TRIM3#
sub64349-32020
W(REAR CARGO DECK COVER),MEDIUM GRAY,TRIM1#
sub64349-32020
W(REAR CARGO DECK COVER),DARK BLUE,TRIM8#
sub64349-32020
W(REAR CARGO DECK COVER),DARK BEIGE,TRIM4#
sub64349-32020
64397HOLDER, TONNEAU COVER SIDE, RH
64398HOLDER, TONNEAU COVER SIDE, LH
64716DCOVER, DECK TRIM, REAR
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
MAROON,TRIM3#
MAROON,MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
64716ECLIP(FOR DECK TRIM REAR COVER)
64750PANEL ASSY, DECK SIDE TRIM, RH
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
GRAY,MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64760PANEL ASSY, DECK SIDE TRIM, LH
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
64779TRAY, SPARE WHEEL COVER
BLACK,BLACK
BLACK,TRIM1#,3#,4#,8#
64901ARETRACTOR SUB-ASSY, TONNEAU COVER
64931AHANGER, TONNEAU COVER
64933ABRACKET, TONNEAU COVER HOLDER, RH
64934ABRACKET, TONNEAU COVER HOLDER, LH
7102
6777116010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16010
9015940091
main90159-40091
9015960025
main90159-60025
9015960078
main90159-60078
9015960203
main90159-60203
9018304046
main90183-04046
9018904035
main90189-04035
9018906029
main90189-06029
9046710012
main90467-10012
9054006009
main90540-06009
9054107001
main90541-07001
9165540616
main91655-40616
9354015014
main93540-15014
9356014012
main93560-14012
9356014016
main93560-14016
46 parts on this diagram · 1 diagram in section
