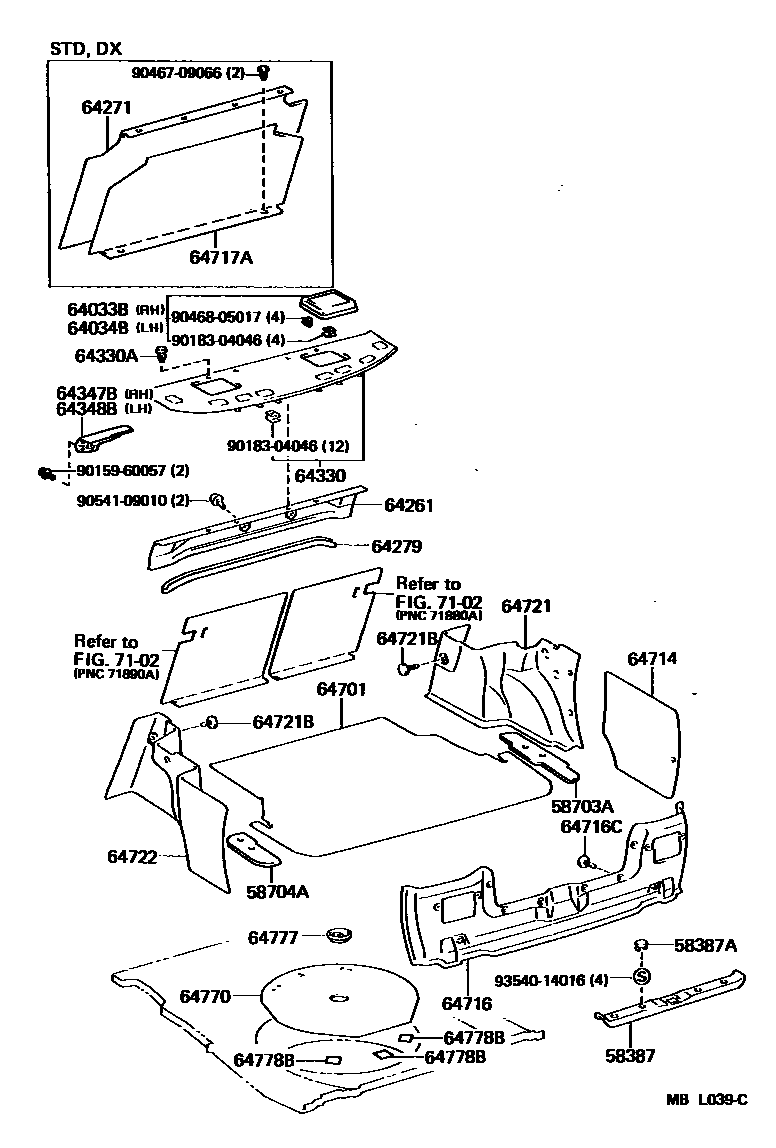

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-32020-03iSV2#,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main58387-32020-03iSV21..SED198608-198710

GRAY,LIGHT GRAY,TRIM1#

58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-05iSV25..LE;SV21,VZV21..SED198710-198807

DARK BEIGE,TRIM4#

sub90950-01503

main90950-01503-12iSV2#,VZV21..SED..USA198710-198807

MAROON,TRIM3#

sub90950-01503

main90950-01503-13iSV2#,VZV21..SED198710-198807

MEDIUM GRAY,TRIM1#

sub90950-01503

main90950-01503-14iSV2#,VZV21..SED198710-198807

DARK BLUE,TRIM8#

sub90950-01503

main90950-01503-23iSV21..SED198608-198710

GRAY,LIGHT GRAY,TRIM1#

sub90950-01503

main90950-01503-23iSV2#,VZV21..SED198710-198807

LIGHT GRAY,TRIM1#,3#,4#,8#

sub90950-01503

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-32010iSV21,VZV21..SED198608-198808

main58703-32020iSV25198710-198808

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-32010iSV21..SED198608-198808

main58704-32040iSV25198710-198808

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22040-02iSV2#,VZV21..SED..(DX,STD)..USA198710-198808

MAROON,TRIM3#

main64033-22040-02iSV21..SED..USA198608-198710

MAROON,MEDIUM GRAY,TRIM3#

main64033-22040-03iSV21..SED..(DX,STD)..CND198710-198808

MEDIUM GRAY,TRIM1#

main64033-22040-03iSV21..SED198608-198710

GRAY,MEDIUM GRAY,TRIM1#

main64033-22040-04iSV2#,VZV21..SED..(DX,STD)..USA198710-198808

DARK BLUE,TRIM8#

main64033-22040-04iSV21..SED198608-198710

BLUE,DARK BLUE,TRIM8#

main64033-22040-05iSV21,VZV21..SED..(DX,STD)..USA198710-198808

DARK BEIGE,TRIM4#

main64033-22040-05iSV21..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22040-02iSV2#,VZV21..SED..(DX,STD)..USA198710-198808

MAROON,TRIM3#

main64033-22040-02iSV21..SED..USA198608-198710

MAROON,MEDIUM GRAY,TRIM3#

main64033-22040-03iSV21..SED..(DX,STD)..CND198710-198808

MEDIUM GRAY,TRIM1#

main64033-22040-03iSV21..SED198608-198710

GRAY,MEDIUM GRAY,TRIM1#

main64033-22040-04iSV2#,VZV21..SED..(DX,STD)..USA198710-198808

DARK BLUE,TRIM8#

main64033-22040-04iSV21..SED198608-198710

BLUE,DARK BLUE,TRIM8#

main64033-22040-05iSV21,VZV21..SED..(DX,STD)..USA198710-198808

DARK BEIGE,TRIM4#

main64033-22040-05iSV21..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

64261GARNISH, ROOM PARTITION

main64261-32010-02iSV2#,VZV21..SED..LE..USA198710-198808

MAROON,TRIM3#

sub64261-32010

main64261-32010-02iSV21..SED..LE..USA198608-198710

MAROON,MAROON,TRIM3#

sub64261-32010

main64261-32010-03iSV21..SED..LE198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub64261-32010

main64261-32010-03iSV2#,VZV21..SED..LE198710-198808

MEDIUM GRAY,TRIM1#

sub64261-32010

main64261-32010-04iSV21..SED..LE198608-198710

BLUE,DARK BLUE,TRIM8#

sub64261-32010

main64261-32010-04iSV2#,VZV21..SED..LE198710-198808

DARK BLUE,TRIM8#

sub64261-32010

main64261-32010-05iSV2#,VZV21..SED..LE198710-198808

DARK BEIGE,TRIM4#

sub64261-32010

main64261-32010-05iSV21..SED..LE198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub64261-32010

64271BOARD, ROOM PARTITION, NO.1

main64271-32030iSV21..SED..(DX,STD)198608-198808

64279PROTECTOR, ROOM PARTITION

main64279-32020-02iSV2#,VZV21..SED..LE..USA198710-198808

MAROON,TRIM3#

main64279-32020-02iSV21..SED..LE..USA198608-198710

MAROON,MAROON,TRIM3#

main64279-32020-03iSV2#,VZV21..SED..LE198710-198808

MEDIUM GRAY,TRIM1#

main64279-32020-03iSV21..SED..LE198608-198710

GRAY,MEDIUM GRAY,TRIM1#

main64279-32020-04iSV2#,VZV21..SED..LE198710-198808

DARK BLUE,TRIM8#

main64279-32020-04iSV21..SED..LE198608-198710

BLUE,DARK BLUE,TRIM8#

main64279-32020-05iSV2#,VZV21..SED..LE198710-198808

DARK BEIGE,TRIM4#

main64279-32020-05iSV21..SED..LE198608-198710

BEIGE,DARK BEIGE,TRIM4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-32120-02iSV21..SED..DX..USA198612-198708

BASE GRADE,MAROON,MAROON,TRIM3#

sub64330-32120

main64330-32120-03iSV21..SED..DX198612-198708

BASE GRADE,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32120

main64330-32120-04iSV21..SED..DX198612-198708

BASE GRADE,BLUE,DARK BLUE,TRIM8#

sub64330-32120

main64330-32120-05iSV21..SED..DX198612-198708

BASE GRADE,BEIGE,DARK BEIGE,TRIM4#

sub64330-32120

main64330-32140-02iSV21..SED..DX..USA198608-198707

W/O SPEAKER GRILLE,MAROON,MAROON,TRIM3#

sub64330-32140

main64330-32140-03iSV21..SED..DX198608-198707

W/O SPEAKER GRILLE,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32140

main64330-32140-04iSV21..SED..DX198608-198707

W/O SPEAKER GRILLE,BLUE,DARK BLUE,TRIM8#

sub64330-32140

main64330-32140-05iSV21..SED..DX198608-198707

W/O SPEAKER GRILLE,BEIGE,DARK BEIGE,TRIM4#

sub64330-32140

main64330-32142-02iSV21..SED..(DX,STD)..USA198707-198710

W/O SPEAKER GRILLE,MAROON,MAROON,TRIM3#

sub64330-32142

main64330-32142-02iSV2#,VZV21..SED..(DX,STD)..USA198712-198808

MAROON,TRIM3#

sub64330-32142

main64330-32142-03iSV21..SED..(DX,STD)198707-198710

W/O SPEAKER GRILLE,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32142

main64330-32142-03iSV2#,VZV21..SED..(DX,STD)198712-198808

MEDIUM GRAY,TRIM1#

sub64330-32142

main64330-32142-04iSV21..SED..DX198707-198710

W/O SPEAKER GRILLE,BLUE,DARK BLUE,TRIM8#

sub64330-32142

main64330-32142-04iSV2#,VZV21..SED..(DX,STD)198712-198808

DARK BLUE,TRIM8#

sub64330-32142

main64330-32142-05iSV21..SED..DX198707-198710

W/O SPEAKER GRILLE,BEIGE,DARK BEIGE,TRIM4#

sub64330-32142

main64330-32142-05iSV21,VZV21..SED..(DX,STD)198712-198808

DARK BEIGE,TRIM4#

sub64330-32142

main64330-32230-02iSV21..SED..USA198608-198707

W/SPEAKER GRILLE,MAROON,MAROON,TRIM3#

sub64330-32230

main64330-32230-03iSV21..SED198608-198707

W/SPEAKER GRILLE,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32230

main64330-32230-04iSV21..SED198608-198707

W/SPEAKER GRILLE,BLUE,DARK BLUE,TRIM8#

sub64330-32230

main64330-32230-05iSV21..SED198608-198707

W/SPEAKER GRILLE,BEIGE,DARK BEIGE,TRIM4#

sub64330-32230

main64330-32232-02iSV2#,VZV21..SED..LE..USA198710-198808

W(SPEAKER GRILLE),MAROON,TRIM3#

sub64330-32232

main64330-32232-02iSV2#,VZV21..SED..LE..USA198710-198808

MAROON,TRIM3#

sub64330-32232

main64330-32232-02iSV21..SED..USA198707-198710

W/SPEAKER GRILLE,MAROON,MAROON,TRIM3#

sub64330-32232

main64330-32232-03iSV2#,VZV21..SED..(DX,STD)..USA198710-198808

W(SPEAKER GRILLE),MEDIUM GRAY,TRIM1#

sub64330-32232

main64330-32232-03iSV2#,VZV21..SED..LE198710-198808

MEDIUM GRAY,TRIM1#

sub64330-32232

main64330-32232-03iSV21..SED198707-198710

W/SPEAKER GRILLE,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32232

main64330-32232-04iSV21..SED..(DX,STD)..CND198710-198808

DARK BLUE,TRIM8#

sub64330-32232

main64330-32232-04iSV21..SED198707-198710

W/SPEAKER GRILLE,BLUE,DARK BLUE,TRIM8#

sub64330-32232

main64330-32232-04iSV2#,VZV21..SED..LE198710-198808

W(SPEAKER GRILLE),DARK BLUE,TRIM8#

sub64330-32232

main64330-32232-05iSV21..SED..(DX,STD)..CND198710-198808

DARK BEIGE,TRIM4#

sub64330-32232

main64330-32232-05iSV21..SED..(DX,STD)..CND198710-198808

W(SPEAKER GRILLE),DARK BEIGE,TRIM4#

sub64330-32232

main64330-32232-05iSV21..SED198707-198710

W/SPEAKER GRILLE,BEIGE,DARK BEIGE,TRIM4#

sub64330-32232

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-05iSV21..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-05iSV25..LE;SV21,VZV21..SED198710-198808

DARK BEIGE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-12iSV21..SED..USA198608-198710

MAROON,MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-12iSV2#,VZV21..SED..USA198710-198807

MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-13iSV21..SED198608-198710

GRAY,MEDIUM GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-13iSV2#,VZV21..SED198710-198807

MEDIUM GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-24iSV2#,VZV21..SED198710-198807

DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

main90467-08046-24iSV21..SED198608-198710

BLUE,DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH

main64347-32020iSV21..SED198608-198808

64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH

main64348-32010iSV21..SED198608-198808

sub64348-32020

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-32030-03iSV21..STD198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64711-32030-03iSV21..SED..DX198612-198708

BASE GRADE,GRAY,LIGHT GRAY,TRIM1#

main64711-32030-03iSV21..STD198708-198710

GRAY,LIGHT GRAY,TRIM1#

main64711-32040-03iSV21..SED198608-198710

GRAY,LIGHT GRAY,TRIM1#

main64711-32040-03iSV21,VZV21..SED..(DX,LE)198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-32040-03iSV21,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64714-32040-03iSV21..SED198608-198710

GRAY,LIGHT GRAY,TRIM1#

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-32040-03iSV21,VZV21..SED..(DX,STD)198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

sub64716-32050

main64716-32040-03iSV21..SED..(DX,STD)198608-198710

GRAY,LIGHT GRAY,TRIM1#

sub64716-32050

main64716-32050-03iSV21..SED..LE198608-198710

GRAY,LIGHT GRAY,TRIM1#

main64716-32050-03iSV21,VZV21..SED..LE198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64716-32120-03iSV25..DX198710-198808

LIGHT GRAY,TRIM1#,3#,8#

main64716-32130-03iSV25..LE198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33iSV21..SED198608-198710

GRAY,GRAY,TRIM1#

sub90467-05004

main90467-05004-33iSV2#,VZV21..SED198710-198808

GRAY,TRIM1#,3#,4#,8#

sub90467-05004

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-32030-03iSV21..SED..(DX,STD)198608-198710

GRAY,LIGHT GRAY,TRIM1#

main64717-32030-03iSV21,VZV21..SED..(DX,STD)198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64717-32040-03iSV25..DX198710-198808

LIGHT GRAY,TRIM1#,3#,8#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-32050-03iSV21..SED198608-198708

GRAY,LIGHT GRAY,TRIM1#

main64721-32110-03iSV21..SED198708-198710

GRAY,LIGHT GRAY,TRIM1#

main64721-32110-03iSV21,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64721-32120-03iSV25..LE198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64721-32130-03iSV25..DX198710-198808

GRAY,TRIM1#,3#,8#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main90467-07042-03iSV2#,VZV21..SED..(DX,STD)198710-198807

GRAY,TRIM1#,3#,4#,8#

sub90467-07042

sub90467-06175

main90467-07042-03iSV21..SED198608-198710

GRAY,GRAY,TRIM1#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-32050-03iSV21..SED198608-198708

GRAY,LIGHT GRAY,TRIM1#

main64722-32110-03iSV21,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64722-32110-03iSV21..SED198708-198710

GRAY,LIGHT GRAY,TRIM1#

main64722-32120-03iSV25..LE198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64722-32130-03iSV25..DX198710-198808

GRAY,TRIM1#,3#,8#

64770COVER ASSY, SPARE WHEEL

main64770-32060iSV25198710-198808

main64771-32040iSV21,VZV21..SED198608-198808

64777CLAMP, SPARE WHEEL COVER

main64777-32020iSV21..SED198608-198612

sub64777-32030

main64777-32030iSV21..SED198612-198808

64778BPROTECTOR, SPARE WHEEL

main64778-14020iSV21..SED..DX198612-198708

BASE GRADE

main64778-14020iSV21..STD198708-198808

7102

9015960057

main90159-60057

9018304046

main90183-04046

9046709066

main90467-09066

9046805017

main90468-05017

9054109010

main90541-09010

9354014016

main93540-14016

31 parts on this diagram · 2 diagrams in section
