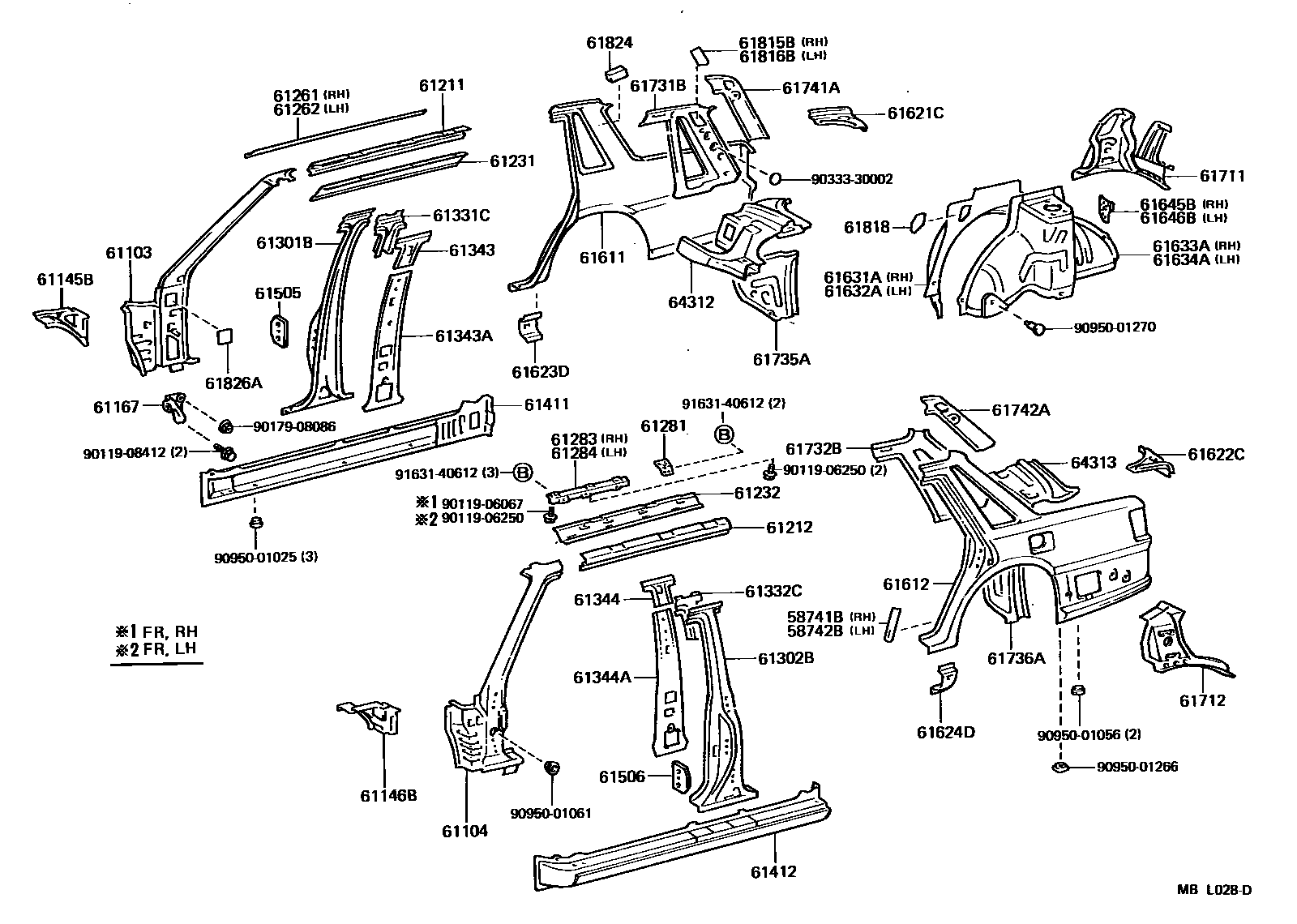

SIDE MEMBER

0001 1 0002 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12060iSV2#,VZV21198712-198808

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iSV2#,VZV21198712-198808

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-32230iSV21..STD..CND;SV2#,VZV21..USA198608-198808

main61021-32330iSV2#,VZV21..(DX,LE)..CND198608-198808

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-32260iSV21..STD..CND;SV2#..(DX,STD)..USA198608-198808

main61022-32270iVZV21..USA;SV2#..LE..USA198608-198808

main61022-32340iSV21..(DX,STD)..CND198608-198808

main61022-32350iSV21..LE..CND198608-198808

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-32010iSV21198608-198808

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-32010iSV21198608-198808

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-32010iSV2#,VZV21198608-198808

61211RAIL, ROOF SIDE, OUTER RH

main61211-32030iSV21..SED198608-198808

main61211-32040iSV21..WG198608-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-32030iSV21..SED198608-198808

main61212-32040iSV21,VZV21..WG198608-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-32100iSV21..SED..USA198608-198808

main61231-32140iSV21..SED..CND198608-198808

main61231-32160iSV21,VZV21..WG..CND198708-198808

main61231-32170iSV21..WG..CND198608-198708

sub61231-32160

main61231-32190iSV21..WG..USA198608-198808

61232RAIL, ROOF SIDE, INNER LH

main61232-32100iSV2#,VZV21..SED..USA198608-198808

main61232-32140iSV21..SED..CND198608-198808

main61232-32160iSV21,VZV21..WG..CND198708-198808

main61232-32170iSV21..WG..CND198608-198708

sub61232-32160

main61232-32190iSV21..WG..USA198608-198808

61261CHANNEL, ROOF DRIP, RH

main61261-32030iSV2#,VZV21..SED198608-198808

main61261-32040iSV21..WG198608-198808

61262CHANNEL, ROOF DRIP, LH

main61262-32030iSV2#,VZV21..SED198608-198808

main61262-32040iSV21,VZV21..WG198608-198808

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-32030iSV21..SED..LE198608-198808

main61281-32040iSV21..WG..LE..USA198608-198808

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-32030iSV21..SED..(DX,LE)198608-198808

main61283-32040iSV21..WG198608-198808

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-32030iSV21..SED..LE198608-198808

main61284-32040iSV21..WG..LE..USA198608-198808

61301BPILLAR, CENTER BODY, OUTER RH

main61301-32900iSV21198608-198808

61302BPILLAR, CENTER BODY, OUTER LH

main61302-32900iSV21198608-198808

61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH

main61331-32010iSV2#,VZV21198608-198808

61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH

main61332-32010iSV21198608-198808

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-32030iSV2#,VZV21..USA198608-198808

main61341-32040iSV21..CND198608-198808

61343APILLAR, CENTER BODY, INNER RH

main61343-32900iSV21..CND198608-198808

main61343-32901iVZV21;SV2#..USA198608-198808

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-32030iSV2#,VZV21..USA198608-198808

main61342-32040iSV21..CND198608-198808

61344APILLAR, CENTER BODY, INNER LH

main61344-32900iSV21..CND198608-198808

main61344-32901iSV2#,VZV21..USA198608-198808

61411PANEL, ROCKER, OUTER RH

main61401-32060iSV21198608-198808

sub61401-32080

61412PANEL, ROCKER, OUTER LH

main61402-32080iSV21198608-198808

sub61402-32060

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-32020iSV21198608-198808

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61505-32020iSV21198608-198808

61611PANEL, QUARTER, RH

main61601-32903iSV21..SED198608-198710

W/O MUDGUARD

sub61601-32923

sub90950-01266

main61601-32903iSV2#,VZV21..SED..CND198710-198808

sub61601-32923

sub90950-01266

main61601-32904iSV2#,VZV21..SED..USA198710-198808

W(MUD GUARD)

sub61601-32923

sub90950-01266

main61601-32904iSV21..SED198608-198710

W/MUDGUARD

sub61601-32923

sub90950-01266

main61601-32909iSV21..WG198608-198808

main61601-32916iSV2#,VZV21..SED..USA198808-198808

W(MUD GUARD)

61612PANEL, QUARTER, LH

main61602-32904iSV21..SED..(DX,STD)..CND198710-198808

sub61602-32939

sub90950-01266

main61602-32904iSV21..SED..(DX,STD)198608-198710

W/O MUDGUARD

sub61602-32939

sub90950-01266

main61602-32905iSV21..SED..(DX,STD)..CND198710-198808

W(MUD GUARD)

sub61602-32939

sub90950-01266

main61602-32905iSV21..SED..(DX,STD)198608-198710

W/MUDGUARD

sub61602-32939

sub90950-01266

main61602-32906iSV21..SED..LE198608-198710

W/MUD GUARD

sub61602-32941

sub90950-01266

main61602-32906iSV2#,VZV21..SED..LE..USA198710-198808

W(MUD GUARD)

sub61602-32941

sub90950-01266

main61602-32914iSV21..WG..DX198608-198808

main61602-32916iSV21,VZV21..WG..LE198608-198808

main61602-32923iSV21..SED..LE198608-198710

W/O MUDGUARD

sub61602-32941

sub90950-01266

main61602-32923iSV2#,VZV21..SED..LE..CND198710-198808

sub61602-32941

sub90950-01266

main61602-32926iSV21..SED..(DX,STD)..CND198808-198808

W(MUD GUARD)

main61602-32927iSV2#,VZV21..SED..LE..USA198808-198808

W(MUD GUARD)

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-32030iSV2#,VZV21..SED198608-198808

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-32030iSV21..SED198608-198808

61623DEXTENSION, QUARTER PANEL, FRONT RH

main61623-32020iSV2#,VZV21198608-198808

sub61623-32021

61624DEXTENSION, QUARTER PANEL, FRONT LH

main61624-32020iSV21198608-198808

sub61624-32021

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-32030iSV2#,VZV21..SED198710-198808

main61631-32050iSV21,VZV21..WG198710-198808

main61631-32900iSV21..SED198608-198710

sub61631-32030

sub61645-32030

main61631-32901iSV21..WG198608-198710

sub61631-32050

sub61645-32030

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-32030iSV2#,VZV21..SED198710-198808

main61632-32050iSV21,VZV21..WG198710-198808

main61632-32900iSV21..SED198608-198710

sub61632-32030

sub61646-32020

main61632-32901iSV21..WG198608-198710

sub61632-32050

sub61646-32020

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-32902iSV21..SED..(DX,STD)198708-198808

main61603-32903iSV21..SED..LE198708-198808

main61603-32904iSV21..SED..DX198608-198708

sub61603-32902

sub90333-25001

main61603-32905iSV21..SED..LE198608-198708

sub61603-32903

sub90333-25001

main61603-32906iSV21,VZV21..WG198708-198808

main61603-32907iSV21..WG198608-198708

sub61603-32906

sub90333-25001

main61603-32908iSV25198710-198808

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-32902iSV21,VZV21..SED..(DX,STD)198708-198808

main61604-32903iSV21..SED..LE198708-198808

main61604-32904iSV21..SED..DX198608-198708

sub61604-32902

sub90333-25001

main61604-32905iSV21..SED..LE198608-198708

sub61604-32903

sub90333-25001

main61604-32906iSV21,VZV21..WG198708-198808

main61604-32907iSV21..WG198608-198708

sub61604-32906

sub90333-25001

main61604-32908iSV25198710-198808

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-32030iSV21,VZV21198710-198808

main61645-32040iSV25198710-198808

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-32020iSV21,VZV21198710-198808

main61646-32030iSV25198710-198808

61711PANEL, ROOF SIDE, OUTER RH

main61711-32900iSV21..SED198608-198808

main61711-32901iSV21..WG198608-198808

61712PANEL, ROOF SIDE, OUTER LH

main61712-32900iSV21..SED198608-198808

main61712-32901iSV21..WG198608-198808

61731BPANEL, ROOF SIDE, INNER RH

main61731-32030iSV2#,VZV21..SED198710-198808

main61731-32030iSV21..SED198608-198710

W/O SUN ROOF

main61731-32040iSV21..SED..LE198608-198710

W/SUN ROOF

main61731-32040iSV2#,VZV21..SED..(DX,LE)198710-198808

W(MOON ROOF)

main61731-32901iSV21,VZV21..WG198608-198808

61732BPANEL, ROOF SIDE, INNER LH

main61732-32030iSV21..SED198608-198710

W/O SUN ROOF

main61732-32030iSV2#..SED..LE198710-198808

main61732-32040iSV21..SED..LE198608-198710

W/SUN ROOF

main61732-32040iSV25;SV21..SED..5F..DX;SV21..5F..LE..CND;SV21..SED..4FC..(DX,LE)198710-198808

W(MOON ROOF)

main61732-32901iSV21..WG198608-198808

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-32030iSV21..WG198608-198808

main61735-32901iSV21..SED198608-198808

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-32030iSV21..WG198608-198808

main61736-32901iSV2#,VZV21..SED198608-198808

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-32040iSV21..WG198608-198808

main61741-32900iSV21..SED198608-198808

61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH

main61742-32030iSV21,VZV21..WG198608-198808

main61742-32900iSV21..SED..5F;SV21..4FC..STD;SV25,VZV21..SED198608-198808

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-32020iSV21..SED198608-198808

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61815-32020iSV21..SED198608-198808

61818COVER, ROOF SIDE, INNER UPPER

main61817-32020iSV21198608-198808

61824PLATE, NOISE CONTROL, NO.1

main61824-12010iSV21..WG198608-198808

sub62939-23010

61826APLATE, NOISE CONTROL, NO.3

main61826-32010iSV21198608-198701

sub62939-23010

main62939-23010iSV21198701-198808

sub61824-12110

64312BRACKET, PACKAGE TRAY, RH

main64312-32900iSV21..SED198608-198808

64313BRACKET, PACKAGE TRAY, LH

main64313-32900iSV21..SED198608-198808

9011906067

main90119-06067

9011906250

main90119-06250

9011908412

main90119-08412

9017908086

main90179-08086

9033330002

main90333-30002

9095001025

main90950-01025

9095001056

main90950-01056

9095001061

main90950-01061

9095001266

main90950-01266

9095001270

main90950-01270

9163140612

main91631-40612

66 parts on this diagram · 2 diagrams in section
