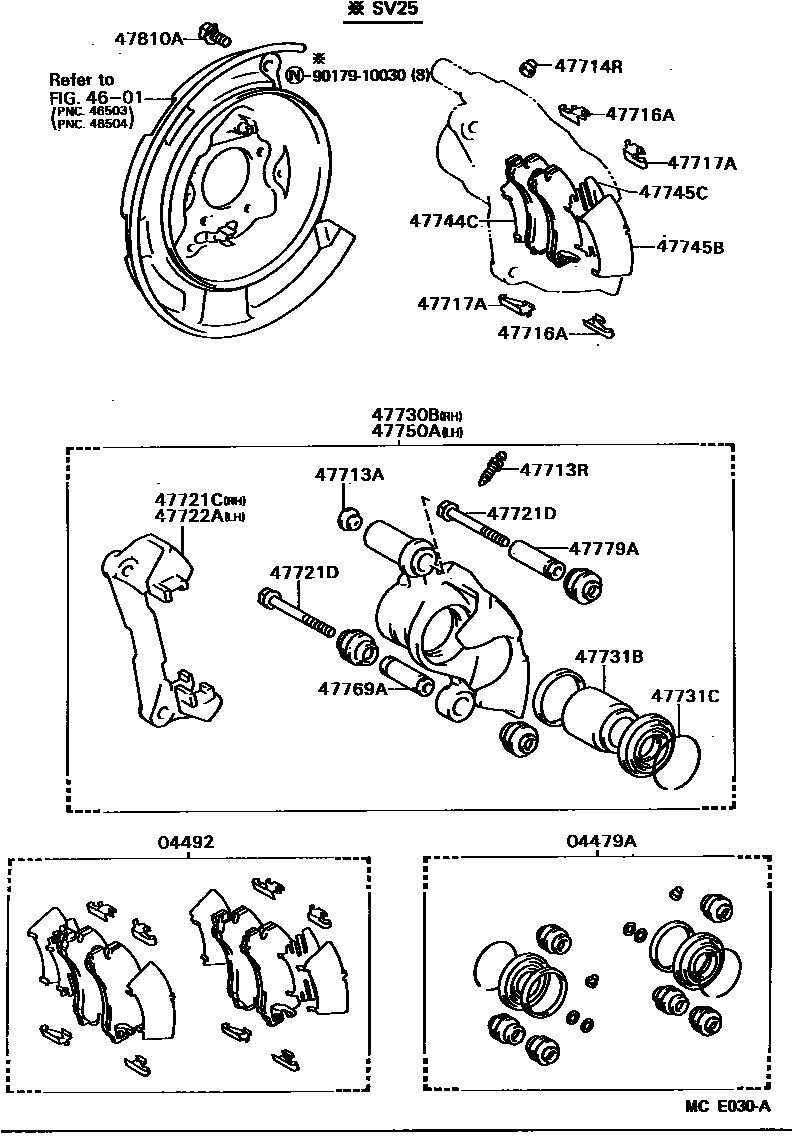

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20120iSV25,VZV21198710-198808

sub04479-33040

04492PAD KIT, DISC BRAKE, REAR

main04492-20030iSV25..LE198710-198808

W(ANTI-LOCK BRAKE SYSTEM)

sub04466-20080

main04492-32011iSV25,VZV21198710-198808

sub04466-33010

4601

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01538iSV25,VZV21198710-198808

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iSV25,VZV21198710-198808

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iSV25,VZV21198710-198808

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32020iSV25,VZV21198710-198808

sub47716-33070

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32020iSV25,VZV21198710-198808

sub47717-33050

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-32040iSV25,VZV21198710-198808

sub47721-33070

sub47715-33020

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08133iSV25,VZV21198710-198808

*8-1.25PX58-25,*8-1.25PX58-25

main90119-08547iSV25,VZV21198710-198808

*8-1.25PX68-30,*8-1.25PX68-30

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-32040iSV25,VZV21198710-198808

sub47721-33070

sub47715-33020

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20260iSV25,VZV21198710-198808

sub47730-33100

47731BPISTON, REAR DISC BRAKE

main47731-20130iSV25,VZV21198710-198808

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43003iSV25,VZV21198710-198808

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-32021iSV25,VZV21198710-198808

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-32030iSV25,VZV21198710-198808

47745CSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32031iSV25,VZV21198710-198808

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20260iSV25,VZV21198710-198808

sub47750-33100

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-32020iSV25,VZV21198710-198808

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32020iSV25,VZV21198710-198808

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iVZV21198802-198808

main90119-10445iSV25198711-198808

9017910030

main90179-10030

22 parts on this diagram · 2 diagrams in section
