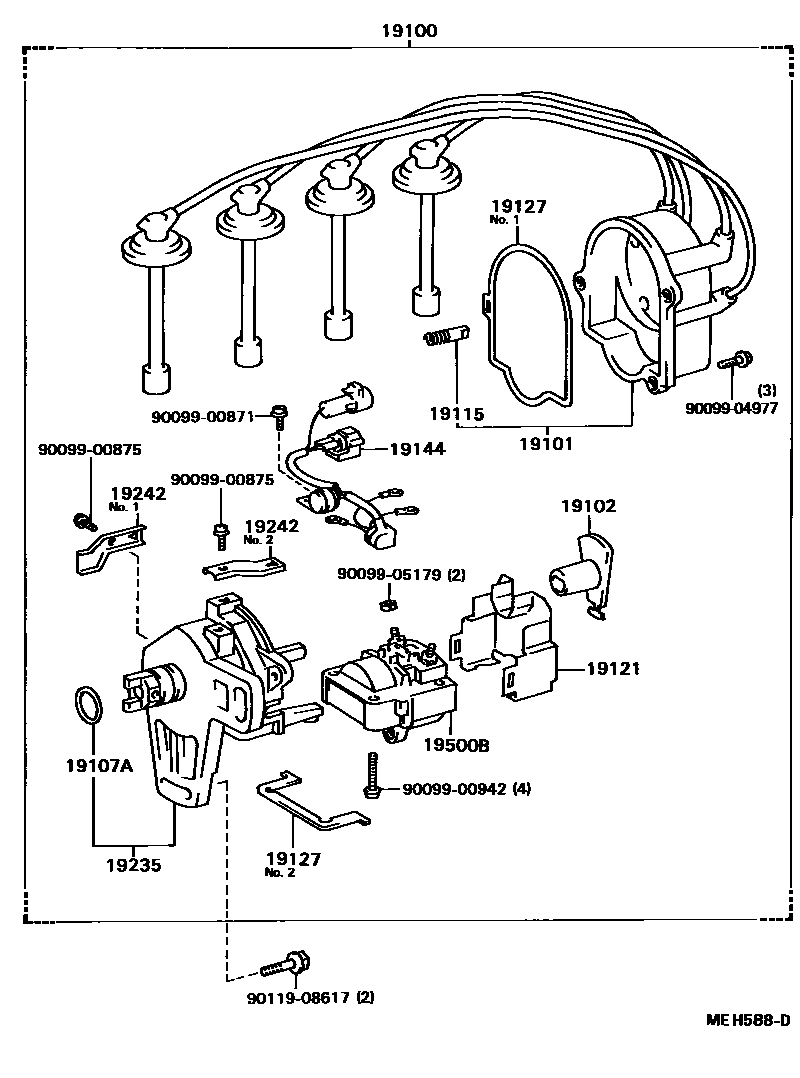

DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19040-74030i3SFE..SV21198608-198710

main19040-74031i3SFE..SV2#198710-198808

sub19040-74040

main19100-62020i2VZFE..VZV21198802-198808

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-62020i2VZFE..VZV21198802-198808

main19101-74030i3SFE..SV21198608-198710

sub19101-74031

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i3SFE..SV2#198710-198808

sub19102-11370

main19102-62020i2VZFE..VZV21198802-198808

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14089i2VZFE..VZV21198802-198808

main96711-35030i3SFE..SV2#198608-198808

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i2VZFE..VZV21198802-198808

main19115-63010×2i3SFE..SV21198608-198710

19121COVER, DUST PROOF

main19121-62011i2VZFE..VZV21198802-198808

main19121-63040i3SFE..SV2#198710-198808

19127PACKING, DUST PROOF

main19127-61240i2VZFE..VZV21198802-198808

main19127-63010i3SFE..SV2#198710-198808

NO.1

main19127-63020i3SFE..SV2#198710-198808

NO.2

19144LEAD, DISTRIBUTOR BREAKER

main19144-74040i3SFE..SV21198608-198710

main19144-74060i3SFE..SV2#198710-198808

19235HOUSING, DISTRIBUTOR

main19235-74020i3SFE..SV2#198608-198808

19242CLAMP, CORD

main19242-74020i3SFE..SV2#198710-198808

NO.1

main19242-74030i3SFE..SV21198608-198710

NO.2

19500BCOIL ASSY, IGNITION

main90919-02135i3SFE..SV21198608-198710

9009900871

main90099-00871

9009900875

main90099-00875

9009900942

main90099-00942

9009904977

main90099-04977

9009905179

main90099-05179

9011908617

main90119-08617

17 parts on this diagram · 2 diagrams in section
