HORN

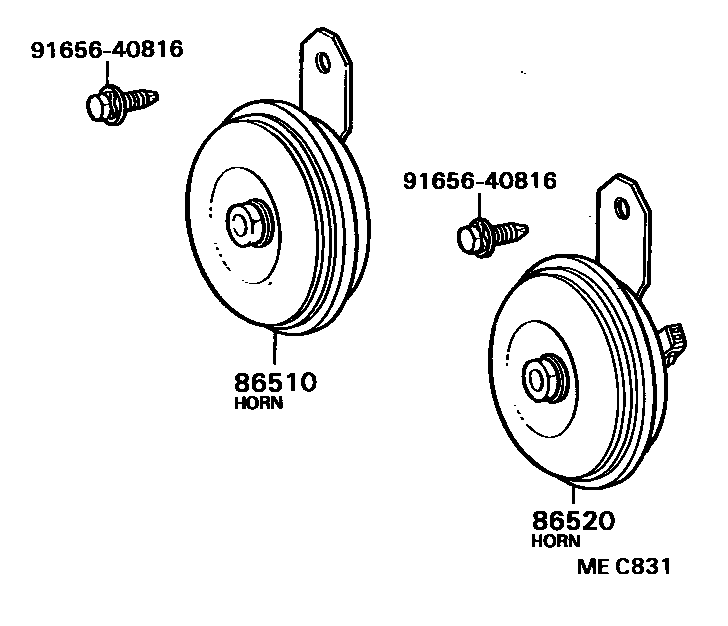

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-22070i¥3,620198301-198408

DENSO

sub86510-22120¥4,460

main86510-22080i¥3,620198301-198408

MARUKO

sub86510-14H91¥3,990

main86510-22120i¥4,460198408-198607

DENSO

sub86510-14H93¥3,440

main86510-22130i¥3,620198408-198607

MARUKO

sub86510-14H91¥3,990

86520HORN ASSY, LOW PITCHED

main86520-22070i¥3,620198301-198408

DENSO

sub86520-22120¥4,460

main86520-22080i198301-198408

MARUKO

main86520-22120i¥4,460198408-198607

sub86520-14H93¥3,440

9165640816

main91656-40816¥140

3 parts on this diagram · 1 diagram in section
