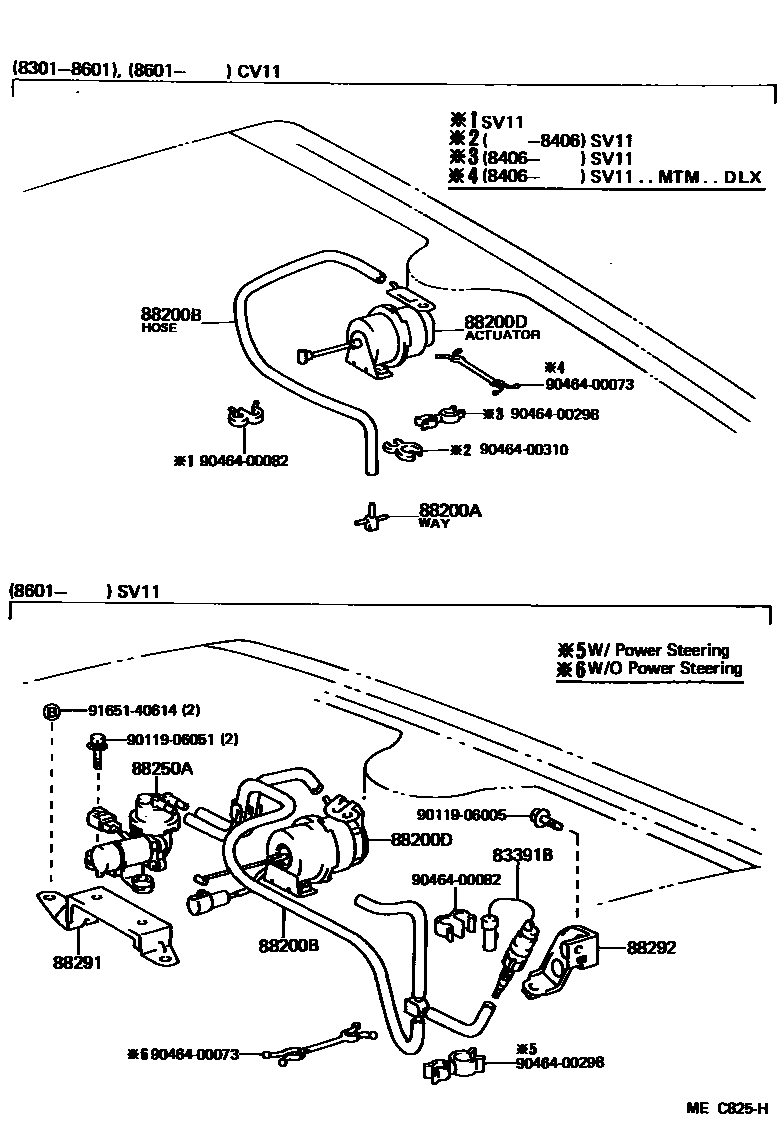

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83391BSWITCH, AUTO DRIVE VACUUM

main83391-22040iSV11198601-198607

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90413-04005iSV11198301-198304

88200BHOSE, CRUISE CONTROL VACUUM

main88283-32010iSV11198601-198607

*H,L=700

main95411-19960iCV1#198308-198607

*H,L=420,MARK=#*

sub90999-92003

main95411-19995iSV11198304-198601

*H,L=700,MARK=#*

sub90999-92004

main95411-19995iSV11198301-198304

*H,L=650,MARK=#*

sub90999-92004

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-32010iSV11198301-198408

sub88200-32030

main88200-32020iCV10198308-198408

sub88200-32040

main88200-32030iSV11198408-198601

sub88200-32031

main88200-32040iCV1#198410-198607

sub88200-32041

main88200-32050iSV11198601-198607

sub88200-32051

88250APUMP ASSY, CRUISE CONTROL

main88251-32050iSV11198601-198607

sub88251-32051

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-32010iSV11198601-198607

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-32010iSV11198601-198607

9011906005

main90119-06005

9011906051

main90119-06051

9046400073

main90464-00073

9046400082

main90464-00082

9046400298

main90464-00298

9046400310

main90464-00310

9165140614

main91651-40614

14 parts on this diagram · 2 diagrams in section
