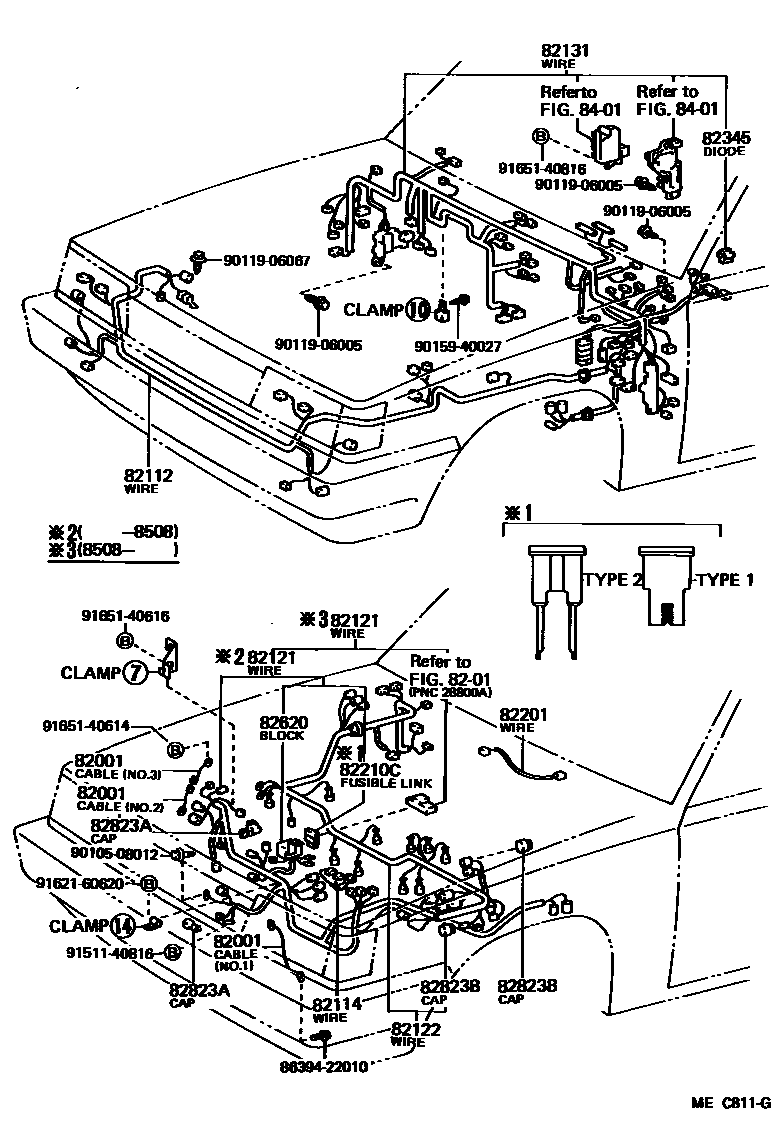

WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.1(CLUCH HOUSING)
NO.2(ENGINE HANGER)
NO.3(PIPE CLAMP)
8201
82114WIRE, ENGINE ROOM, NO.4
W/COOLER
W/COOLER
82131WIRE, COWL
sub82131-32201
sub82131-32211
W/*MDA
W/*CRC OR W/*SNR
W/*DS
W/*AS & *SNR OR *EL
sub82131-32841
W/*AS & *MDA & W/O *EL;W/*AS & *MDA & W/O *SNR
sub82131-32851
W/*AS & *MDA & W/O *EL;W/*AS & *MDA & W/O *SNR
W/*AS & *SNR OR *EL
W/*DS
W/*AS & *MDA & W/O *EL;W/*AS & *MDA & W/O *SNR
sub82131-3H021
W/*AS & *MDA & W/O *EL;W/*AS & *MDA & W/O *SNR
sub82131-3H031
W/*AS & *SNR OR *EL
W/*DS
82201WIRING SUB-ASSY, INSTRUMENT PANEL
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,30A,TYPE 1
60A,TERM.:MALE,YEL,60A
80A,TERM.:MALE,BLK,80A
30A,TERM.:MALE,PNK,30A,TYPE 2
82620BLOCK ASSY, FUSIBLE LINK
82823ACAP, TERMINAL, NO.2
STARTER
ALTERNATOR
8401
8639422010
main86394-22010
9010508012
main90105-08012
9011906005
main90119-06005
9011906067
main90119-06067
9015940027
main90159-40027
9151140816
main91511-40816
9162160620
main91621-60620
9165140614
main91651-40614
9165140616
main91651-40616
9165140816
main91651-40816
24 parts on this diagram · 8 diagrams in section
