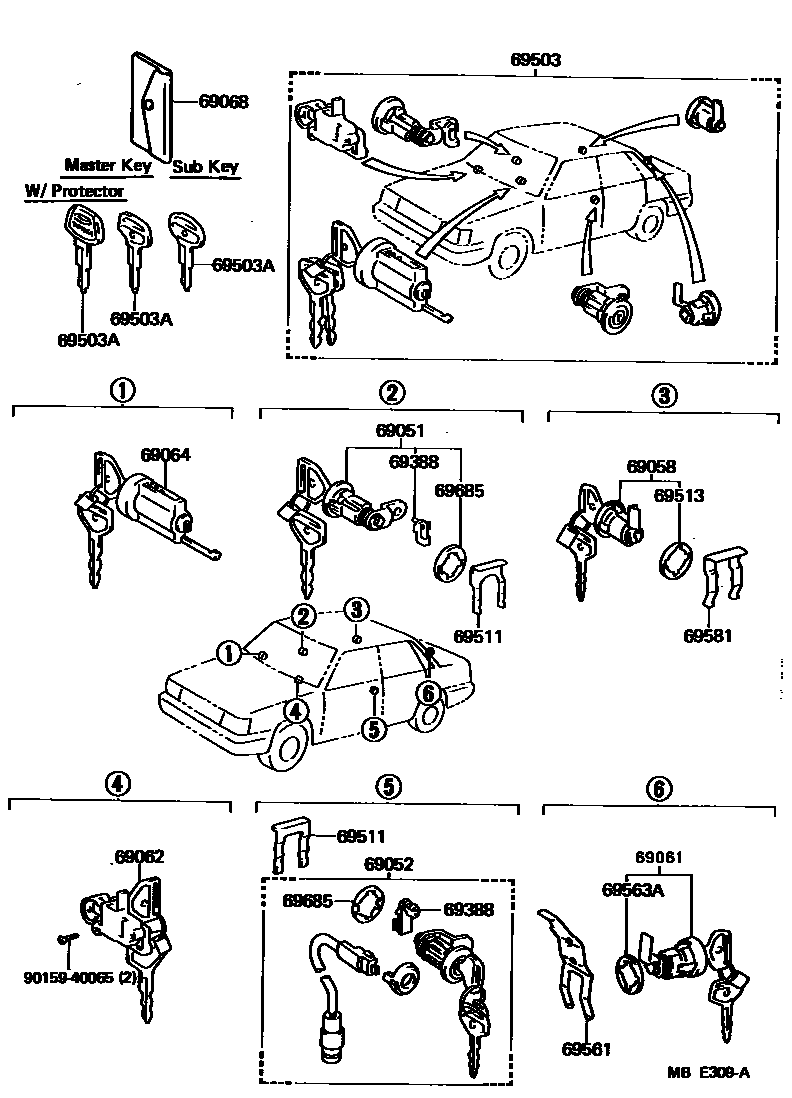

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-32040iSV11¥3,650198301-198308

sub69051-32041¥3,670

main69051-32041iCV1#,SV11¥3,670198308-198607

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-32030iSV11..LE198301-198308

sub69052-32031¥3,650

main69052-32031iSV11..LE¥3,650198308-198607

main69052-32040iSV11..DLX¥3,650198301-198308

sub69052-32041¥3,670

main69052-32041iCV1#,SV11..DLX¥3,670198308-198607

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-32030iSV11¥3,680198301-198308

sub69058-32031¥3,690

main69058-32031iCV10,SV11¥3,690198308-198408

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-32050iSV11..4D¥3,920198301-198308

sub69055-32051¥3,910

main69055-32051iCV1#,SV11..4D¥3,910198308-198607

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-32030-03iSV11198301-198308

GRAY,GRAY,TRIM1#

sub69056-32031¥5,400

main69056-32030-04iSV11198301-198308

BLUE,BLUE,TRIM8#

sub69056-32031¥5,400

main69056-32030-06iSV11198301-198308

BROWN,BROWN,TRIM4#

sub69056-32031¥5,400

main69056-32031-03iCV10,SV11198308-198408

GRAY,GRAY,TRIM1#

sub69056-32031¥5,400

main69056-32031-04iCV1#,SV11198308-198607

BLUE,BLUE,TRIM8#

sub69056-32031¥5,400

main69056-32031-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub69056-32031¥5,400

main69056-32031-06iCV10,SV11198308-198408

BROWN,BROWN,TRIM4#

sub69056-32031¥5,400

main69056-32031-13iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69056-32031¥5,400

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-32030iSV11¥7,000198301-198308

sub69057-32031¥7,000

main69057-32031iCV1#,SV11¥7,000198308-198607

sub69057-95J02¥5,700

69068COVER SUB-ASSY, KEY

main69555-20010iCV10,SV11¥780198301-198408

69388SNAP, ROD(FOR DOOR LOCK)

main69759-24080iSV11..5D¥200198301-198607

W/BACK DOOR

main69759-24080iSV11..5D¥200198301-198607

LH,W/FR DOOR

main69759-24090iCV1#,SV11¥180198301-198607

RH,W/FR DOOR

69503CYLINDER SET, LOCK

main69005-32050-03iSV11..LE..4D198301-198308

GRAY,GRAY,TRIM1#

sub69005-32051¥25,300

main69005-32050-04iSV11..LE..4D198301-198308

BLUE,BLUE,TRIM8#

sub69005-32051¥25,300

main69005-32050-06iSV11..LE..4D198301-198308

BROWN,BROWN,TRIM4#

sub69005-32051¥25,300

main69005-32051-03iSV11..LE..4D198308-198408

GRAY,GRAY,TRIM1#

sub69005-32051¥25,300

main69005-32051-04iSV11..LE..4D198308-198408

BLUE,BLUE,TRIM8#

sub69005-32051¥25,300

main69005-32051-06iSV11..LE..4D198308-198408

BROWN,BROWN,TRIM4#

sub69005-32051¥25,300

main69005-32070-03iSV11..LE..5D198301-198308

GRAY,GRAY,TRIM1#

sub69005-32071¥25,300

main69005-32070-04iSV11..LE..5D198301-198308

BLUE,BLUE,TRIM8#

sub69005-32071¥25,300

main69005-32070-06iSV11..LE..5D198301-198308

BROWN,BROWN,TRIM4#

sub69005-32071¥25,300

main69005-32071-03iSV11..LE..5D198308-198408

GRAY,GRAY,TRIM1#

sub69005-32071¥25,300

main69005-32071-04iSV11..LE..5D198308-198408

BLUE,BLUE,TRIM8#

sub69005-32071¥25,300

main69005-32071-06iSV11..LE..5D198308-198408

BROWN,BROWN,TRIM4#

sub69005-32071¥25,300

main69005-32080-03iSV11..DLX..4D198301-198308

GRAY,GRAY,TRIM1#

sub69005-32081¥25,300

main69005-32080-04iSV11..DLX..4D198301-198308

BLUE,BLUE,TRIM8#

sub69005-32081¥25,300

main69005-32080-06iSV11..DLX..4D198301-198308

BROWN,BROWN,TRIM4#

sub69005-32081¥25,300

main69005-32081-03iCV10,SV11..DLX..4D198308-198408

GRAY,GRAY,TRIM1#

sub69005-32081¥25,300

main69005-32081-04iCV10,SV11..DLX..4D198308-198408

BLUE,BLUE,TRIM8#

sub69005-32081¥25,300

main69005-32081-06iCV10,SV11..DLX..4D198308-198408

BROWN,BROWN,TRIM4#

sub69005-32081¥25,300

main69005-32090-03iSV11..DLX..5D198301-198308

GRAY,GRAY,TRIM1#

sub69005-32091¥25,300

main69005-32090-04iSV11..DLX..5D198301-198308

BLUE,BLUE,TRIM8#

sub69005-32091¥25,300

main69005-32090-06iSV11..DLX..5D198301-198308

BROWN,BROWN,TRIM4#

sub69005-32091¥25,300

main69005-32091-03iSV11..DLX..5D198308-198408

GRAY,GRAY,TRIM1#

sub69005-32091¥25,300

main69005-32091-04iSV11..DLX..5D198308-198408

BLUE,BLUE,TRIM8#

sub69005-32091¥25,300

main69005-32091-06iSV11..DLX..5D198308-198408

BROWN,BROWN,TRIM4#

sub69005-32091¥25,300

main69005-32120-03iSV11..LE..4D198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69005-32120¥24,300

main69005-32120-04iSV11..LE..4D198408-198607

BLUE,BLUE,TRIM8#

sub69005-32120¥24,300

main69005-32120-05iSV11..LE..4D198408-198607

BEIGE,BEIGE,TRIM4#

sub69005-32120¥24,300

main69005-32160-03iSV11..LE..5D198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69005-32160¥24,300

main69005-32160-04iSV11..LE..5D198408-198607

BLUE,BLUE,TRIM8#

sub69005-32160¥24,300

main69005-32160-05iSV11..LE..5D198408-198607

BEIGE,BEIGE,TRIM4#

sub69005-32160¥24,300

main69005-32170-03iCV1#,SV11..DLX..4D198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69005-32170¥24,300

main69005-32170-04iCV1#,SV11..DLX..4D198408-198607

BLUE,BLUE,TRIM8#

sub69005-32170¥24,300

main69005-32170-05iCV1#,SV11..DLX..4D198408-198607

BEIGE,BEIGE,TRIM4#

sub69005-32170¥24,300

main69005-32180-03iSV11..DLX..5D198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub69005-32180¥24,300

main69005-32180-04iSV11..DLX..5D198408-198607

BLUE,BLUE,TRIM8#

sub69005-32180¥24,300

main69005-32180-05iSV11..DLX..5D198408-198607

BEIGE,BEIGE,TRIM4#

sub69005-32180¥24,300

69503AKEY, BLANK

main90999-00069iCV1#,SV11¥1,550198301-198607

MASTER KEY,MASTER KEY

sub90999-00099¥1,550

main90999-00070iCV1#,SV11¥1,550198301-198607

SUB KEY

sub90999-00100¥1,550

main90999-00103iCV1#,SV11¥2,060198308-198607

MASTER KEY,W/PROTECTOR

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iCV1#,SV11¥160198301-198607

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iCV10,SV11¥120198301-198408

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69511-32010iSV11..5D¥160198301-198607

main69561-32010iCV1#,SV11..4D¥750198301-198607

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-32010iCV1#,SV11¥310198301-198607

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iCV10,SV11¥160198301-198408

69685PAD, LOCK CYLINDER

main69513-32010iCV1#,SV11¥120198301-198607

9015940065

main90159-40065¥110

17 parts on this diagram · 2 diagrams in section
