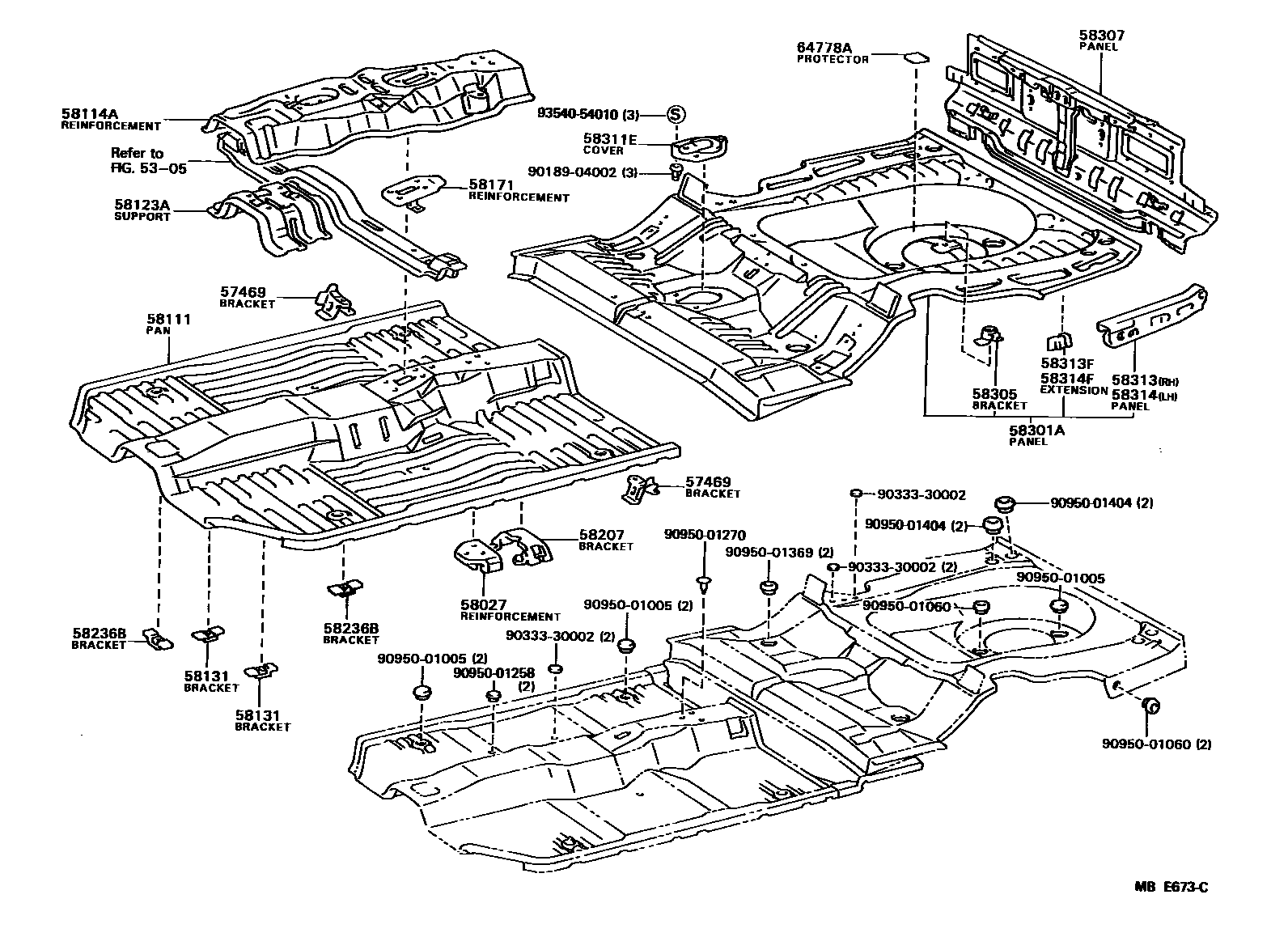

FLOOR PAN & LOWER BACK PANEL
5305
57469BRACKET, FRONT SEAT, OUTSIDE
RH
LH
58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58171REINFORCEMENT, PARKING BRAKE BASE
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311ECOVER, REAR FLOOR SERVICE HOLE
58313PANEL, REAR FLOOR SIDE, RH
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314PANEL, REAR FLOOR SIDE, LH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
64778APROTECTOR, SPARE WHEEL
9018904002
main90189-04002
9033330002
main90333-30002
9095001005
main90950-01005
9095001060
main90950-01060
9095001258
main90950-01258
9095001270
main90950-01270
9095001369
main90950-01369
9095001404
main90950-01404
9354054010
main93540-54010
28 parts on this diagram · 2 diagrams in section
