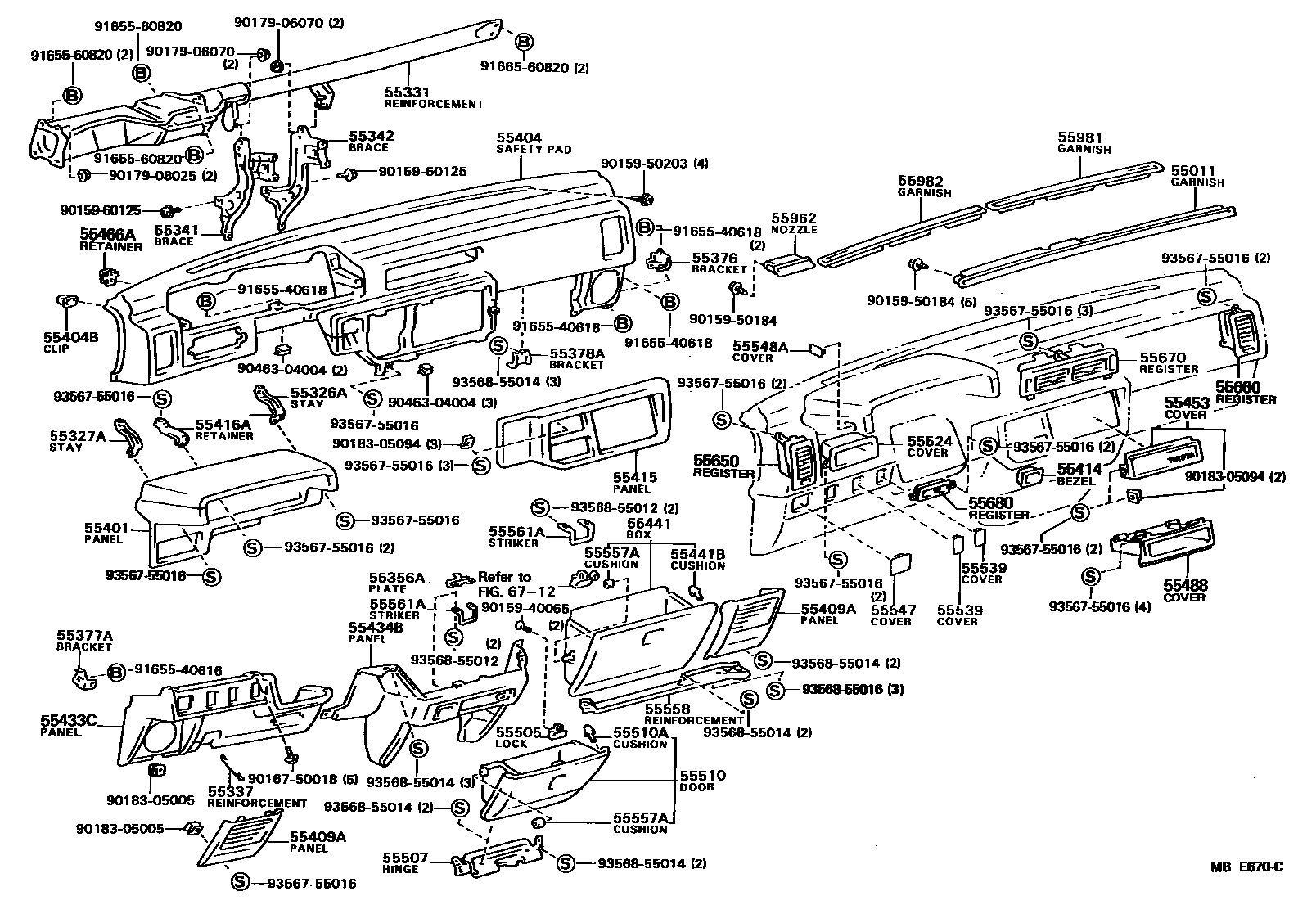

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55011GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD

main55011-32020-01iCV10,SV11198301-198406

BLACK,BLACK

sub55011-32040

main55011-32020-06iSV11198301-198305

DEEP BROWN,BROWN,TRIM4#

sub55011-32040

main55011-32040-01iCV1#,SV11198406-198607

BLACK,BLACK

sub55011-32040

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-32010iCV10,SV11198301-198406

sub55326-32020

main55326-32020iCV1#,SV11198406-198607

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-32010iCV10,SV11198301-198406

sub55327-32020

main55327-32020iCV1#,SV11198406-198607

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-32020iCV10,SV11198301-198403

sub55330-32021

sub90507-14002

main55330-32021iCV10,SV11198403-198406

sub55330-32040

main55330-32040iCV1#,SV11198406-198607

55337REINFORCEMENT, INSTRUMENT PANEL SUB

main55337-32010iCV1#,SV11198301-198607

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-32020iCV10,SV11198301-198408

main55306-32050iCV1#,SV11198408-198607

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-32020iCV1#,SV11198301-198607

55356APLATE, INSTRUMENT PANEL, LOWER

main55356-32010iCV10,SV11198301-198408

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-32020iCV1#,SV11198301-198607

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-32020iCV1#,SV11198301-198607

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-32030iCV1#,SV11198301-198607

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-32020-03iSV11198301-198305

DARK GRAY,GRAY,TRIM1#

main55404-32020-04iSV11198301-198305

BLUE,BLUE,TRIM8#

main55404-32020-06iSV11198301-198305

DARK BROWN,BROWN,TRIM4#

main55404-32020-13iCV10,SV11198305-198408

DARK GRAY,GRAY,TRIM1#

main55404-32020-14iCV10,SV11198305-198408

BLUE,BLUE,TRIM8#

main55404-32020-16iCV10,SV11198305-198408

DARK BROWN,BROWN,TRIM4#

main55404-32040-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main55404-32040-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

main55404-32040-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-32020-03iCV10,SV11198301-198408

DARK GRAY,GRAY,TRIM1#

sub55401-32020

main55401-32020-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

sub55401-32020

main55401-32020-16iCV10,SV11198301-198408

DARK BROWN,BROWN,TRIM4#

sub55401-32020

main55401-32040-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main55401-32040-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

main55401-32040-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

55404BCLIP, SAFETY PAD SET

main90467-14002iCV1#,SV11198301-198607

sub90467-14007

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-32020-03iCV10,SV11198301-198408

LH,GRAY,GRAY,TRIM1#

sub55472-32020

main55472-32020-04iCV1#,SV11198301-198607

LH,BLUE,BLUE,TRIM8#

sub55472-32020

main55472-32020-05iCV1#,SV11198408-198607

LH,BEIGE,BEIGE,TRIM4#

sub55472-32020

main55472-32020-06iCV10,SV11198301-198408

LH,BROWN,BROWN,TRIM4#

sub55472-32020

main55472-32020-13iCV1#,SV11198408-198607

LH,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55472-32020

main55473-32020-03iCV10,SV11198301-198408

RH,GRAY,GRAY,TRIM1#

sub55473-32020

main55473-32020-04iCV1#,SV11198301-198607

RH,BLUE,BLUE,TRIM8#

sub55473-32020

main55473-32020-05iCV1#,SV11198408-198607

RH,BEIGE,BEIGE,TRIM4#

sub55473-32020

main55473-32020-06iCV10,SV11198301-198408

RH,BROWN,BROWN,TRIM4#

sub55473-32020

main55473-32020-13iCV1#,SV11198408-198607

RH,SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55473-32020

55414BEZEL, CIGAR LIGHTER HOLE

main55477-32010iCV10,SV11198301-198408

main55477-32020-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55477-32020

main55477-32020-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub55477-32020

main55477-32020-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub55477-32020

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-32020-01iSV11198301-198305

BLACK,BLACK,TRIM1#,8#

sub55405-32060

main55405-32020-03iCV10,SV11198305-198408

DARK GRAY,GRAY,TRIM1#

sub55405-32060

main55405-32020-04iCV10,SV11198305-198408

BLUE,BLUE,TRIM8#

sub55405-32060

main55405-32020-06iSV11198301-198305

DEEP BROWN,BROWN,TRIM4#

sub55405-32060

main55405-32020-16iCV10,SV11198305-198408

DARK BROWN,BROWN,TRIM4#

sub55405-32060

main55405-32060-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main55405-32060-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

main55405-32060-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

55416ARETAINER, METER HOOD, NO.1

main55416-32020iCV1#,SV11198301-198607

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-32010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

main55433-32010-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

main55433-32010-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

main55433-32020-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main55433-32020-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

main55433-32020-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-32020-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

main55434-32020-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

main55434-32020-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

main55434-32040-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55434-32040

main55434-32040-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub55434-32040

main55434-32040-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub55434-32040

55441BOX, INSTRUMENT PANEL

main55440-32010-03iCV10,SV11..DLX198301-198408

GRAY,GRAY,TRIM1#

main55440-32010-04iCV1#,SV11..DLX198301-198607

BLUE,BLUE,TRIM8#

main55440-32010-05iCV1#,SV11..DLX198408-198607

BEIGE,BEIGE,TRIM4#

main55440-32010-06iCV10,SV11..DLX198301-198408

BROWN,BROWN,TRIM4#

main55440-32010-13iCV1#,SV11..DLX198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main55440-32020-03iSV11..LE198301-198408

GRAY,GRAY,TRIM1#

sub55440-32010

main55440-32020-04iSV11..LE198301-198607

BLUE,BLUE,TRIM8#

sub55440-32010

main55440-32020-05iSV11..LE198408-198607

BEIGE,BEIGE,TRIM4#

sub55440-32010

main55440-32020-06iSV11..LE198301-198408

BROWN,BROWN,TRIM4#

sub55440-32010

main55440-32020-13iSV11..LE198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55440-32010

55441BCUSHION, INSTRUMENT PANEL BOX

main90541-03015iCV1#,SV11198301-198607

55453COVER, RADIO TUNER OPENING

main55522-32010iCV10,SV11198301-198607

sub55522-20070

55466ARETAINER, INSTRUMENT PANEL SAFETY PAD

main55466-32020iCV1#,SV11198301-198607

55488COVER, STEREO OPENING

main55521-14050iCV1#,SV11198301-198607

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-32010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub55560-32010

main55560-32010-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

sub55560-32010

main55560-32010-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub55560-32010

main55560-32020-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55560-32020

main55560-32020-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub55560-32020

main55560-32020-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub55560-32020

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-32010iCV10,SV11198301-198408

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-32010-03iCV10,SV11..DLX198301-198408

GRAY,GRAY,TRIM1#

main55550-32010-04iCV10,SV11..DLX198301-198408

BLUE,BLUE,TRIM8#

main55550-32010-06iCV10,SV11..DLX198301-198408

BROWN,BROWN,TRIM4#

main55550-32020-03iSV11..LE198301-198408

GRAY,GRAY,TRIM1#

main55550-32020-04iSV11..LE198301-198408

BLUE,BLUE,TRIM8#

main55550-32020-06iSV11..LE198301-198408

BROWN,BROWN,TRIM4#

main55550-32030-03iCV1#,SV11..DLX198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main55550-32030-04iCV1#,SV11..DLX198408-198607

BLUE,BLUE,TRIM8#

main55550-32030-05iCV1#,SV11..DLX198408-198607

BEIGE,BEIGE,TRIM4#

main55550-32040-03iSV11..LE198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main55550-32040-04iSV11..LE198408-198607

BLUE,BLUE,TRIM8#

main55550-32040-05iSV11..LE198408-198607

BEIGE,BEIGE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iCV10,SV11198301-198607

55524COVER, SWITCH BACE HOLE

main55524-32020iCV10,SV11198301-198408

W/AUTO DRIVE

main55524-32030iCV10,SV11198301-198408

W/O AUTO DRIVE

55539COVER, SPARE SWITCH HOLE

main55539-32010-01iCV10,SV11198301-198607

BLACK

sub55539-32010

sub55539-32030

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-32010iCV10,SV11..DLX198301-198408

main74267-24010-01iCV1#,SV11..DLX198408-198607

BLACK

sub74267-24010

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-32010-01iSV11198301-198305

BLACK,BLACK,TRIM1#,8#

sub55548-32010

main55548-32010-03iCV10,SV11198305-198408

DARK GRAY,GRAY,TRIM1#

sub55548-32010

main55548-32010-04iCV10,SV11198305-198408

BLUE,BLUE,TRIM8#

sub55548-32010

main55548-32010-06iSV11198301-198305

DEEP BROWN,BROWN,TRIM4#

sub55548-32010

main55548-32010-16iCV10,SV11198305-198408

DARK BROWN,BROWN,TRIM4#

sub55548-32010

main55548-32020-03iCV1#198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

main55548-32020-04iCV1#198408-198607

BLUE,BLUE,TRIM8#

main55548-32020-05iCV1#198408-198607

BEIGE,BEIGE,TRIM4#

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010iCV10,SV11198301-198607

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-32020iCV1#,SV11198301-198607

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32010iCV1#,SV11198301-198607

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-32030-03iCV10,SV11198408-198508

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55650-32040

main55650-32030-04iCV10,SV11198408-198508

BLUE,BLUE,TRIM8#

sub55650-32040

main55650-32030-05iCV10,SV11198408-198508

BEIGE,BEIGE,TRIM4#

sub55650-32040

main55650-32031-03iCV11,SV11198508-198510

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55650-32032

main55650-32031-04iCV11,SV11198508-198510

BLUE,BLUE,TRIM8#

sub55650-32032

main55650-32031-05iCV11,SV11198508-198510

BEIGE,BEIGE,TRIM4#

sub55650-32032

main55650-32032-03iCV11,SV11198510-198607

SHADOW GRAY,GRAY,TRIM1#

sub55650-32040

main55650-32032-04iCV11,SV11198510-198607

BLUE,BLUE,TRIM8#

sub55650-32040

main55650-32032-05iCV11,SV11198510-198607

BEIGE,BEIGE,TRIM4#

sub55650-32040

main55660-32010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub55660-32020

main55660-32010-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

sub55660-32020

main55660-32010-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub55660-32020

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-32010-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub55650-32020

main55650-32010-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

sub55650-32020

main55650-32010-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub55650-32020

main55660-32030-03iCV10,SV11198408-198508

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55660-32040

main55660-32030-04iCV10,SV11198408-198508

BLUE,BLUE,TRIM8#

sub55660-32040

main55660-32030-05iCV10,SV11198408-198508

BEIGE,BEIGE,TRIM4#

sub55660-32040

main55660-32031-03iCV11,SV11198508-198510

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55660-32032

main55660-32031-04iCV11,SV11198508-198510

BLUE,BLUE,TRIM8#

sub55660-32032

main55660-32031-05iCV11,SV11198508-198510

BEIGE,BEIGE,TRIM4#

sub55660-32032

main55660-32032-03iCV11,SV11198510-198607

SHADOW GRAY,GRAY,TRIM1#

sub55660-32040

main55660-32032-04iCV11,SV11198510-198607

BLUE,BLUE,TRIM8#

sub55660-32040

main55660-32032-05iCV11,SV11198510-198607

BEIGE,BEIGE,TRIM4#

sub55660-32040

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-32020-03iCV10,SV11198301-198408

GRAY,GRAY,TRIM1#

sub55670-32020

main55670-32020-04iCV1#,SV11198301-198607

BLUE,BLUE,TRIM8#

sub55670-32020

main55670-32020-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub55670-32020

main55670-32020-06iCV10,SV11198301-198408

BROWN,BROWN,TRIM4#

sub55670-32020

main55670-32020-13iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55670-32020

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iCV1#,SV11198301-198607

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-32020-01iCV10,SV11198301-198406

BLACK,BLACK

sub55961-32040

main55961-32020-06iSV11198301-198305

DEEP BROWN,BROWN,TRIM4#

sub55961-32040

main55961-32040-01iCV1#,SV11198406-198607

BLACK,BLACK

sub55961-32040

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-32010-03iCV10,SV11198301-198408

DARK GRAY,GRAY,TRIM1#

sub55981-32020

main55981-32010-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

sub55981-32020

main55981-32010-06iCV10,SV11198301-198408

DARK BROWN,BROWN,TRIM4#

sub55981-32020

main55981-32020-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55981-32020

main55981-32020-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub55981-32020

main55981-32020-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub55981-32020

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-32010-03iCV10,SV11198301-198408

DARK GRAY,GRAY,TRIM1#

sub55982-32020

main55982-32010-04iCV10,SV11198301-198408

BLUE,BLUE,TRIM8#

sub55982-32020

main55982-32010-06iCV10,SV11198301-198408

DARK BROWN,BROWN,TRIM4#

sub55982-32020

main55982-32020-03iCV1#,SV11198408-198607

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub55982-32020

main55982-32020-04iCV1#,SV11198408-198607

BLUE,BLUE,TRIM8#

sub55982-32020

main55982-32020-05iCV1#,SV11198408-198607

BEIGE,BEIGE,TRIM4#

sub55982-32020

6712

9015940065

main90159-40065

9015950184

main90159-50184

9015950203

main90159-50203

9015960125

main90159-60125

9016750018

main90167-50018

9017906070

main90179-06070

9017908025

main90179-08025

9018305005

main90183-05005

9018305094

main90183-05094

9046304004

main90463-04004

9165540616

main91655-40616

9165540618

main91655-40618

9165560820

main91655-60820

9166560820

main91665-60820

9356755016

main93567-55016

9356855012

main93568-55012

9356855014

main93568-55014

9356855016

main93568-55016

62 parts on this diagram · 2 diagrams in section
