RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-39045iCV10,SV11198301-198408

sub53101-32030

main53101-39085iCV1#,SV11198408-198607

sub53101-32070

53131ADOOR, HEADLAMP, RH

main53031-39045iCV10,SV11198301-198408

main53131-39225iCV1#,SV11198408-198607

sub53131-32060

53132ADOOR, HEADLAMP, LH

main53032-39045iCV10,SV11198301-198408

main53132-39225iCV1#,SV11198408-198607

sub53132-32060

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-32010iCV1#,SV11198408-198607

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-32010iCV1#,SV11198408-198607

53149APROTECTOR, HEADLAMP DOOR, NO.3

main53149-32010iCV1#,SV11198408-198607

53169APROTECTOR, HEADLAMP DOOR, NO.2 RH

main53169-32010iCV1#,SV11198408-198607

53179APROTECTOR, HEADLAMP DOOR, NO.2 LH

main53169-32010iCV1#,SV11198408-198607

9016740021

main90167-40021

9018905012

main90189-05012

9046712008

main90467-12008

9046712020

main90467-12020

9046717004

main90467-17004

9354054012

main93540-54012

9356054020

main93560-54020

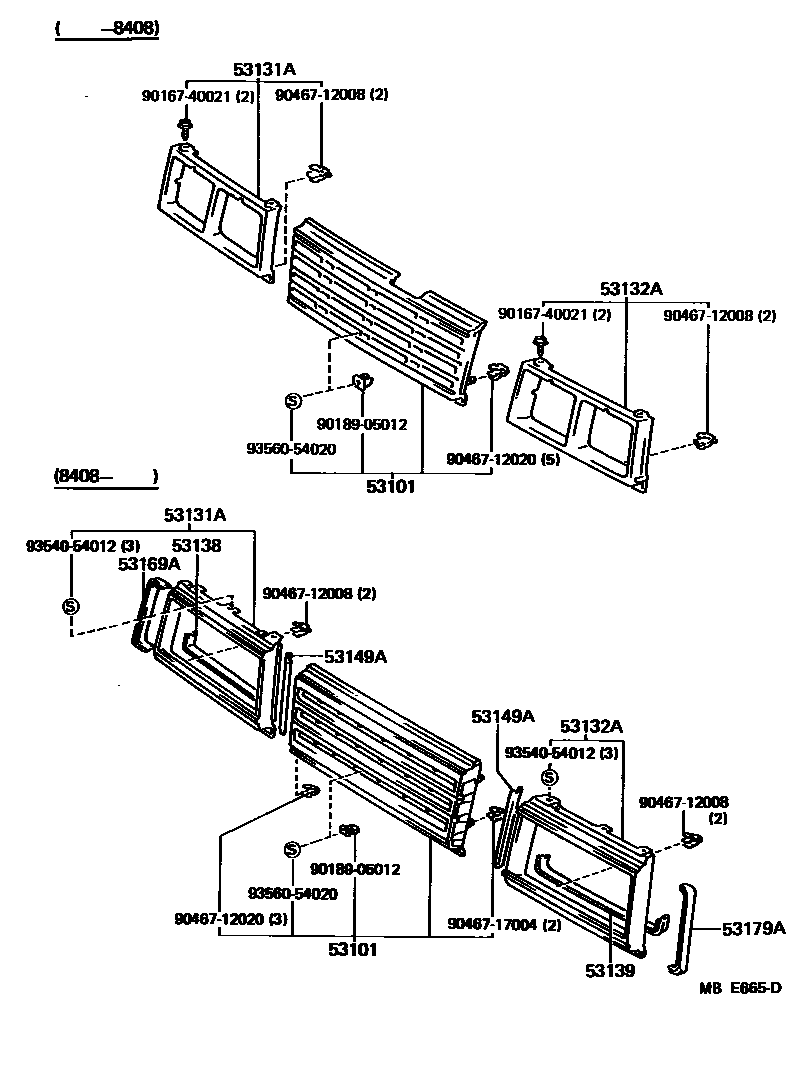

15 parts on this diagram · 1 diagram in section
