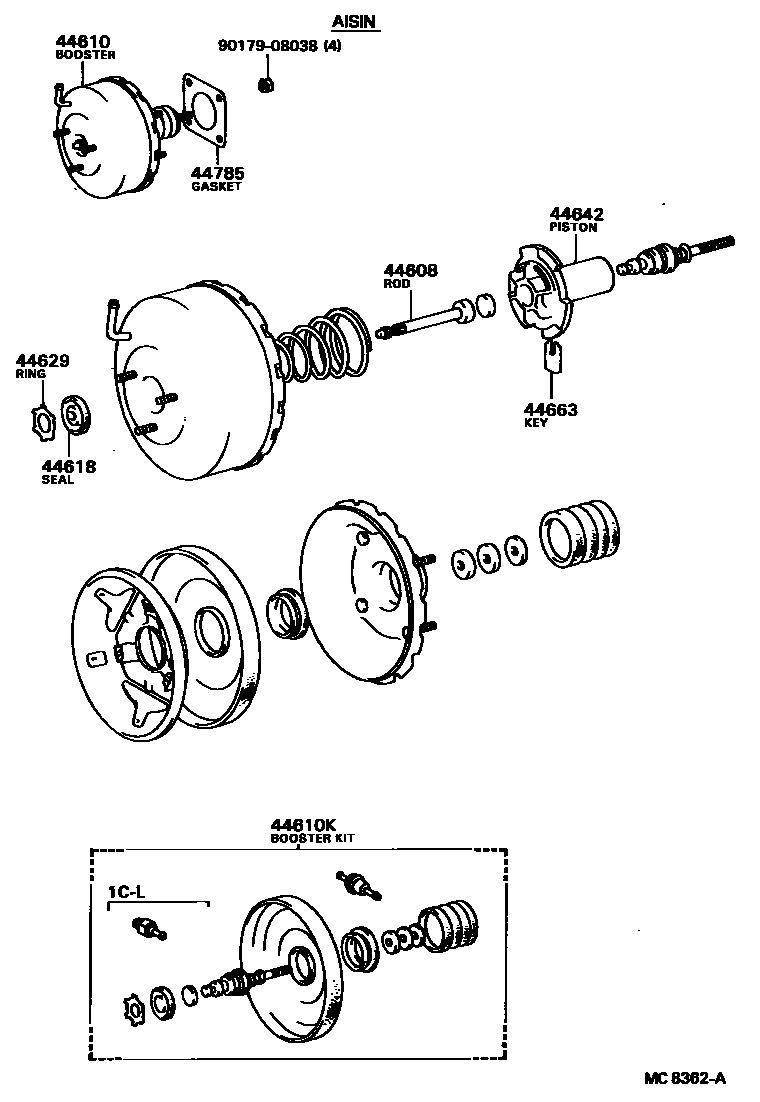

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1 0005 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCV10,SV11¥2,660198406-198607

AISIN

main44606-30460iSV11¥1,630198508-198607

AISIN

main44606-32010iCV10,SV11198301-198406

AISIN

main44608-32020iCV10,SV11¥2,670198301-198406

JKC

44610BOOSTER ASSY, BRAKE

main44610-32031iCV10,SV11¥46,000198301-198406

sub44610-32120¥45,400

main44610-32120iCV10,SV11¥45,400198406-198607

main44610-32150iSV11¥60,400198508-198607

44610KBOOSTER KIT, BRAKE

main04443-32050iSV11¥11,600198301-198406

AISIN

sub04443-32051¥11,700

main04443-32051iSV11¥11,700198406-198508

AISIN

main04443-32060iSV11¥15,600198301-198406

JKC

main04443-32100iCV10¥11,600198308-198406

AISIN

sub04443-32101¥11,700

main04443-32101iCV1#¥11,700198405-198607

AISIN

main04443-32110iCV10¥11,700198308-198406

JKC

main04443-32140iSV11¥11,700198508-198607

AISIN

44618SEAL, BOOSTER BODY

main44621-14030iSV11¥400198508-198607

AISIN

main44621-28120iCV10,SV11¥590198301-198508

AISIN

main44621-28120iCV11¥590198508-198607

44629RING, CIRCULAR INTERNAL

main44628-28120iCV11¥390198301-198607

AISIN

main44628-60010iSV11¥440198508-198607

AISIN

44642PISTON, BRAKE BOOSTER

main44642-30340iSV11¥4,090198508-198607

AISIN

main44642-32030iCV10,SV11¥5,900198301-198607

AISIN

44663KEY, VALVE STOPPER

main44635-28120iCV10,SV11¥370198301-198607

AISIN

main44635-30340iSV11¥270198508-198607

AISIN

44785GASKET, BRAKE BOOSTER

main44785-32010iCV1#,SV11¥220198301-198607

9017908038

main90179-08038¥130

9 parts on this diagram · 4 diagrams in section
