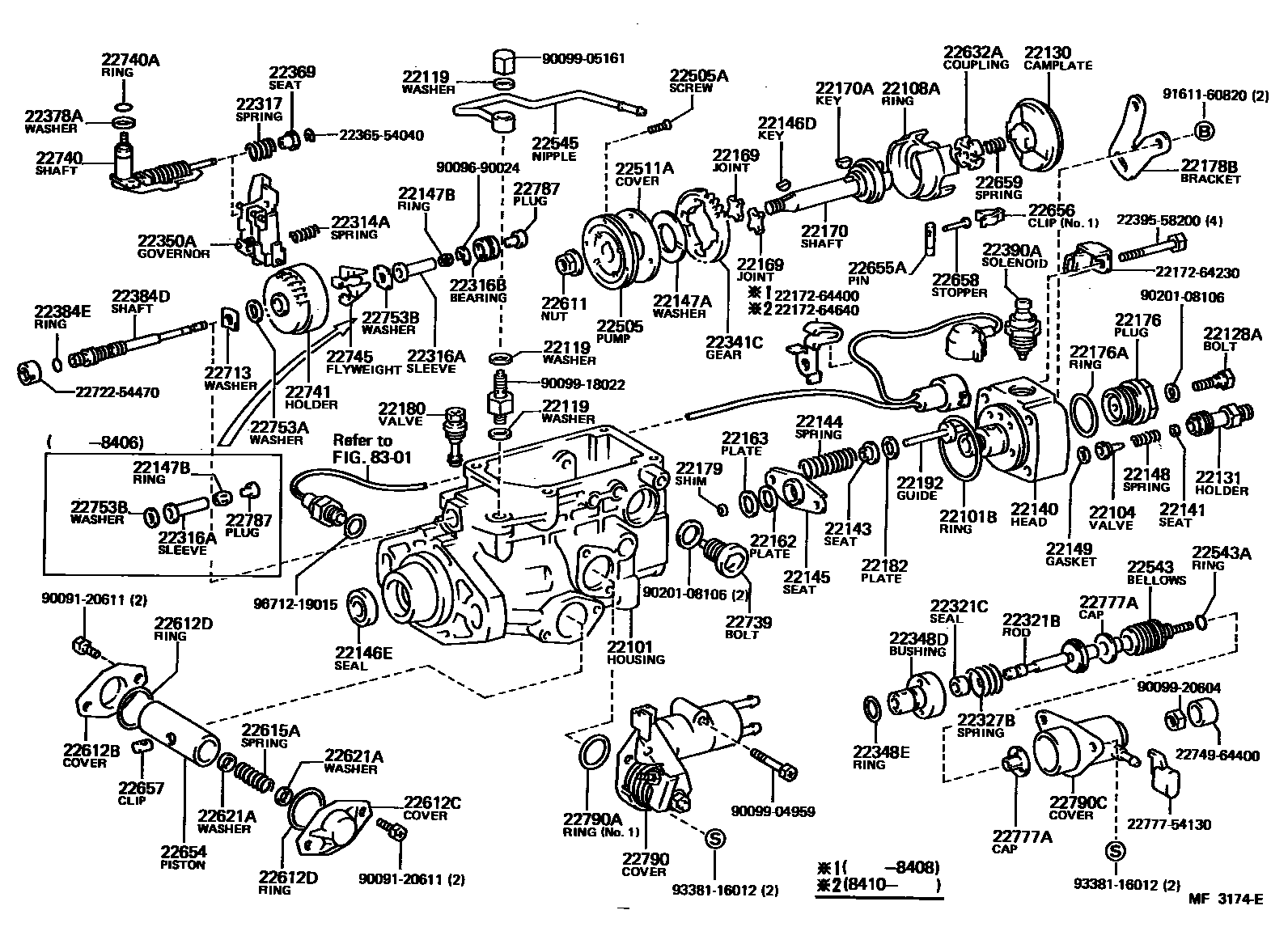

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
sub90201-12109
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
sub22193-54772
22178BBRACKET(FOR INJECTION PUMP ASSY)
22179SHIM, PLUNGER ADJUSTING
T=1.9,T=1.9
T=2.0,T=2.0
T=2.1,T=2.1
T=2.2,T=2.2
T=2.3,T=2.3
T=2.4,T=2.4
T=2.5,T=2.5
T=2.6,T=2.6
T=2.7,T=2.7
T=2.8,T=2.8
T=2.9,T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5,T=0.5
T=0.8,T=0.8
T=1.0,T=1.0
T=1.2,T=1.2
T=1.5,T=1.5
T=1.8,T=1.8
T=2.0,T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.80
MARK 23
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.2,L=6.0
22321BROD, PUSH(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22321CSEAL, OIL(FOR PUSH ROD)
sub22544-54291
22327BSPRING(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22341CGEAR, GOVERNOR DRIVE
22348DBUSHING, GUIDE(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22348ERING, O(FOR GUIDE BUSHING)
22350AGOVERNOR ASSY, TORQUE CONTROL
22369SEAT, GOVERNOR SPRING
sub22369-6A250
22378AWASHER, GOVERNOR THRUST
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
sub22019-6A510
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22543BELLOWS(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22543ARING, O(FOR BELLOWS SUB-ASSY)
22545NIPPLE, SWIVEL(FOR INJECTION PUMP INLET)
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
sub90099-14105
22615ASPRING, TIMER OUTER
CW=7.1
K=3.30,L=37.1
22621AWASHER, TIMER ADJUSTING
T=0.5,T=0.5
T=1.0,T=1.0
T=0.2,T=0.2
T=0.2,T=0.2
T=0.5,T=0.5
T=1.0,T=1.0
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22656CLIP, TIMER
NO.2
22657CLIP, TIMER
22658STOPPER, TIMER
sub22658-17840
22659SPRING, COUPLING
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05,T=1.05
T=1.25,T=1.25
T=1.45,T=1.45
T=1.65,T=1.65
T=1.85,T=1.85
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
COLD SPEC
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
sub22193-54770
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22753AWASHER, FLYWEIGHT, NO.1
22777ACAP, RUBBER(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22787PLUG, GOVERNOR SLEEVE
L=5.9,L=5.9
L=6.1,L=6.1
L=6.3,L=6.3
L=4.3,L=4.3
L=4.5,L=4.5
L=4.7,L=4.7
L=4.9,L=4.9
L=5.1,L=5.1
L=5.3,L=5.3
L=5.5,L=5.5
L=5.7,L=5.7
L=3.3,L=3.3
L=3.4,L=3.4
L=3.5,L=3.5
L=3.6,L=3.6
L=3.7,L=3.7
L=3.8,L=3.8
L=3.9,L=3.9
L=4.0,L=4.0
L=4.1,L=4.1
L=3.0,L=3.0
L=3.1,L=3.1
L=3.2,L=3.2
22790ARING, O(FOR TIMER COVER)
NO.2
8301
2217264230CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64230
2217264400CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64400
2217264640CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64640
2236554040RING, E(FOR INJECTION PUMP LEVER)
main22365-54040
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
2274964400COLLAR, SMOKE SET ADJUSTING
main22749-64400
2277754130CAP, RUBBER(FOR BELLOWS)
main22777-54130
9009120611
main90091-20611
9009690024
main90096-90024
9009904959
main90099-04959
9009905161
main90099-05161
9009918022
main90099-18022
9009920604
main90099-20604
9020108106
main90201-08106
9161160820
main91611-60820
9338116012
main93381-16012
9671219015
main96712-19015
98 parts on this diagram · 3 diagrams in section
