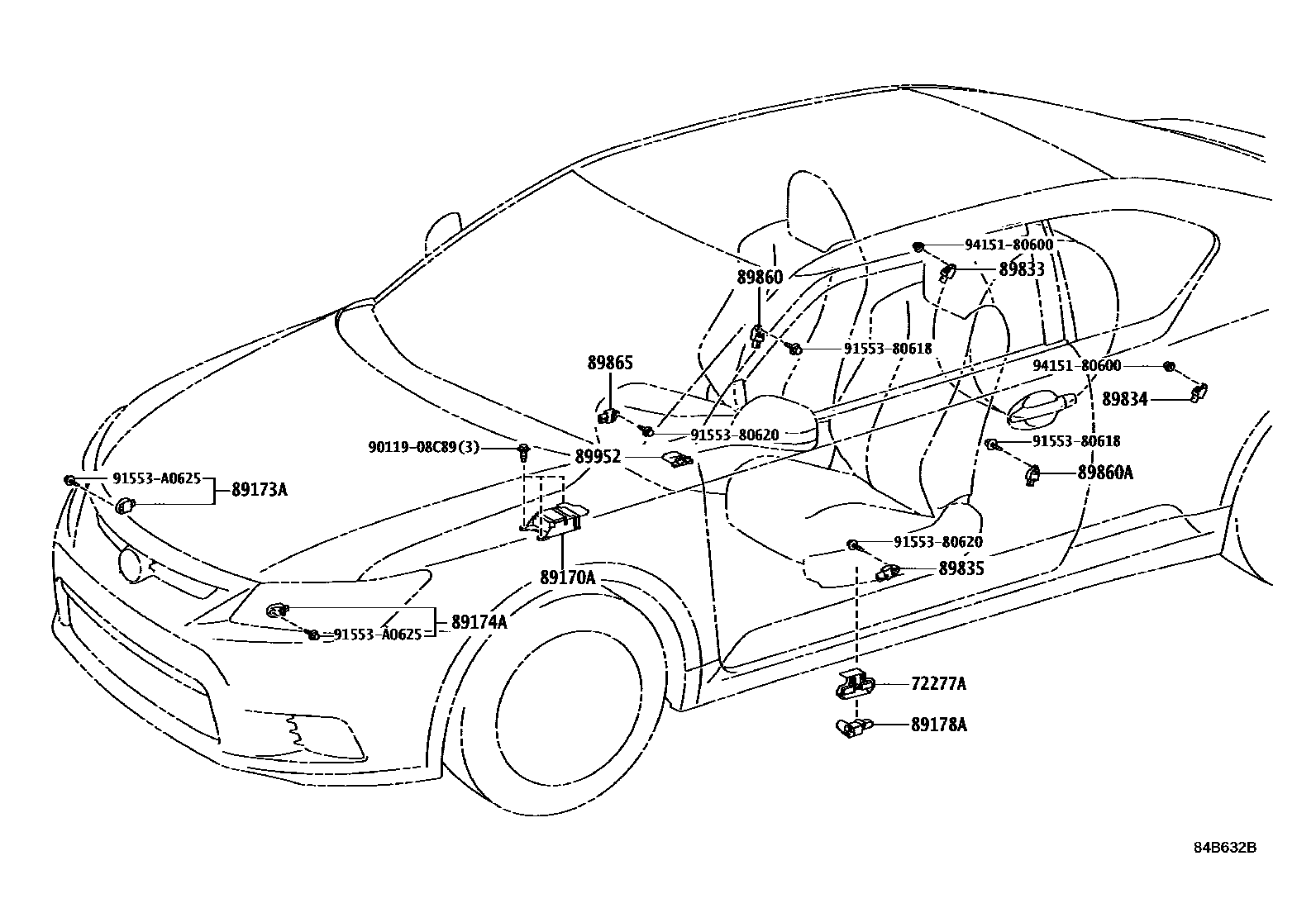

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
89833SENSOR, AIRBAG, REAR RH
89834SENSOR, AIRBAG, REAR LH
89835SENSOR, DOOR SIDE AIRBAG, LH
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
89952COMPUTER, OCCUPANT DETECTION
9011908C89
main90119-08C89
9155380618
main91553-80618
9155380620
main91553-80620
91553A0625
main91553-A0625
9415180600
main94151-80600
17 parts on this diagram · 1 diagram in section
