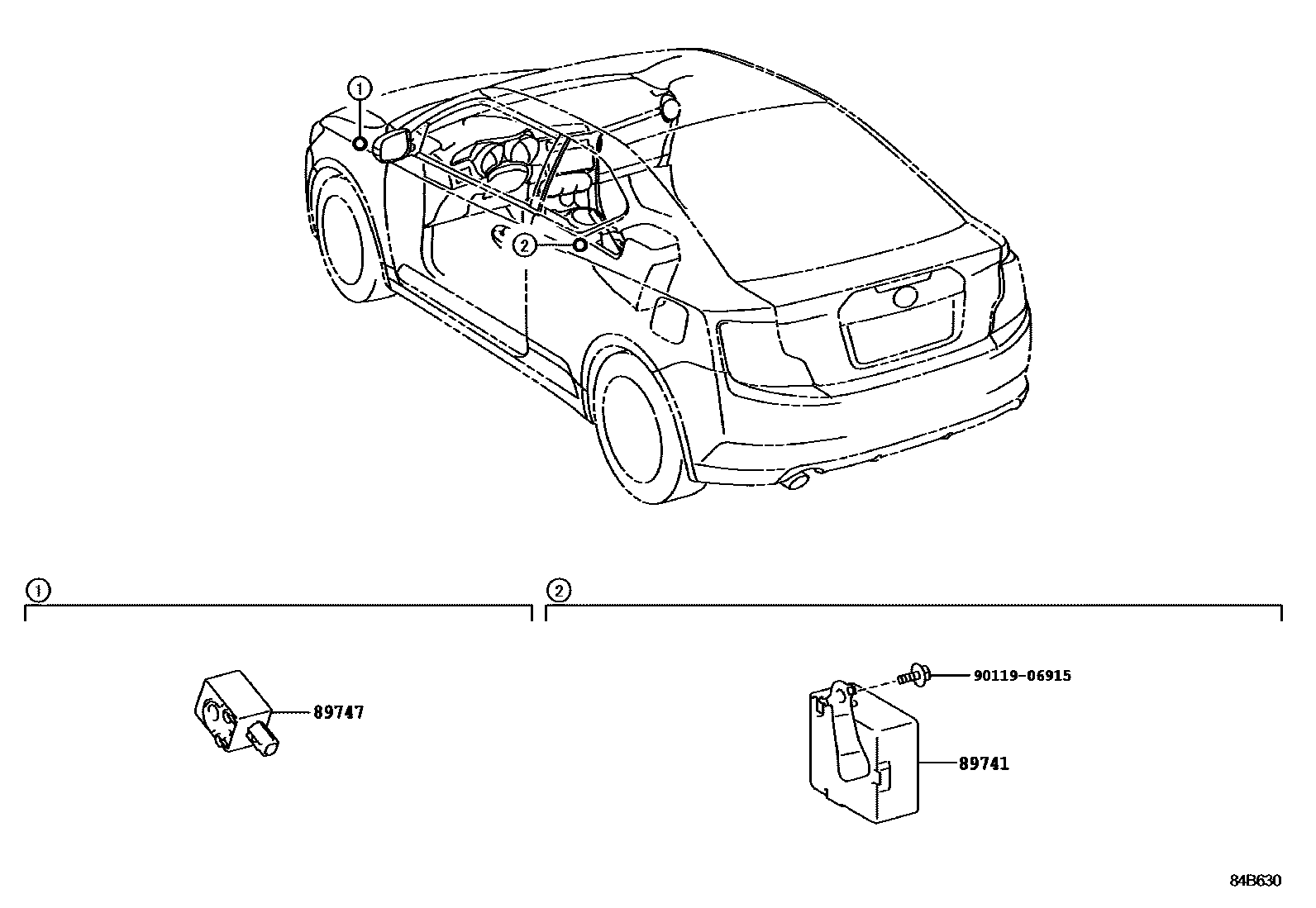

WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89741-21030iAGT20201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

main89741-21060iAGT20201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAGT20201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

main89747-30040iAGT20201305

9011906915

main90119-06915

3 parts on this diagram · 2 diagrams in section
