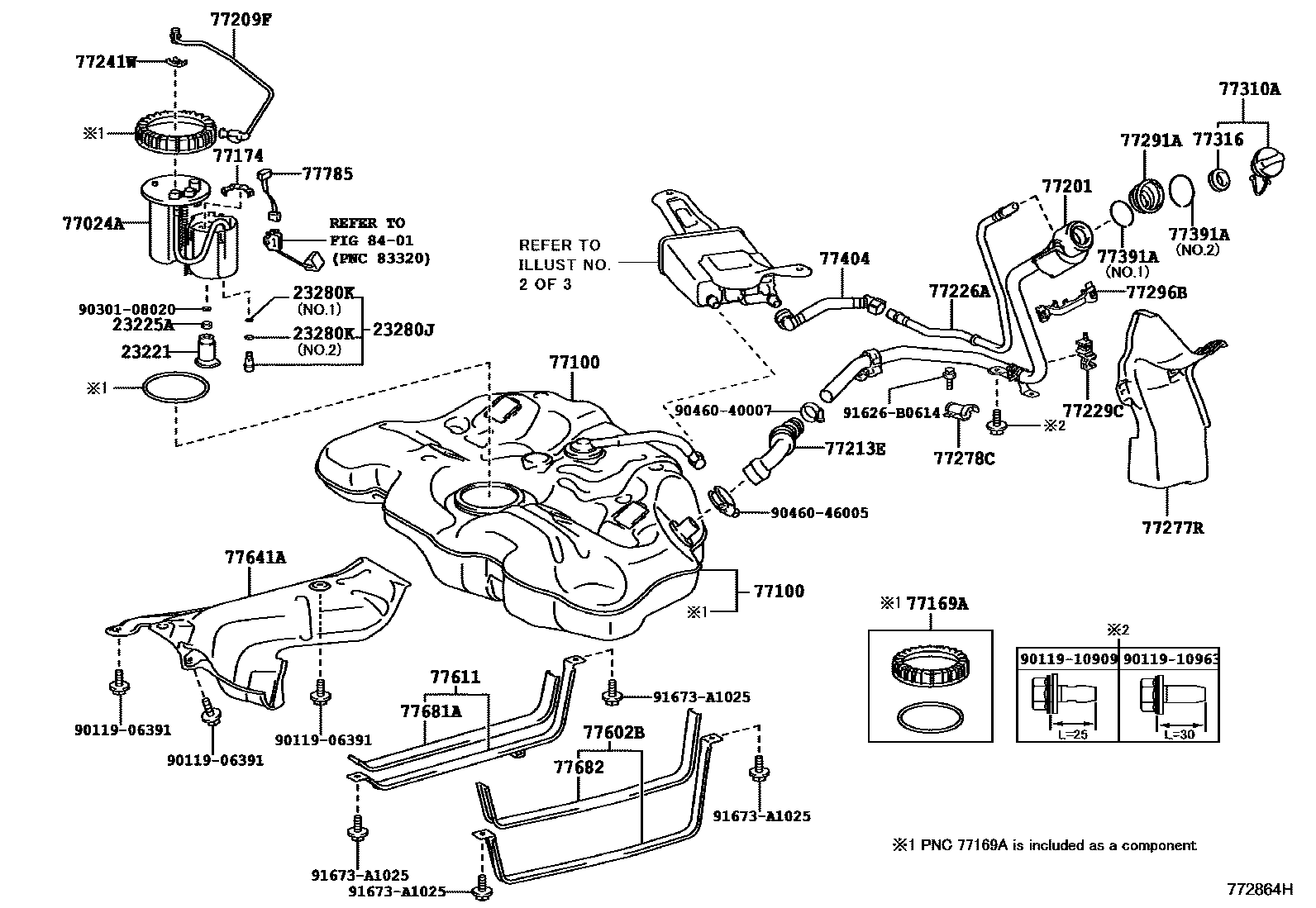

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77024APLATE SUB-ASSY, FUEL SUCTION
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77404HOSE SUB-ASSY, FUEL TANK VENT
77641APROTECTOR, FUEL TANK, NO.1
77681ASEAT, FUEL TANK BAND
77682SEAT, FUEL TANK BAND, LH
8401
9011906391
main90119-06391
9011910909
main90119-10909
9011910963
main90119-10963
9030108020
main90301-08020
9046040007
main90460-40007
9046046005
main90460-46005
91626B0614
main91626-B0614
91673A1025
main91673-A1025
