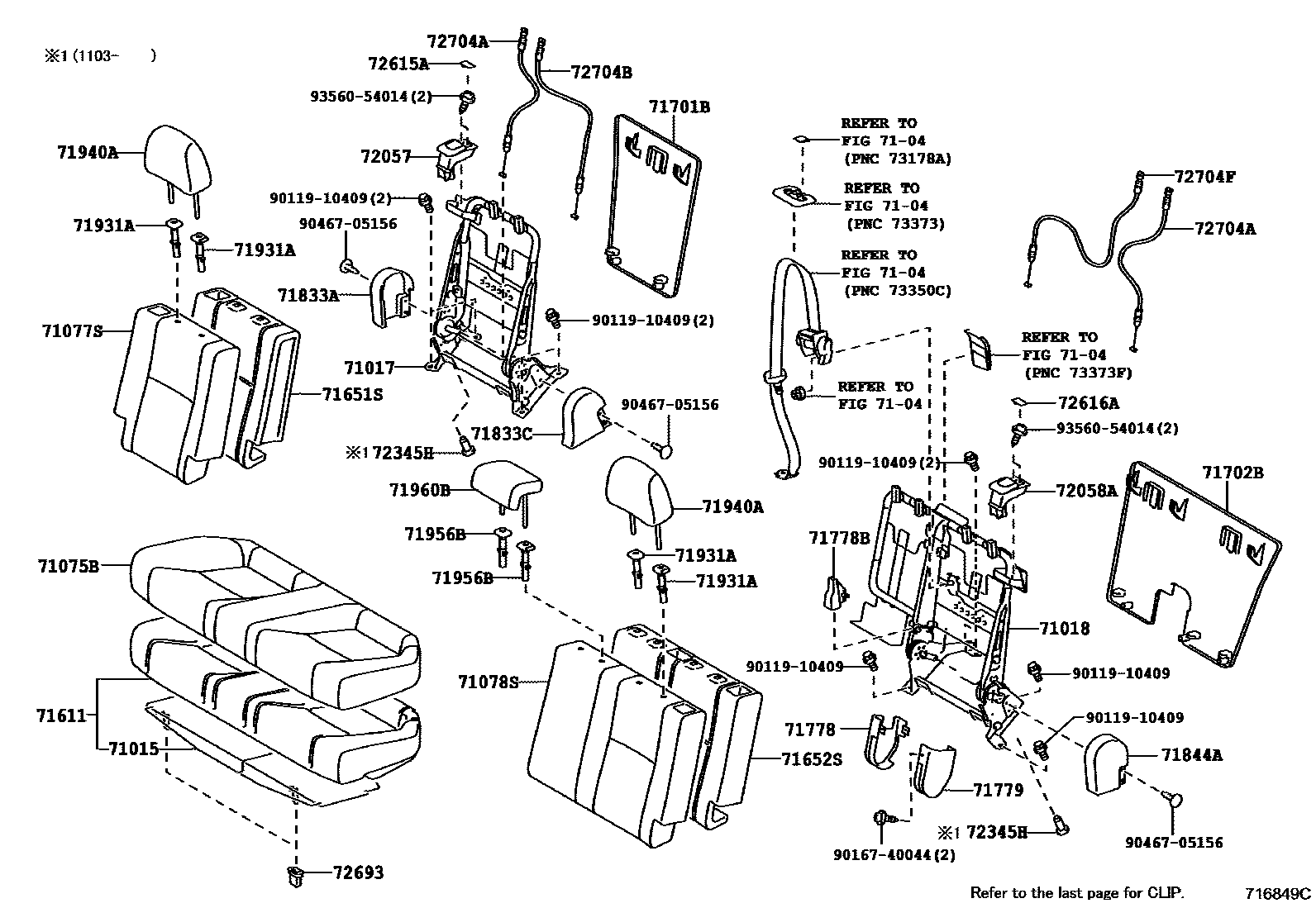

REAR SEAT & SEAT TRACK
71015FRAME SUB-ASSY, REAR SEAT CUSHION
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
MD.GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
MD.GRAY,TRIM1#
71611PAD, REAR SEAT CUSHION
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701BBOARD SUB-ASSY, REAR SEATBACK, RH
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
71778COVER, REAR SEAT SIDE HINGE MALE, RH
DK.GRAY,TRIM1#
71778BCOVER, REAR SEAT SIDE HINGE MALE, RH
DK.GRAY,TRIM1#
71779COVER, REAR SEAT SIDE HINGE MALE, LH
DK.GRAY,TRIM1#
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
DK.GRAY,TRIM1#
71833CCOVER, REAR SEAT RECLINING, NO.2 RH
DK.GRAY,TRIM1#
71844ACOVER, REAR SEAT RECLINING, NO.2 LH
DK.GRAY,TRIM1#
71931ASUPPORT, REAR SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
71956BSUPPORT, REAR SEAT HEADREST
71960BHEADREST ASSY, REAR SEAT, CENTER
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
DK.GRAY,TRIM1#
72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
DK.GRAY,TRIM1#
72345HCAP, SEAT STAND FRAME
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
72616ACOVER, REAR SEATBACK LOCK STRIKER, LH
72693HOOK, REAR SEAT CUSHION LOCK
72704ACABLE, REAR SEAT RECLINING CONTROL
72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2
72704FCABLE, REAR SEAT RECLINING CONTROL, NO.3
9011910409
main90119-10409
9016740044
main90167-40044
9046705156
main90467-05156
9356054014
main93560-54014
35 parts on this diagram · 2 diagrams in section
