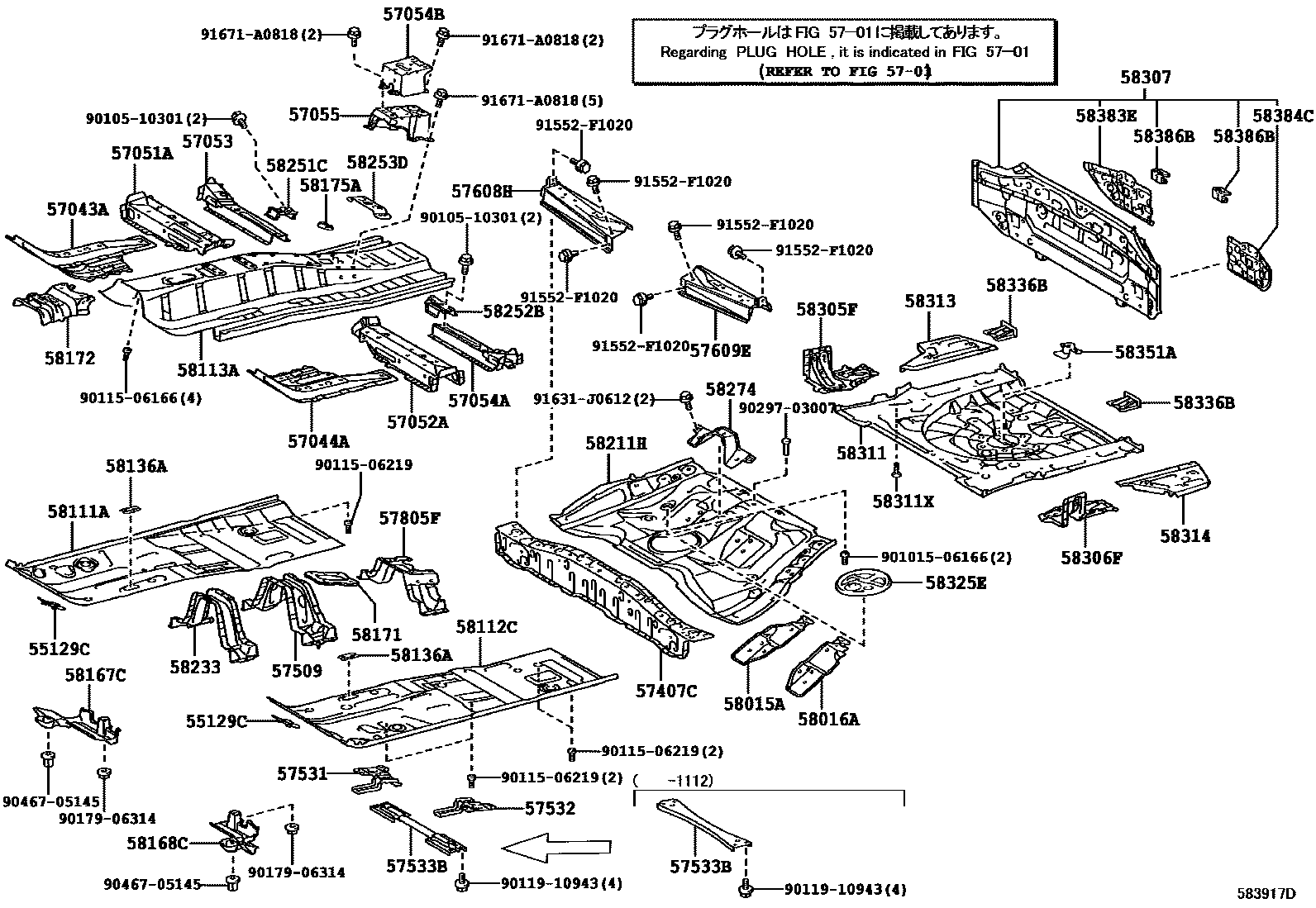

FLOOR PAN & LOWER BACK PANEL
55129CCOVER, DASH PANEL HOLE
RH
LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4
57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
57533BBRACE, FRONT FLOOR, CENTER
57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58167CCOVER, FRONT FLOOR, CENTER RH
58168CCOVER, FRONT FLOOR, CENTER LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58233BRACKET, EXHAUST PIPE MOUNTING
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58253DBRACKET, PARKING BRAKE CABLE
58274REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58311XBOLT, REAR FLOOR WELD
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58351ABRACKET, SPARE WHEEL CARRIER
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58386BBRACKET, REAR BUMPER COVER, NO.2
9010510301
main90105-10301
9011506166
main90115-06166
9011506219
main90115-06219
9011910943
main90119-10943
9017906314
main90179-06314
9029703007
main90297-03007
9046705145
main90467-05145
91552F1020
main91552-F1020
91631J0612
main91631-J0612
91671A0818
main91671-A0818
58 parts on this diagram · 1 diagram in section
