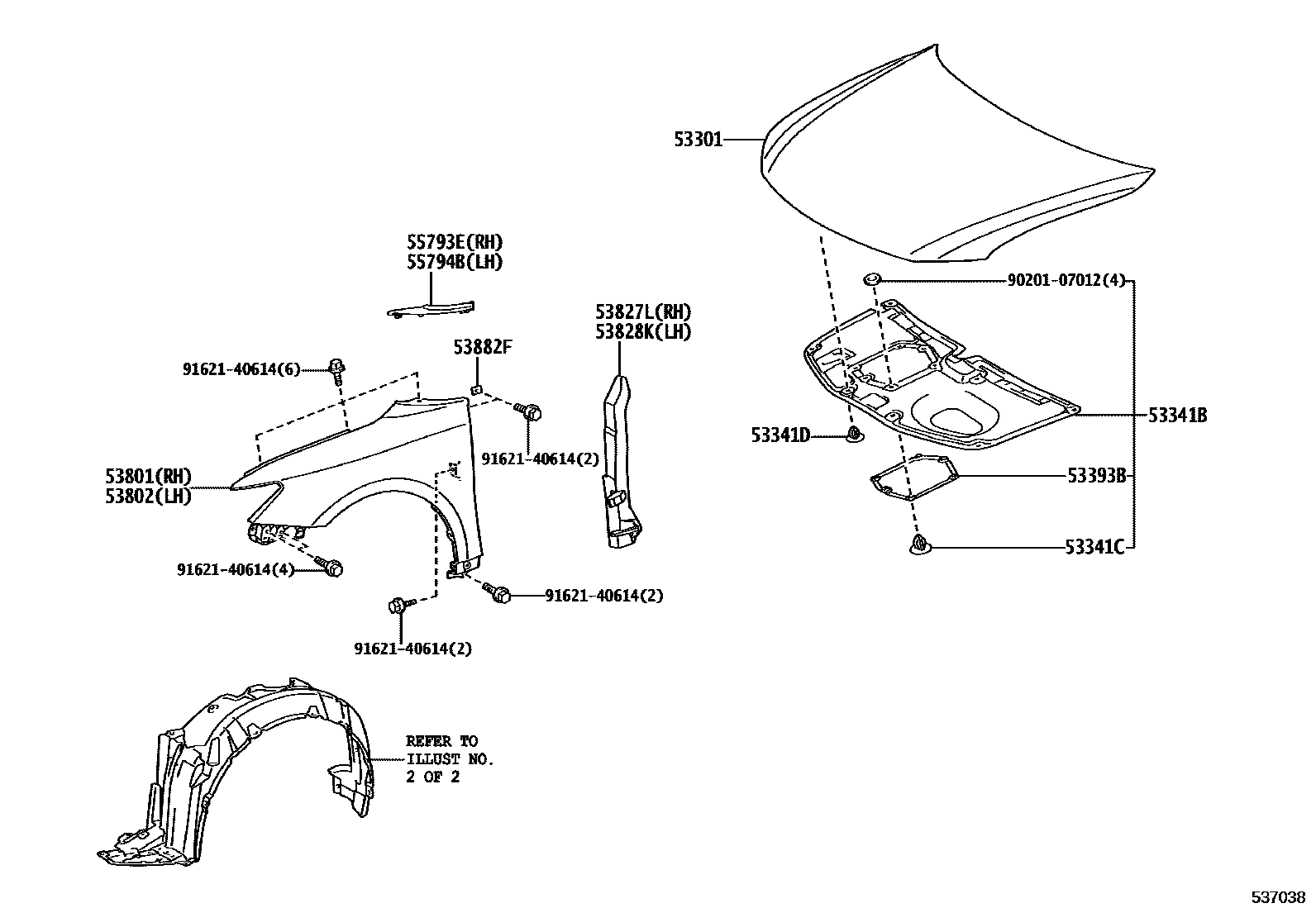

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-21080iAGT20..CND201008-201305

sub53301-21090

main53301-21090iAGT20..USA201008-201305

main53301-21100iAGT20..CND201305-201606

sub53301-21110

main53301-21110iAGT20..USA201305-201606

53341BINSULATOR, HOOD

main53341-21060iAGT20201008-201305

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iAGT20201008-201305

53341DCLIP(FOR HOOD INSULATER)

main90467-09050iAGT20201008-201305

53393BPROTECTOR, HOOD, FRONT

main53393-21010iAGT20201008-201305

53801FENDER SUB-ASSY, FRONT RH

main53801-21140iAGT20..USA201008-201606

main53811-21140iAGT20..CND201008-201606

53802FENDER SUB-ASSY, FRONT LH

main53802-21140iAGT20..USA201008-201606

main53812-21160iAGT20..CND201008-201606

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-21040iAGT20201008-201305

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-21040iAGT20201008-201305

53882FSEAL, FRONT FENDER

main53882-16030iAGT20201008-201305

55793ECOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-21030iAGT20201008-201305

55794BCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-21030iAGT20201008-201305

9020107012

main90201-07012

9162140614

main91621-40614

14 parts on this diagram · 2 diagrams in section
