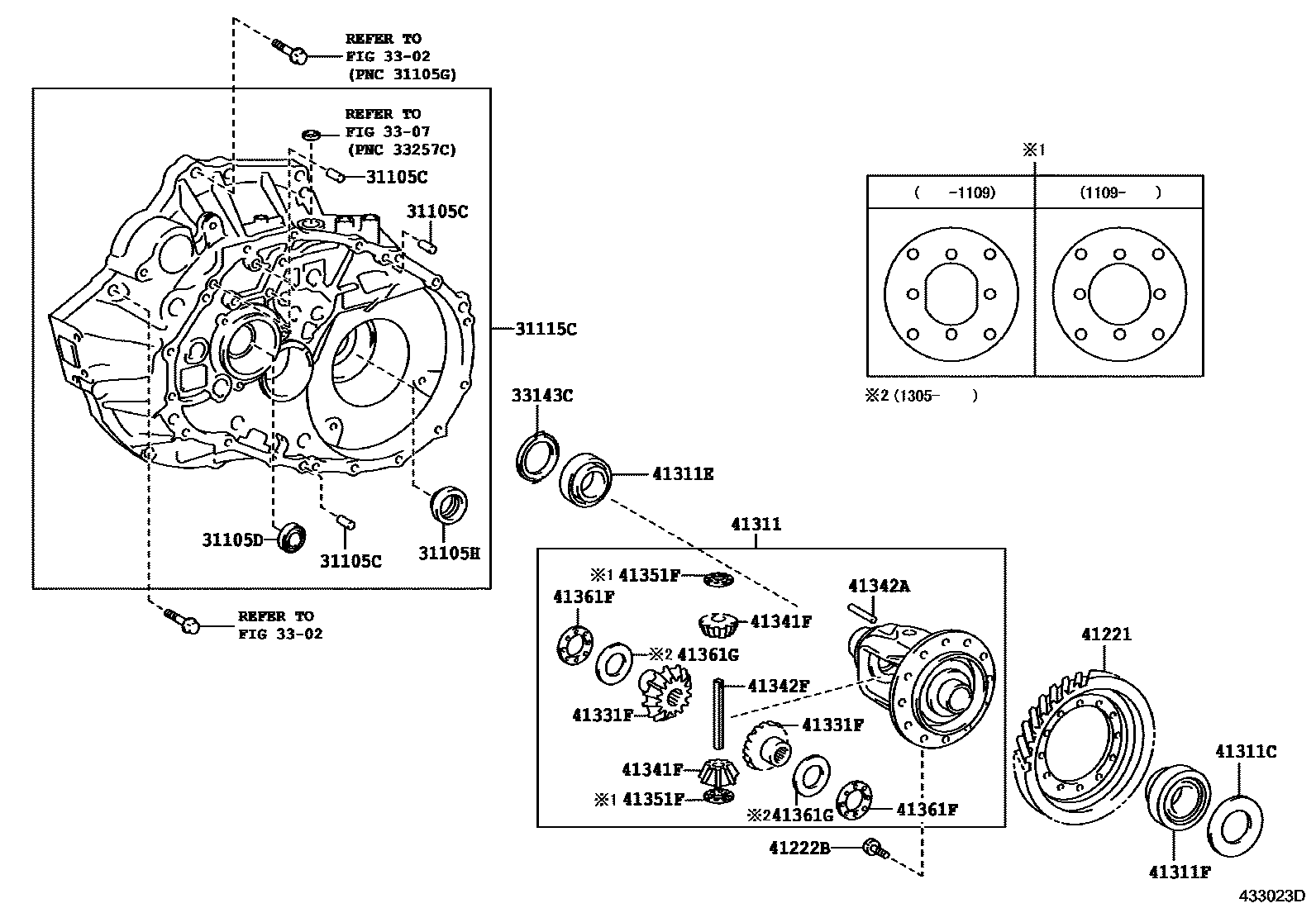

FRONT AXLE HOUSING & DIFFERENTIAL
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
3302
3307
33143CBAFFLE, FRONT DIFFERENTIAL OIL
41221GEAR, FRONT DIFFERENTIAL RING
*349
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
*335
*349
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
*335
*349
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
*349
*335
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
*349
*335
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
*349
20 parts on this diagram · 2 diagrams in section
