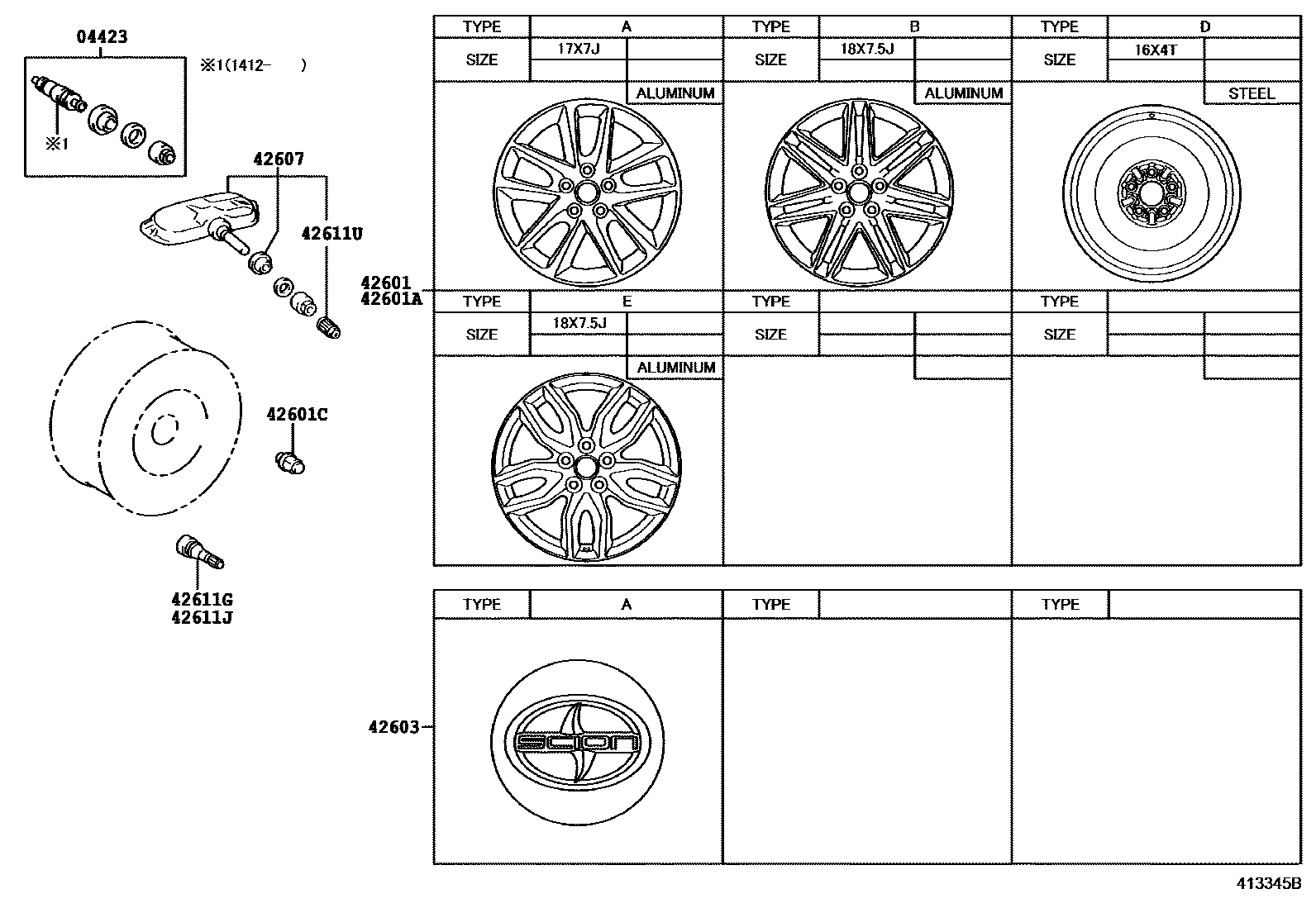

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X7J, #,TYPE A:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-P215/50R17 ALL SEASON ALUMINUM,TYPE A:REFER ILLUST.
18X7.5J, #,SILVER,TYPE B
18X7.5J, #,TIRE & DISC WHEEL-P225/45R18 ALL SEASON ALUMINUM,SILVER,TYPE B
18X7.5J, #,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X4T,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,SILVER,TYPE A
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-33012
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
9 parts on this diagram · 1 diagram in section
