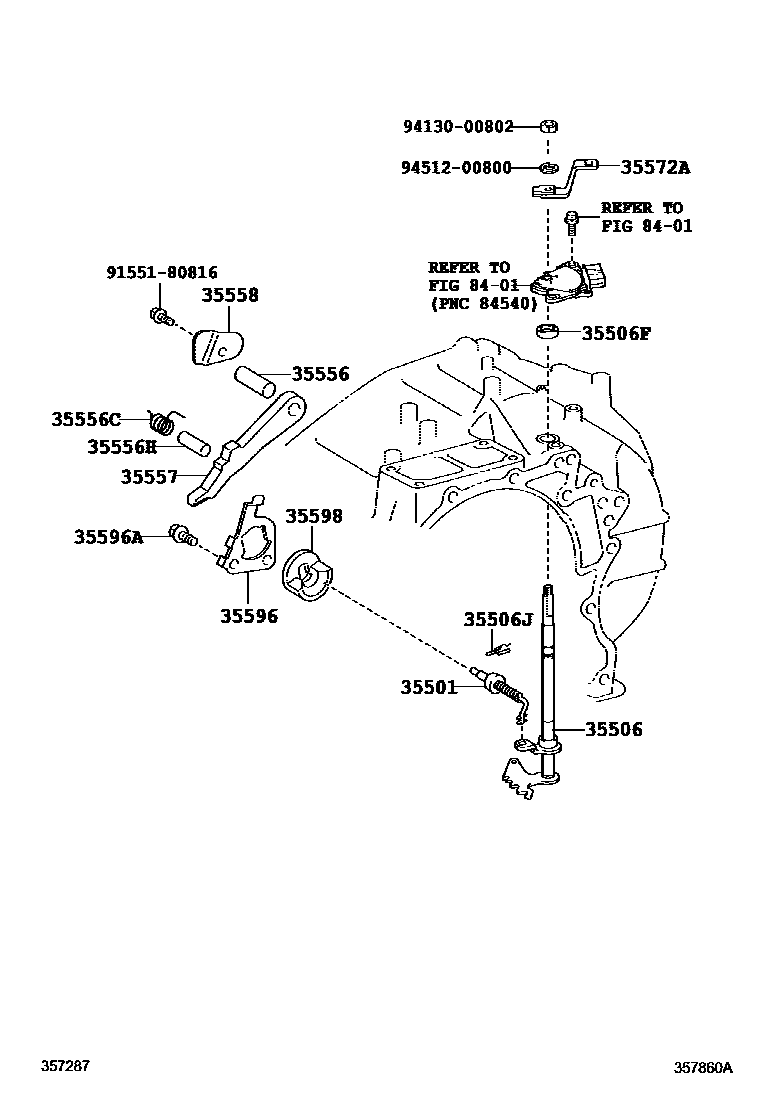

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-33020iAGT20..6FC¥1,010201008-201305

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33011iAGT20..6FC¥1,710201305

*349

main35506-33011iAGT20..6FC¥1,710201008-201305

main35506-73011iAGT20..6FC201305-201310

*335

sub35506-33011¥1,710

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAGT20..6FC¥270201008-201305

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09002iAGT20..6FC¥100201008-201305

35556SHAFT, PARKING LOCK PAWL

main35556-33010iAGT20..6FC¥460201305-201310

*335

main35556-33020iAGT20..6FC¥460201008-201305

main35556-33020iAGT20..6FC¥460201305

*349

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21008iAGT20..6FC¥140201008-201305

35556HSHAFT, PARKING LOCK PAWL

main35556-33030iAGT20..6FC¥220201008-201305

main35556-33030iAGT20..6FC¥220201305

*349

main35556-63010iAGT20..6FC¥260201305-201310

*335

35557PAWL, PARKING LOCK

main35557-73010iAGT20..6FC¥3,090201008-201305

35558CLAMP, PAWL SHAFT

main35558-33010iAGT20..6FC¥270201305-201310

*335

main35558-33020iAGT20..6FC¥270201008-201305

main35558-33020iAGT20..6FC¥270201305

*349

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iAGT20..6FC¥670201008-201305

35596PLATE, PAWL STOPPER

main35596-73010iAGT20..6FC¥400201008-201305

35596ABOLT (FOR PAWL STOPPER PLATE)

main91551-80816iAGT20..6FC¥80201008-201305

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-33010iAGT20..6FC¥990201008-201305

8401

9155180816

main91551-80816¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

17 parts on this diagram · 1 diagram in section
