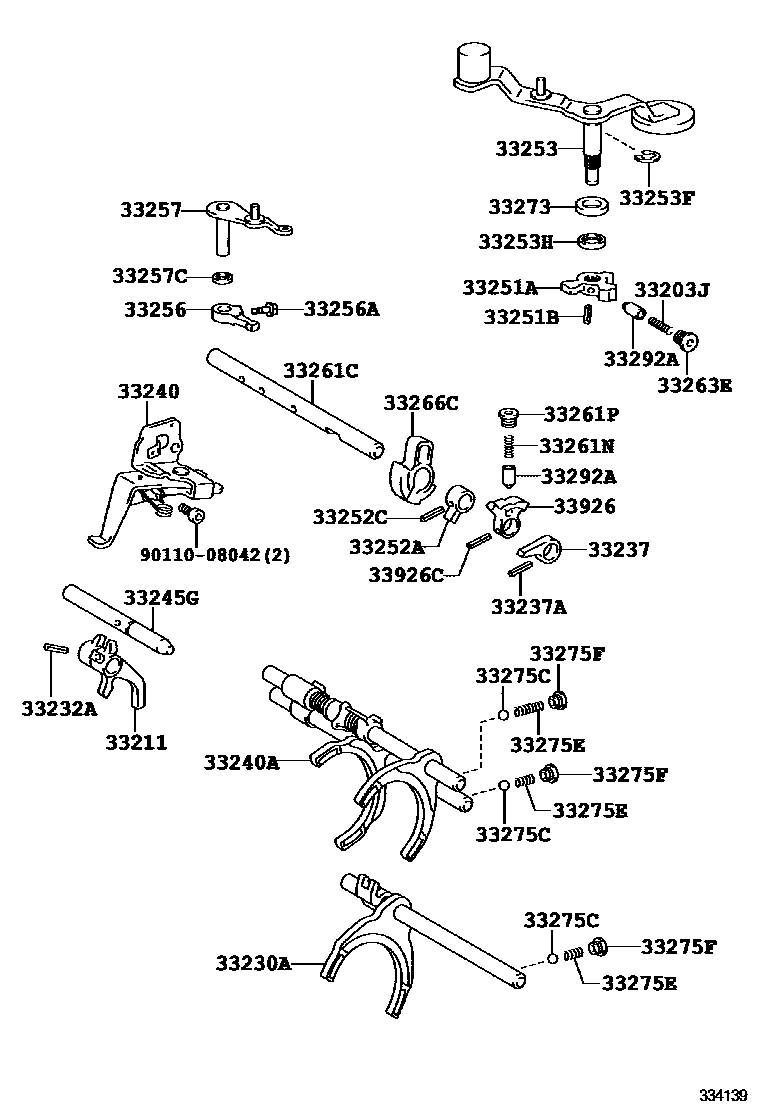

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33203JSPRING(FOR SHIFT LEVER SHAFT BALL)
33211FORK, REVERSE SHIFT
33230ASHAFT ASSY, GEAR SHIFT FORK, NO.1
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33237HEAD, RELEASE
33237APIN, SLOTTED SPRING (FOR RELEASE HEAD)
33240BRACKET ASSY, REVERSE SHIFT ARM
33240ASHAFT ASSY, GEAR SHIFT FORK, NO.2
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=28.0
33252ALEVER, SHIFT, INNER NO.2
33252CPIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2)
33253LEVER, SHIFT OUTER, NO.1
33253FRING, E(FOR SHIFT OUTER LEVER)
33253HSEAL, OIL(FOR SHIFT OUTER LEVER)
33256LEVER, SELECT INNER
33256ABOLT, SET (FOR SELECT INNER LEVER)
33257CSEAL, OIL(FOR OUTER SELECT LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33261NSPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT)
33261PPLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SHAFT)
33263EPLUG (FOR SHIFT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33292APIN, LOCK BALL
33926CPIN, SLOTTED SPRING(FOR SHIFT INNER LEVER)
9011008042
main90110-08042
33 parts on this diagram · 1 diagram in section
