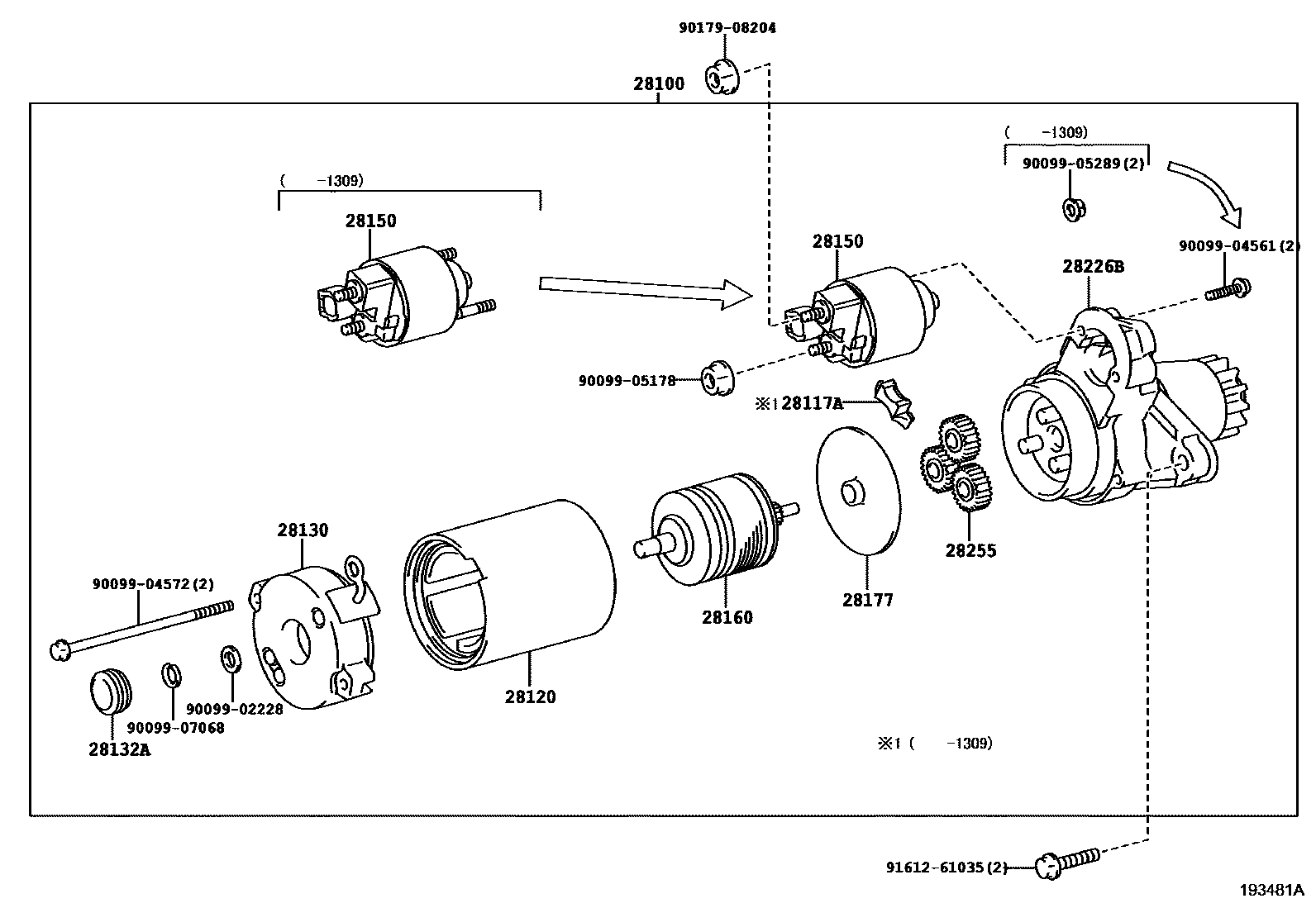

STARTER

28100STARTER ASSY

main28100-31102i2ARFE..AGT20201008-201308

12V 1.7KW

sub28100-36120

main28100-36120i2ARFE..AGT20201309

12V 1.7KW

28117ASEAL, RUBBER

main28117-28060i2ARFE..AGT20201008-201309

28120YOKE ASSY, STARTER

main28120-28060i2ARFE..AGT20201008-201305

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2ARFE..AGT20201008-201305

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2ARFE..AGT20201008-201305

28150SWITCH ASSY, MAGNET STARTER

main28150-31090i2ARFE..AGT20201112-201309

main28150-31100i2ARFE..AGT20201008-201112

sub28150-31090

main28226-36120i2ARFE..AGT20201309

28160ARMATURE ASSY, STARTER

main28160-28040i2ARFE..AGT20201008-201305

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2ARFE..AGT20201008-201305

28226BSTARTER KIT, REPAIR SERVICE

main28226-28041i2ARFE..AGT20201309

main28226-28060i2ARFE..AGT20201008-201309

28255GEAR, PLANET

main28255-20020i2ARFE..AGT20201008-201305

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009905289

main90099-05289

9009907068

main90099-07068

9017908204

main90179-08204

9161261035

main91612-61035

18 parts on this diagram · 1 diagram in section
