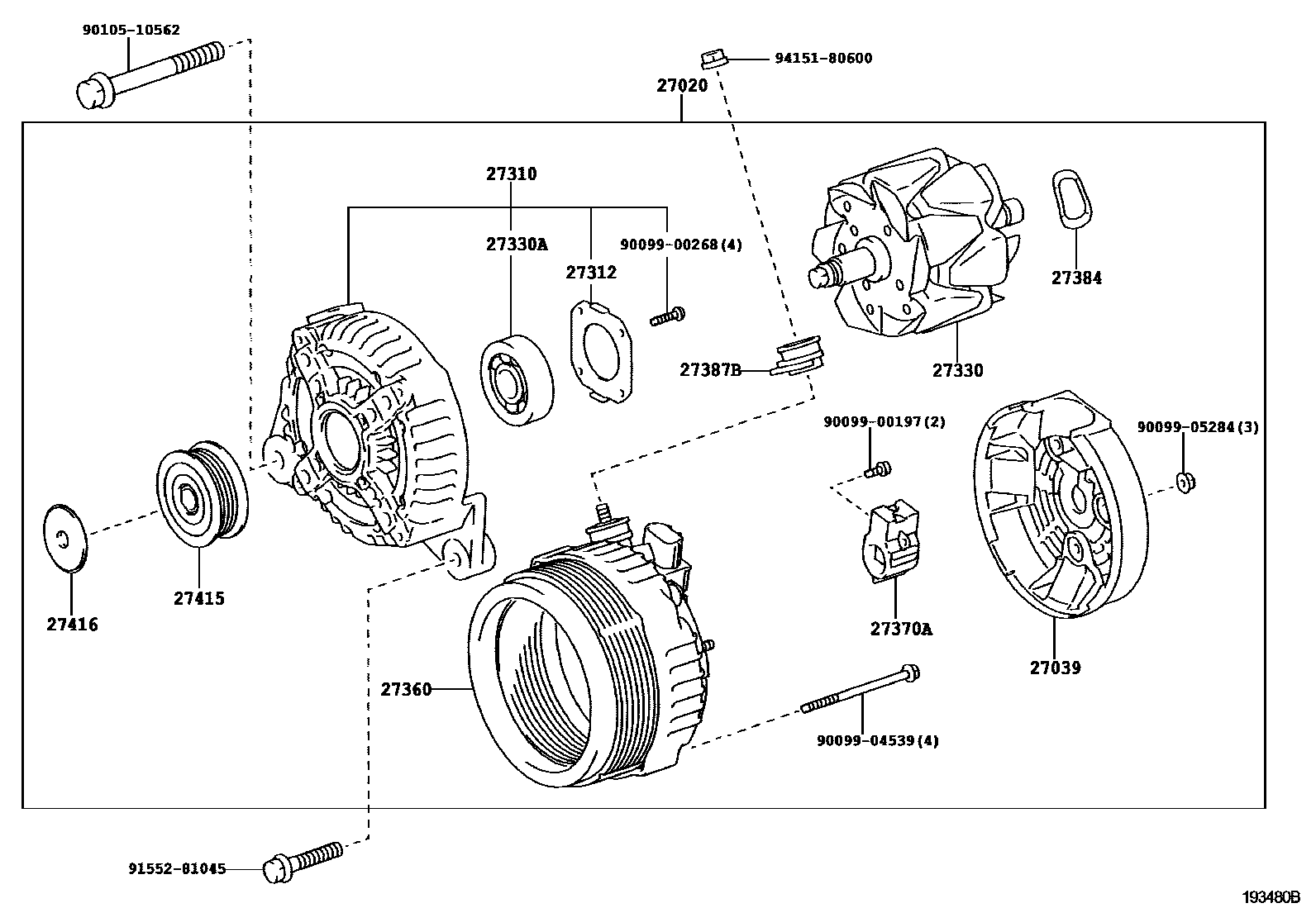

ALTERNATOR

27020ALTERNATOR ASSY

main27060-36010i2ARFE..AGT20201008-201209

12V 100A

sub27060-36011

main27060-36011i2ARFE..AGT20201210-201305

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-31390i2ARFE..AGT20201008-201305

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-36090i2ARFE..AGT20201008-201305

27312PLATE, RETAINER

main27312-72100i2ARFE..AGT20201008-201305

27330ROTOR ASSY, ALTERNATOR

main27330-30070i2ARFE..AGT20201008-201305

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10223i2ARFE..AGT20201008-201305

27360COIL ASSY, ALTERNATOR

main27360-36090i2ARFE..AGT20201008-201208

sub27360-36091

main27360-36091i2ARFE..AGT20201208-201305

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2ARFE..AGT20201008-201305

27384WASHER

main27384-50030i2ARFE..AGT20201008-201305

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2ARFE..AGT20201008-201305

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W020i2ARFE..AGT20201008-201307

sub27415-0W021

main27415-0W021i2ARFE..AGT20201308-201606

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ARFE..AGT20201008-201606

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9010510562

main90105-10562

9155281045

main91552-81045

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
