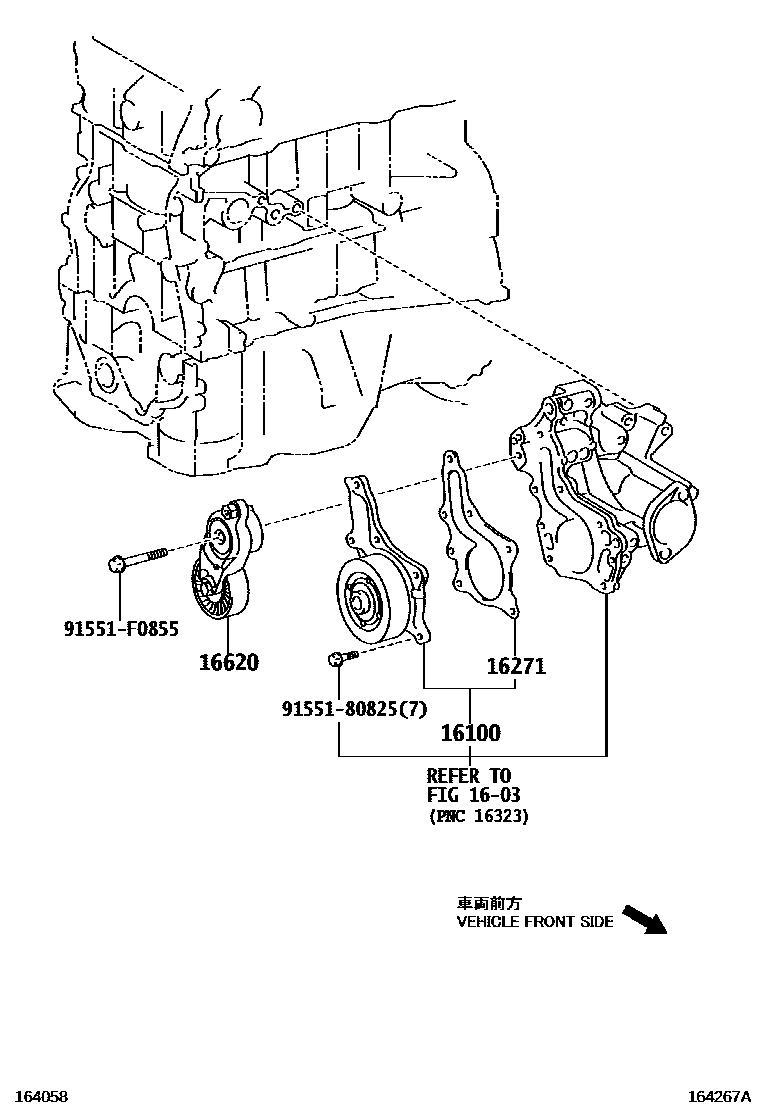

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-39515i2ARFE..AGT20201008-201305

sub16100-39516

16271GASKET, WATER PUMP

main16271-36010i2ARFE..AGT20201008-201305

16620TENSIONER ASSY, V-RIBBED BELT

main16620-36010i2ARFE..AGT20201008-201402

sub16620-36011

main16620-36011i2ARFE..AGT20201402-201509

sub16620-36012

main16620-36012i2ARFE..AGT20201510

sub16620-36013

9155180825

main91551-80825

91551F0855

main91551-F0855

6 parts on this diagram · 1 diagram in section
